Power Transformers
Review Power Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

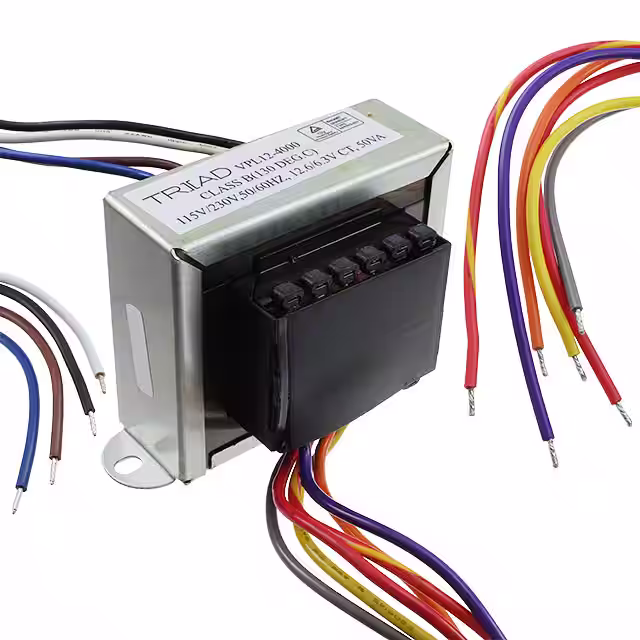

VPL12-4000PWR XFMR LAMINATED 50.0VA CHAS |
1,622 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | 12.6V | 3.97A | Dual | Dual | No | 50.0VA | Chassis Mount | Wire Leads | 57.15mm L x 101.6mm W | 65.09mm | 3500Vrms | 2.3 lbs (1 kg) |
|
VPS10-4300-BPWR XFMR LAMINATED 43VA CHAS MT |
1,858 |
|
Datasheet | Chassis Mount: World Series™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 8.6A, Series 4.3A | Dual | Dual | No | 43VA | Chassis Mount | Solder, Quick Connect | 58.67mm L x 50.80mm W | 68.33mm | 4000Vrms | 1.6 lbs (725.7 g) |
|
|
VPS12-3400-BPWR XFMR LAMINATED 43VA CHAS MT |
3,423 |
|
Datasheet | Chassis Mount: World Series™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 6.8A, Series 3.4A | Dual | Dual | No | 43VA | Chassis Mount | Solder, Quick Connect | 58.67mm L x 50.80mm W | 68.33mm | 4000Vrms | 1.6 lbs (725.7 g) |
|
|
VPS16-2700-BPWR XFMR LAMINATED 43VA CHAS MT |
2,544 |
|
Datasheet | Chassis Mount: World Series™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 5.4A, Series 2.7A | Dual | Dual | No | 43VA | Chassis Mount | Solder, Quick Connect | 58.67mm L x 50.80mm W | 54.10mm | 4000Vrms | 1.6 lbs (725.7 g) |
|
|
VPS20-2200-BPWR XFMR LAMINATED 43VA CHAS MT |
1,451 |
|
Datasheet | Chassis Mount: World Series™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 4.4A, Series 2.2A | Dual | Dual | No | 43VA | Chassis Mount | Solder, Quick Connect | 74.68mm L x 50.80mm W | 74.68mm | 4000Vrms | 1.6 lbs (725.7 g) |
|
|
VPS230-190-BPWR XFMR LAMINATED 43VA CHAS MT |
2,623 |
|
Datasheet | Chassis Mount: World Series™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 380mA, Series 190mA | Dual | Dual | No | 43VA | Chassis Mount | Solder, Quick Connect | 58.67mm L x 50.80mm W | 68.33mm | 4000Vrms | 1.6 lbs (725.7 g) |
|
|
VPS24-1800-BPWR XFMR LAMINATED 43VA CHAS MT |
3,762 |
|
Datasheet | Chassis Mount: World Series™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 3.6A, Series 1.8A | Dual | Dual | No | 43VA | Chassis Mount | Solder, Quick Connect | 58.67mm L x 50.80mm W | 68.33mm | 4000Vrms | 1.6 lbs (725.7 g) |
|
|
VPS28-1500-BPWR XFMR LAMINATED 43VA CHAS MT |
1,942 |
|
Datasheet | Chassis Mount: World Series™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 3A, Series 1.5A | Dual | Dual | No | 43VA | Chassis Mount | Solder, Quick Connect | 58.67mm L x 50.80mm W | 68.33mm | 4000Vrms | 1.6 lbs (725.7 g) |
|
|
VPS36-1200-BPWR XFMR LAMINATED 43VA CHAS MT |
1,423 |
|
Datasheet | Chassis Mount: World Series™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 2.4A, Series 1.2A | Dual | Dual | No | 43VA | Chassis Mount | Solder, Quick Connect | 58.67mm L x 50.80mm W | 68.33mm | 4000Vrms | 1.6 lbs (725.7 g) |
|

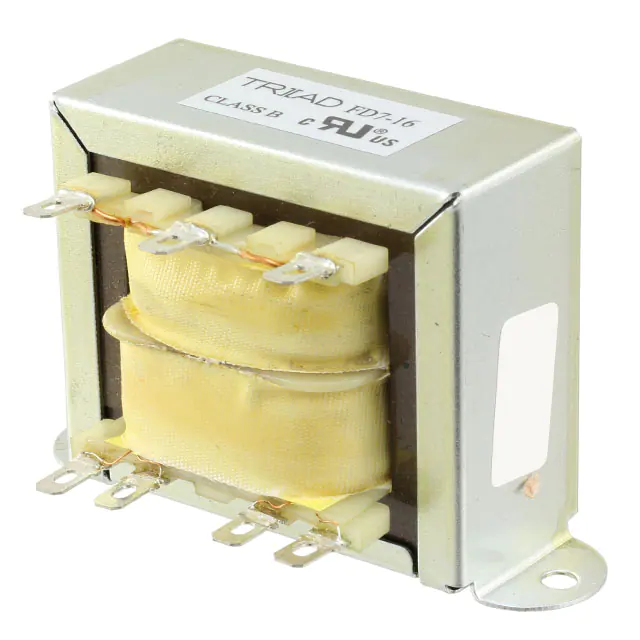

FD7-16PWR XFMR LAMINATED 56VA CHAS MT |
1,587 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 16V | 3.5A | Dual | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 93.65mm L x 46.02mm W | 57.15mm | 2500VAC | 1.7 lbs (771.1 g) |
Frequently Asked Questions
What are Power Transformers components used for?
Power Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
