Power Transformers
Review Power Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

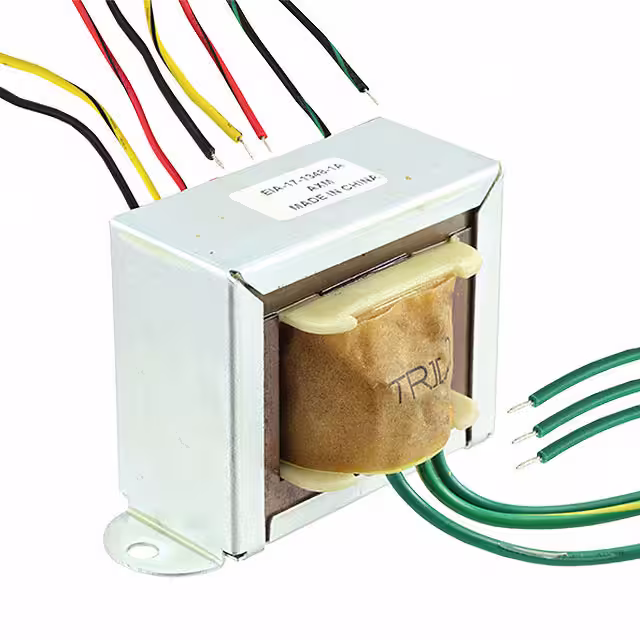

F-316XPWR XFMR LAMINATED 18.9VA CHAS |
2,352 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V, 230V | 6.3V | 3A | Dual | Single | Yes | 18.9VA | Chassis Mount | Wire Leads | 84.12mm L x 50.80mm W | 49.20mm | 1500Vrms | 1.3 lbs (589.7 g) |
|
FD6-12PWR XFMR LAMINATED 30VA CHAS MT |
3,466 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 12.6V | 2.5A | Dual | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 82.55mm L x 42.85mm W | 49.20mm | 2500VAC | 1.1 lbs (499 g) |
|
|
FD6-20PWR XFMR LAMINATED 30VA CHAS MT |
2,537 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 20V | 1.5A | Dual | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 82.55mm L x 42.85mm W | 49.20mm | 2500VAC | 1.1 lbs (499 g) |
|
|
FD6-48PWR XFMR LAMINATED 30VA CHAS MT |
1,288 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 48V | 630mA | Dual | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 82.55mm L x 42.85mm W | 49.20mm | 2500VAC | 1.1 lbs (499 g) |
|
|
FD6-56PWR XFMR LAMINATED 30VA CHAS MT |
1,829 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 56V | 540mA | Dual | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 82.55mm L x 42.85mm W | 49.20mm | 2500VAC | 1.1 lbs (499 g) |
|
FS36-1000PWR XFMR LAMINATED 36VA TH |
2,054 |
|
Datasheet | Split Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 2A, Series 1A | Dual | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 2500Vrms | 1.1 lbs (499 g) |
|
F7-10PWR XFMR LAMINATED 56VA CHAS MT |
4,552 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V | 10V | 5A | Single | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 93.65mm L x 46.02mm W | 57.15mm | 2500VAC | 1.7 lbs (771.1 g) |
|
F7-12PWR XFMR LAMINATED 56VA CHAS MT |
4,714 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V | 12.6V | 4A | Single | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 93.65mm L x 46.02mm W | 57.15mm | 2500VAC | 1.7 lbs (771.1 g) |
|
F7-120PWR XFMR LAMINATED 56VA CHAS MT |
4,914 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V | 120V | 500mA | Single | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 93.65mm L x 46.02mm W | 57.15mm | 2500VAC | 1.7 lbs (771.1 g) |
|
|
F7-28PWR XFMR LAMINATED 56VA CHAS MT |
1,430 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V | 28V | 2A | Single | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 93.65mm L x 46.02mm W | 57.15mm | 2500VAC | 1.7 lbs (771.1 g) |
Frequently Asked Questions
What are Power Transformers components used for?
Power Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
