Power Transformers
Review Power Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3FL30-200PWR XFMR LAMINATED 6VA TH |
394 |
|
Datasheet | 3FL | Bulk | Active | Laminated Core | 115V, 230V | Parallel 15V, Series 30V | Parallel 400mA, Series 200mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 47.60mm L x 39.60mm W | 21.60mm | 1500Vrms | - |
|
PL20-28-130BPWR XFMR LAMINATED 20VA TH |
117 |
|
Datasheet | PL20-xx-130B | Bulk | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 1.44A, Series 720mA | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.20mm L x 47.60mm W | 41.28mm | 3500Vrms | - |
|
|
PL20-16-130BPWR XFMR LAMINATED 20VA TH |
108 |
|
Datasheet | PL20-xx-130B | Bulk | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 2.5A, Series 1.25A | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.20mm L x 47.60mm W | 41.28mm | 3500Vrms | - |
|
|
3FL20-300PWR XFMR LAMINATED 6VA TH |
488 |
|
Datasheet | 3FL | Tube | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 600mA, Series 300mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 47.60mm L x 39.60mm W | 21.60mm | 1500Vrms | - |
|
|
PL20-24-130BPWR XFMR LAMINATED 20VA TH |
1,459 |
|
Datasheet | PL20-xx-130B | Bulk | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 1.66A, Series 830mA | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.20mm L x 47.60mm W | 41.28mm | 3500Vrms | - |
|

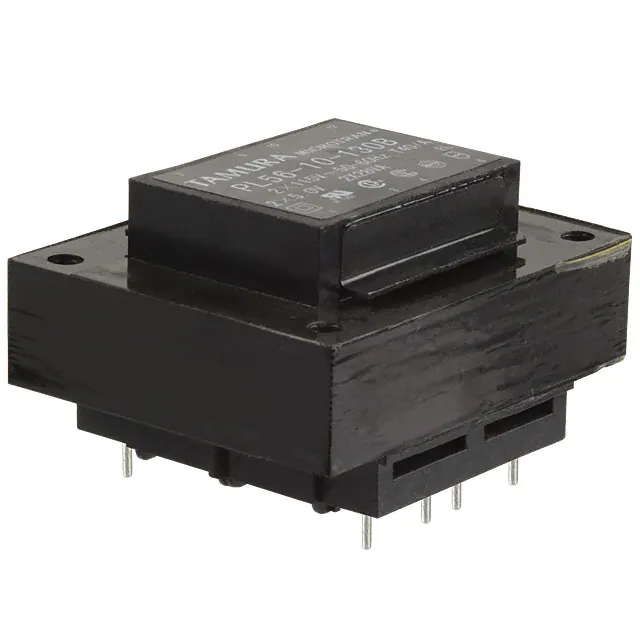

PL56-36-130BPWR XFMR LAMINATED 56VA TH |
139 |
|
Datasheet | PL56-xx-130B | Bulk | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 3.12A, Series 1.56A | Dual | Dual | No | 56VA | Through Hole | PC Pin | 76.20mm L x 64.00mm W | 48.50mm | 3500Vrms | - |
|
|
PL56-28-130BPWR XFMR LAMINATED 56VA TH |
126 |
|
Datasheet | PL56-xx-130B | Bulk | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 4A, Series 2A | Dual | Dual | No | 56VA | Through Hole | PC Pin | 76.20mm L x 64.00mm W | 48.50mm | 3500Vrms | - |
|
3FD-256PWR XFMR LAMINATED 1.1VA TH |
171 |
|
Datasheet | 3FD-2xx | Tube | Active | Laminated Core | 115V, 230V | Parallel 28V, Series 56V | Parallel 40mA, Series 20mA | Dual | Dual | No | 1.1VA | Through Hole | PC Pin | 35.56mm L x 31.00mm W | 38.00mm | 2500Vrms | - |
|
3FS-336PWR XFMR LAMINATED 2.4VA TH |
470 |
|
Datasheet | 3FS-3xx | Tube | Active | Laminated Core | 115V | Parallel 18V, Series 36V | Parallel 130mA, Series 65mA | Single | Dual | No | 2.4VA | Through Hole | PC Pin | 35.56mm L x 31.00mm W | 32.10mm | 2500Vrms | - |
|
|
3FS-320PWR XFMR LAMINATED 2.4VA TH |
275 |
|
Datasheet | 3FS-3xx | Tube | Active | Laminated Core | 115V | Parallel 10V, Series 20V | Parallel 240mA, Series 120mA | Single | Dual | No | 2.4VA | Through Hole | PC Pin | 35.56mm L x 31.00mm W | 32.10mm | 2500Vrms | - |
Frequently Asked Questions
What are Power Transformers components used for?
Power Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
