Power Transformers
Review Power Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
70010KPWR XFMR TOROIDAL 3.2VA TH |
1,066 |
|
Datasheet | 7XXXX | Tray | Active | Toroidal | 115V, 230V | Parallel 7V, Series 14V | Parallel 458mA, Series 229mA | Dual | Dual | No | 3.2VA | Through Hole | PC Pin | 44.70mm L x 44.70mm W | 19.50mm | 4000Vrms | 0.197 lb (89.36 g) |
|
62032PWR XFMR TOROIDAL 7VA CHAS MT |
4,620 |
|
Datasheet | Standard Mini | Tray | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 584mA, Series 292mA | Dual | Dual | No | 7VA | Chassis Mount | Wire Leads | - | - | 4000Vrms | 0.32 lb (145.15 g) |
|
62074PWR XFMR TOROIDAL 35VA CHAS MT |
3,018 |
|
Datasheet | Standard Mini | Tray | Active | Toroidal | 115V, 230V | Parallel 18V, Series 36V | Parallel 1.944A, Series 972mA | Dual | Dual | No | 35VA | Chassis Mount | Wire Leads | - | - | 4000Vrms | 1 lb (453.59 g) |
|
70003KPWR XFMR TOROIDAL 1.6VA TH |
2,195 |
|
Datasheet | 7XXXX | Tray | Active | Toroidal | 115V, 230V | Parallel 15V, Series 30V | Parallel 106mA, Series 53mA | Dual | Dual | No | 1.6VA | Through Hole | PC Pin | 39.60mm L x 39.60mm W | 18.50mm | 4000Vrms | 0.157 lb (71.21 g) |
|
|
70004KPWR XFMR TOROIDAL 1.6VA TH |
4,852 |
|
Datasheet | 7XXXX | Tray | Active | Toroidal | 115V, 230V | Parallel 18V, Series 36V | Parallel 88mA, Series 44mA | Dual | Dual | No | 1.6VA | Through Hole | PC Pin | 39.60mm L x 39.60mm W | 18.50mm | 4000Vrms | 0.157 lb (71.21 g) |
|

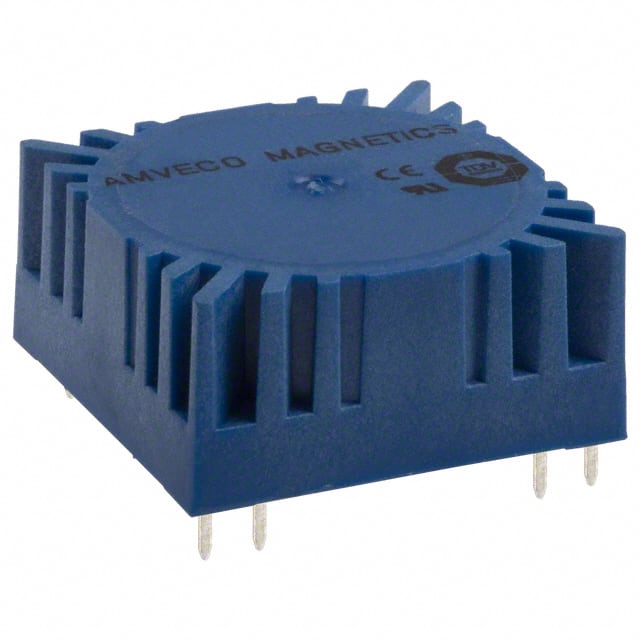

70005KPWR XFMR TOROIDAL 1.6VA TH |
2,057 |
|
Datasheet | 7XXXX | Tray | Active | Toroidal | 115V, 230V | Parallel 22V, Series 44V | Parallel 72mA, Series 36mA | Dual | Dual | No | 1.6VA | Through Hole | PC Pin | 39.60mm L x 39.60mm W | 18.50mm | 4000Vrms | 0.157 lb (71.21 g) |
|
70021KPWR XFMR TOROIDAL 5VA TH |
3,984 |
|
Datasheet | 7XXXX | Tray | Active | Toroidal | 115V, 230V | Parallel 9V, Series 18V | Parallel 556mA, Series 278mA | Dual | Dual | No | 5VA | Through Hole | PC Pin | 49.70mm L x 49.70mm W | 19.50mm | 4000Vrms | 0.254 lb (115.21 g) |
|
|
70013KPWR XFMR TOROIDAL 3.2VA TH |
1,506 |
|
Datasheet | 7XXXX | Tray | Active | Toroidal | 115V, 230V | Parallel 15V, Series 30V | Parallel 214mA, Series 107mA | Dual | Dual | No | 3.2VA | Through Hole | PC Pin | 44.70mm L x 44.70mm W | 19.50mm | 4000Vrms | 0.197 lb (89.36 g) |
|
|
70012KPWR XFMR TOROIDAL 3.2VA TH |
3,992 |
|
Datasheet | 7XXXX | Tray | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 266mA, Series 133mA | Dual | Dual | No | 3.2VA | Through Hole | PC Pin | 44.70mm L x 44.70mm W | 19.50mm | 4000Vrms | 0.197 lb (89.36 g) |
|
|
70031KPWR XFMR TOROIDAL 7VA TH |
2,577 |
|
Datasheet | 7XXXX | Tray | Active | Toroidal | 115V, 230V | Parallel 9V, Series 18V | Parallel 778mA, Series 389mA | Dual | Dual | No | 7VA | Through Hole | PC Pin | 49.70mm L x 49.70mm W | 23.10mm | 4000Vrms | 0.32 lb (145.15 g) |
Frequently Asked Questions
What are Power Transformers components used for?
Power Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
