Power Transformers
Review Power Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
10-25PWR XFMR LAMINATED 250VA CHAS MT |
4,173 |
|
Datasheet | - | Box | Active | Laminated Core | 105V, 115V, 125V | Parallel 5V, Series 10V | Parallel 50A, Series 25A | Single, Multiple Taps | Single, Multiple Taps | Yes | 250VA | Chassis Mount | Solder, Quick Connect | 114.30mm L x 95.30mm W | 95.30mm | 1500Vrms | 8.7 lbs (3.9 kg) |
|
80-4PWR XFMR LAMINATED 320VA CHAS MT |
4,449 |
|
Datasheet | - | Box | Active | Laminated Core | 105V, 115V, 125V | Parallel 40V, Series 80V | Parallel 8A, Series 4A | Single, Multiple Taps | Dual | Yes | 320VA | Chassis Mount | Solder, Quick Connect | 133.40mm L x 108.00mm W | 111.10mm | 1500Vrms | 13 lbs (5.9 kg) |
|

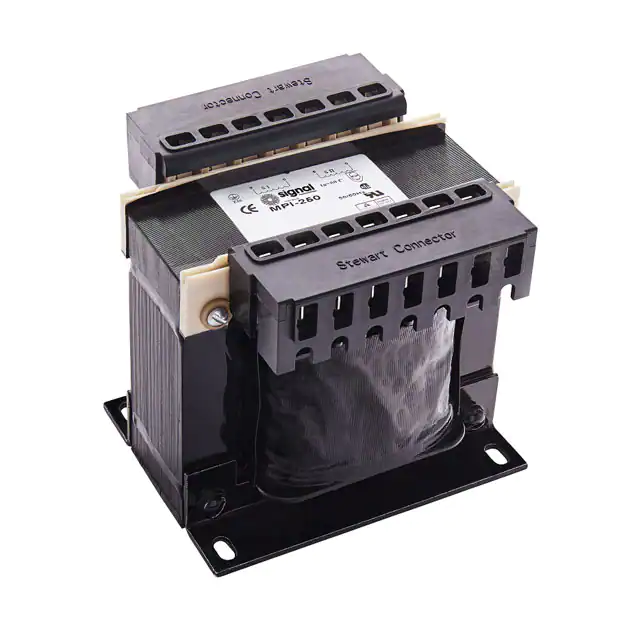

MPI-250-10PWR XFMR LAMINATED 250VA CHAS MT |
4,256 |
|
Datasheet | MPI | Bulk | Active | Laminated Core | 100V, 115V, 200V, 215V, 230V | Parallel 5V, Series 10V | Parallel 50A, Series 25A | Dual, Multiple Taps | Dual | No | 250VA | Chassis Mount | Terminal Block | 104.80mm L x 104.90mm W | 98.20mm | 4000Vrms | 6.8 lbs (3.1 kg) |
|
|
MPI-250-12PWR XFMR LAMINATED 250VA CHAS MT |
2,718 |
|
Datasheet | MPI | Bulk | Active | Laminated Core | 100V, 115V, 200V, 215V, 230V | Parallel 6V, Series 12V | Parallel 41.7A, Series 20.8A | Dual, Multiple Taps | Dual | No | 250VA | Chassis Mount | Terminal Block | 104.80mm L x 104.90mm W | 98.20mm | 4000Vrms | 6.8 lbs (3.1 kg) |
|
|
MPI-250-16PWR XFMR LAMINATED 250VA CHAS MT |
3,823 |
|
Datasheet | MPI | Bulk | Active | Laminated Core | 100V, 115V, 200V, 215V, 230V | Parallel 8V, Series 16V | Parallel 31.2A, Series 15.6A | Dual, Multiple Taps | Dual | No | 250VA | Chassis Mount | Terminal Block | 104.80mm L x 104.90mm W | 98.20mm | 4000Vrms | 6.8 lbs (3.1 kg) |
|
|
MPI-250-20PWR XFMR LAMINATED 250VA CHAS MT |
1,960 |
|
Datasheet | MPI | Bulk | Active | Laminated Core | 100V, 115V, 200V, 215V, 230V | Parallel 10V, Series 20V | Parallel 25A, Series 12.5A | Dual, Multiple Taps | Dual | No | 250VA | Chassis Mount | Terminal Block | 104.80mm L x 104.90mm W | 98.20mm | 4000Vrms | 6.8 lbs (3.1 kg) |
|
|
MPI-250-230PWR XFMR LAMINATED 250VA CHAS MT |
1,333 |
|
Datasheet | MPI | Bulk | Active | Laminated Core | 100V, 115V, 200V, 215V, 230V | Parallel 115V, Series 230V | Parallel 2.2A, Series 1.1A | Dual, Multiple Taps | Dual | No | 250VA | Chassis Mount | Terminal Block | 104.80mm L x 104.90mm W | 98.20mm | 4000Vrms | 6.8 lbs (3.1 kg) |
|
|
MPI-250-28PWR XFMR LAMINATED 250VA CHAS MT |
3,784 |
|
Datasheet | MPI | Bulk | Active | Laminated Core | 100V, 115V, 200V, 215V, 230V | Parallel 14V, Series 28V | Parallel 17.9A, Series 8.9A | Dual, Multiple Taps | Dual | No | 250VA | Chassis Mount | Terminal Block | 104.80mm L x 104.90mm W | 98.20mm | 4000Vrms | 6.8 lbs (3.1 kg) |
|
|
MPI-250-36PWR XFMR LAMINATED 250VA CHAS MT |
1,921 |
|
Datasheet | MPI | Bulk | Active | Laminated Core | 100V, 115V, 200V, 215V, 230V | Parallel 18V, Series 36V | Parallel 13.8A, Series 6.9A | Dual, Multiple Taps | Dual | No | 250VA | Chassis Mount | Terminal Block | 104.80mm L x 104.90mm W | 98.20mm | 4000Vrms | 6.8 lbs (3.1 kg) |
|
|
MPI-250-40PWR XFMR LAMINATED 250VA CHAS MT |
1,254 |
|
Datasheet | MPI | Bulk | Active | Laminated Core | 100V, 115V, 200V, 215V, 230V | Parallel 20V, Series 40V | Parallel 12.6A, Series 6.3A | Dual, Multiple Taps | Dual | No | 250VA | Chassis Mount | Terminal Block | 104.80mm L x 104.90mm W | 98.20mm | 4000Vrms | 6.8 lbs (3.1 kg) |
