Power Transformers
Review Power Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
34-265-LPIPWR XFMR SEMI-TORO 9VA TH |
3,625 |
|
Datasheet | LPI | Box | Active | Semi-Toroidal | 115V, 230V | Parallel 17V, Series 34V | Parallel 530mA, Series 265mA | Dual | Dual | No | 9VA | Through Hole | PC Pin | 60.20mm L x 42.10mm W | 27.40mm | 4000Vrms | 0.51 lb (231.33 g) |
|
IF-4-56PWR XFMR SEMI-TORO 4VA TH |
4,004 |
|
Datasheet | IF | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 28V, Series 56V | Parallel 140mA, Series 70mA | Dual | Dual | No | 4VA | Through Hole | PC Pin | 53.00mm L x 44.00mm W | 19.60mm | 4000Vrms | 0.34 lb (154.22 g) |
|

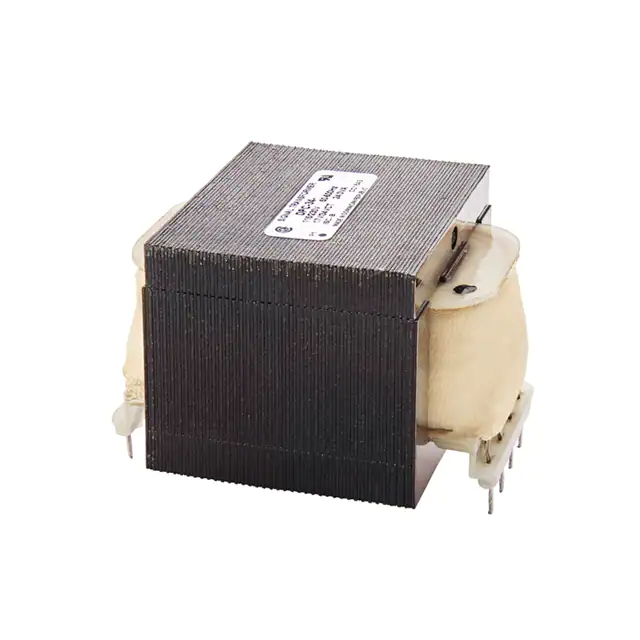

DPC-10-2400PWR XFMR LAMINATED 24VA TH |
4,691 |
|
Datasheet | DPC | Bulk | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 4.8A, Series 2.4A | Dual | Dual | No | 24VA | Through Hole | PC Pin | 41.30mm L x 57.20mm W | 34.93mm | 1500Vrms | 0.75 lb (340.19 g) |
|
A41-43-10PWR XFMR LAMINATED 43VA CHAS MT |
2,447 |
|
Datasheet | All-4-One™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 8.6A, Series 4.3A | Dual | Dual | No | 43VA | Chassis Mount | Solder, Quick Connect | 79.40mm L x 54.40mm W | 68.20mm | 4000Vrms | 1.6 lbs (725.7 g) |
|
|
DPC-120-200PWR XFMR LAMINATED 24VA TH |
1,160 |
|
Datasheet | DPC | Bulk | Active | Laminated Core | 115V, 230V | Parallel 60V, Series 120V | Parallel 400mA, Series 200mA | Dual | Dual | No | 24VA | Through Hole | PC Pin | 41.30mm L x 57.20mm W | 34.93mm | 1500Vrms | 0.75 lb (340.19 g) |
-Series.jpg "A41-43-28L")
|
A41-43-28LPWR XFMR LAMINATED 43VA CHAS MT |
1,462 |
|
Datasheet | All-4-One™ | Box | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 3A, Series 1.5A | Dual | Dual | No | 43VA | Chassis Mount | Wire Leads | 79.40mm L x 54.40mm W | 68.20mm | 4000Vrms | 1.6 lbs (725.7 g) |
|
|
IF-4-230PWR XFMR SEMI-TORO 4VA TH |
3,324 |
|
Datasheet | IF | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 115V, Series 230V | Parallel 36mA, Series 18mA | Dual | Dual | No | 4VA | Through Hole | PC Pin | 53.00mm L x 44.00mm W | 19.60mm | 4000Vrms | 0.34 lb (154.22 g) |
|
|
IF-6-34PWR XFMR SEMI-TORO 6VA TH |
4,686 |
|
Datasheet | IF | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 17V, Series 34V | Parallel 360mA, Series 180mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 53.00mm L x 44.00mm W | 22.60mm | 4000Vrms | 0.45 lb (204.12 g) |
|
241-7-12PWR XFMR LAMINATED 56VA CHAS MT |
2,126 |
|
Datasheet | Two-4-One™ | Box | Active | Laminated Core | 115V | 12.6V | 4A | Single | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect | 93.70mm L x 49.20mm W | 57.80mm | 2500Vrms | 1.7 lbs (771.1 g) |
|
|
241-7-20PWR XFMR LAMINATED 56VA CHAS MT |
4,922 |
|
Datasheet | Two-4-One™ | Box | Active | Laminated Core | 115V | 20V | 2.8A | Single | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect | 93.70mm L x 49.20mm W | 57.80mm | 2500Vrms | 1.7 lbs (771.1 g) |
Frequently Asked Questions
What are Power Transformers components used for?
Power Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
