Power Transformers
Review Power Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
241-8-120LPWR XFMR LAMINATED 100VA CHAS MT |
2,253 |
|
Datasheet | Two-4-One™ | Bulk | Active | Laminated Core | 115V | 120V | 850mA | Single | Single | Yes | 100VA | Chassis Mount | Wire Leads | 102.40mm L x 58.50mm W | 67.70mm | 2500Vrms | 2.8 lbs (1.3 kg) |
|
40-300-LPIPWR XFMR SEMI-TORO 12VA TH |
3,753 |
|
Datasheet | LPI | Box | Active | Semi-Toroidal | 115V, 230V | Parallel 20V, Series 40V | Parallel 600mA, Series 300mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 66.80mm L x 55.60mm W | 26.60mm | 4000Vrms | 0.75 lb (340.19 g) |
|
LP-12-3800PWR XFMR SEMI-TORO 48VA TH |
4,951 |
|
Datasheet | LP | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 7.6A, Series 3.8A | Dual | Dual | No | 48VA | Through Hole | PC Pin | 79.20mm L x 63.50mm W | 34.90mm | 1500Vrms | 1.4 lbs (635 g) |
|
40-450-LPIPWR XFMR SEMI-TORO 18VA TH |
3,909 |
|
Datasheet | LPI | Box | Active | Semi-Toroidal | 115V, 230V | Parallel 20V, Series 40V | Parallel 900mA, Series 450mA | Dual | Dual | No | 18VA | Through Hole | PC Pin | 66.80mm L x 55.60mm W | 30.00mm | 4000Vrms | 0.95 lb (430.91 g) |
|

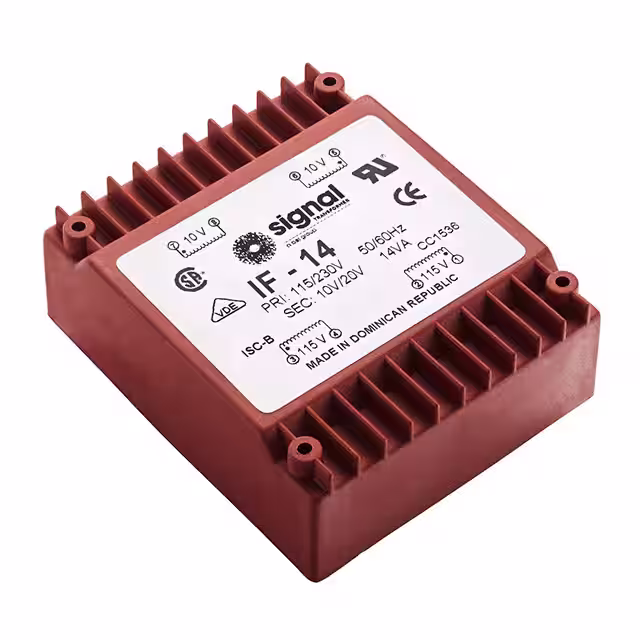

IF-14-24PWR XFMR SEMI-TORO 14VA TH |
3,241 |
|
Datasheet | IF | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 1.2A, Series 600mA | Dual | Dual | No | 14VA | Through Hole | PC Pin | 67.60mm L x 57.00mm W | 24.30mm | 4000Vrms | 0.75 lb (340.19 g) |
-Series.jpg "A41-80-24L")
|
A41-80-24LPWR XFMR LAMINATED 80VA CHAS MT |
3,242 |
|
Datasheet | All-4-One™ | Box | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 6.6A, Series 3.3A | Dual | Dual | No | 80VA | Chassis Mount | Wire Leads | 63.50mm L x 64.30mm W | 76.20mm | 4000Vrms | 2.8 lbs (1.3 kg) |
|
A41-130-36PWR XFMR LAMINATED 130VA CHAS MT |
2,061 |
|
Datasheet | All-4-One™ | Box | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 7.2A, Series 3.6A | Dual | Dual | No | 130VA | Chassis Mount | Solder, Quick Connect | 71.40mm L x 76.20mm W | 85.70mm | 4000Vrms | 4.1 lbs (1.9 kg) |
|
|
A41-130-12PWR XFMR LAMINATED 130VA CHAS MT |
2,348 |
|
Datasheet | All-4-One™ | Box | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 20.6A, Series 10.3A | Dual | Dual | No | 130VA | Chassis Mount | Solder, Quick Connect | 71.40mm L x 76.20mm W | 85.70mm | 4000Vrms | 4.1 lbs (1.9 kg) |
|
80-1PWR XFMR LAMINATED 80VA CHAS MT |
2,147 |
|
Datasheet | - | Box | Active | Laminated Core | 105V, 115V, 125V | Parallel 40V, Series 80V | Parallel 2A, Series 1A | Single, Multiple Taps | Dual | Yes | 80VA | Chassis Mount | Solder, Quick Connect | 85.70mm L x 77.70mm W | 71.40mm | 1500Vrms | 4 lbs (1.8 kg) |
|
|
A41-175-20PWR XFMR LAMINATED 175VA CHAS MT |
1,269 |
|
Datasheet | All-4-One™ | Box | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 17.6A, Series 8.8A | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.40mm L x 79.70mm W | 95.30mm | 4000Vrms | 5.5 lbs (2.5 kg) |
Frequently Asked Questions
What are Power Transformers components used for?
Power Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
