Power Transformers
Review Power Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PC-12-350PWR XFMR LAMINATED 4.4VA TH |
2,661 |
|
Datasheet | PC | Box | Active | Laminated Core | 115V | Parallel 6.3V, Series 12.6V | Parallel 700mA, Series 350mA | Single | Dual | No | 4.4VA | Through Hole | PC Pin | 41.30mm L x 31.80mm W | 34.92mm | 1500Vrms | 0.313 lb (141.97 g) |
|

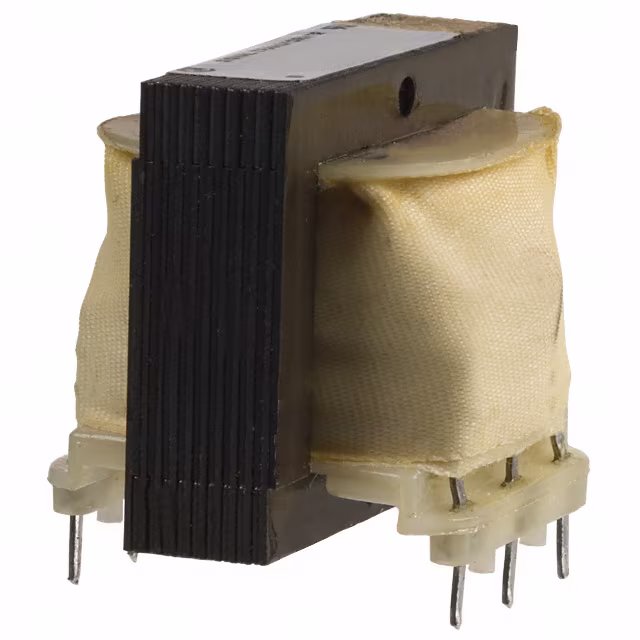

PC-12-100PWR XFMR LAMINATED 1.2VA TH |
100 |
|
Datasheet | PC | Box | Active | Laminated Core | 115V | Parallel 6.3V, Series 12.6V | Parallel 200mA, Series 100mA | Single | Dual | No | 1.2VA | Through Hole | PC Pin | 34.90mm L x 28.60mm W | 30.15mm | 1500Vrms | 0.188 lb (85.28 g) |
|
DPC-34-125PWR XFMR LAMINATED 4.4VA TH |
1,313 |
|
Datasheet | DPC | Box | Active | Laminated Core | 115V, 230V | Parallel 17V, Series 34V | Parallel 250mA, Series 125mA | Dual | Dual | No | 4.4VA | Through Hole | PC Pin | 41.30mm L x 31.80mm W | 34.92mm | 1500Vrms | 0.313 lb (141.97 g) |
|
241-6-24PWR XFMR LAMINATED 30VA CHAS MT |
3,171 |
|
Datasheet | Two-4-One™ | Box | Active | Laminated Core | 115V | 24V | 1.25A | Single | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect | 82.60mm L x 44.30mm W | 49.80mm | 2500Vrms | 1.1 lbs (499 g) |
|
DST-6-20PWR XFMR LAMINATED 20VA TH |
3,563 |
|
Datasheet | DST | Box | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 2A, Series 1A | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.20mm L x 47.60mm W | 36.90mm | 2500Vrms | 0.8 lb (362.87 g) |
|
ST-6-16PWR XFMR LAMINATED 20VA TH |
1,730 |
|
Datasheet | ST | Box | Active | Laminated Core | 115V | Parallel 8V, Series 16V | Parallel 2.5A, Series 1.25A | Single | Dual | No | 20VA | Through Hole | PC Pin | 57.20mm L x 47.60mm W | 36.90mm | 2500Vrms | 0.8 lb (362.87 g) |
|
LP-20-600PWR XFMR SEMI-TORO 12VA TH |
3,040 |
|
Datasheet | LP | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 10V, Series 20V | Parallel 1.2A, Series 600mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 63.50mm L x 50.80mm W | 27.10mm | 1500Vrms | 0.688 lb (312.07 g) |
|
|
241-6-20PWR XFMR LAMINATED 30VA CHAS MT |
3,247 |
|
Datasheet | Two-4-One™ | Box | Active | Laminated Core | 115V | 20V | 1.5A | Single | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect | 82.60mm L x 44.30mm W | 49.80mm | 2500Vrms | 1.1 lbs (499 g) |
|
DPC-24-1000PWR XFMR LAMINATED 24VA TH |
1,408 |
|
Datasheet | DPC | Box | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 2A, Series 1A | Dual | Dual | No | 24VA | Through Hole | PC Pin | 41.30mm L x 57.20mm W | 34.93mm | 1500Vrms | 0.75 lb (340.19 g) |
|
|
DPC-28-800PWR XFMR LAMINATED 24VA TH |
2,424 |
|
Datasheet | DPC | Box | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 1.6A, Series 800mA | Dual | Dual | No | 24VA | Through Hole | PC Pin | 41.30mm L x 57.20mm W | 34.93mm | 1500Vrms | 0.75 lb (340.19 g) |
Frequently Asked Questions
What are Power Transformers components used for?
Power Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
