Power Transformers
Review Power Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PC-24-180B18PWR XFMR LAMINATED 4.4VA TH |
4,330 |
|
Datasheet | PC Plug-In | Bulk | Active | Laminated Core | 115V | Parallel 12V, Series 24V | Parallel 360mA, Series 180mA | Single | Dual | No | 4.4VA | Through Hole | PC Pin | 41.28mm L x 31.75mm W | 34.93mm | 1500Vrms | 0.313 lb (141.97 g) |
|
|
DST4-36B26PWR XFMR LAMINATED 6VA TH |
1,986 |
|
Datasheet | Split Bobbin Plug-In | Bulk | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 340mA, Series 170mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 41.40mm L x 33.27mm W | 33.27mm | 2500Vrms | 0.44 lb (199.58 g) |
|

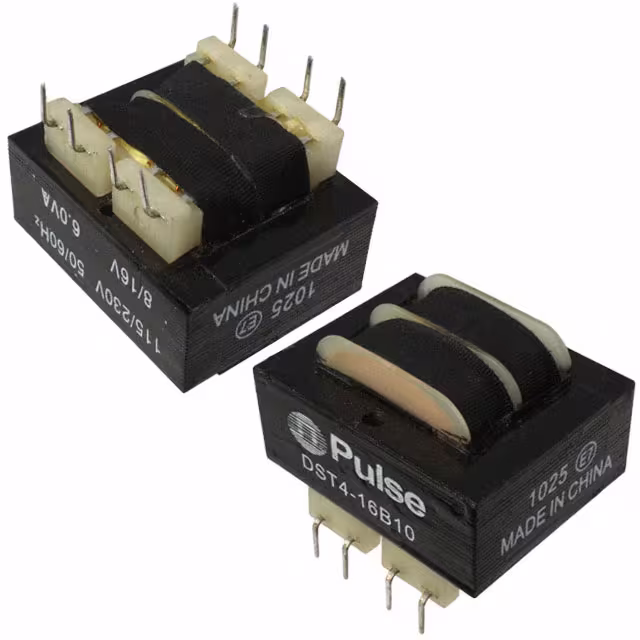

DST4-16B10PWR XFMR LAMINATED 6VA TH |
3,940 |
|
Datasheet | Split Bobbin Plug-In | Bulk | Obsolete | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 800mA, Series 400mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 41.40mm L x 33.27mm W | 33.27mm | 2500Vrms | 0.44 lb (199.58 g) |
|
|
LP28-90B115PWR XFMR SEMI-TORO 2VA TH |
4,743 |
|
Datasheet | Low Profile Plug-In | Bulk | Obsolete | Semi-Toroidal | - | Parallel 14V, Series 28V | Parallel 180mA, Series 90mA | Dual | Dual | No | 2VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 16.51mm | 1500Vrms | 0.313 lb (141.97 g) |
|
|
PC-16-1500B12PWR XFMR LAMINATED 24VA TH |
2,894 |
|
Datasheet | PC Plug-In | Bulk | Obsolete | Laminated Core | 115V | Parallel 8V, Series 16V | Parallel 3A, Series 1.5A | Single | Dual | No | 24VA | Through Hole | PC Pin | 41.28mm L x 57.15mm W | 34.93mm | 1500Vrms | 0.75 lb (340.19 g) |
|
|
PC-24-1000B20PWR XFMR LAMINATED 24VA TH |
3,241 |
|
Datasheet | PC Plug-In | Bulk | Active | Laminated Core | 115V | Parallel 12V, Series 24V | Parallel 2A, Series 1A | Single | Dual | No | 24VA | Through Hole | PC Pin | 41.28mm L x 57.15mm W | 34.93mm | 1500Vrms | 0.75 lb (340.19 g) |
|
|
A41-175-16A17PWR XFMR LAMINATED 175VA CHAS MT |
2,523 |
|
Datasheet | International High Power | Bulk | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 22A, Series 11A | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.38mm L x 95.25mm W | 73.02mm | - | 5.5 lbs (2.5 kg) |
|
|
A41-175-230A46PWR XFMR LAMINATED 175VA CHAS MT |
1,893 |
|
Datasheet | International High Power | Bulk | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 1.52A, Series 760mA | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.38mm L x 95.25mm W | 73.02mm | - | 5.5 lbs (2.5 kg) |
|
|
PC-12-2000B8PWR XFMR LAMINATED 24VA TH |
4,898 |
|
Datasheet | PC Plug-In | Bulk | Active | Laminated Core | 115V | Parallel 6.3V, Series 12.6V | Parallel 4A, Series 2A | Single | Dual | No | 24VA | Through Hole | PC Pin | 41.28mm L x 57.15mm W | 34.93mm | 1500Vrms | 0.75 lb (340.19 g) |
|
|
14A-56-36B42PWR XFMR LAMINATED 56VA TH |
1,812 |
|
Datasheet | International PC Plug-In | Bulk | Obsolete | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 3.12A, Series 1.56A | Dual | Single, Multiple Taps | No | 56VA | Through Hole | PC Pin | 76.20mm L x 63.50mm W | 46.02mm | - | 1.7 lbs (771.1 g) |
Frequently Asked Questions
What are Power Transformers components used for?
Power Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
