Power Transformers
Review Power Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XF-10202PWR XFMR TOROIDAL 1.6VA CHAS MT |
2,695 |
|
Datasheet | - | Bulk | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 67mA, Series 34mA | Dual | Dual | No | 1.6VA | Chassis Mount | Wire Leads | 37.50mm Dia | 17.00mm | 4000Vrms | 0.157 lb (71.21 g) |
|
L01-6334PWR XFMR TOROIDAL 7VA TH |
3,745 |
|
Datasheet | L01 | Tray | Active | Toroidal | 115V, 230V | Parallel 18V, Series 36V | Parallel 388mA, Series 194mA | Dual | Dual | No | 7VA | Through Hole | PC Pin | 49.70mm L x 49.70mm W | 23.10mm | 4000Vrms | 0.384 lb (174.18 g) |
|
|
XF-10232PWR XFMR TOROIDAL 15VA CHAS MT |
2,812 |
|
Datasheet | - | Bulk | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 625mA, Series 312mA | Dual | Dual | No | 15VA | Chassis Mount | Wire Leads | 57.50mm Dia | 24.00mm | 4000Vrms | 0.578 lb (262.18 g) |
|
|
L01-6373PWR XFMR TOROIDAL 35VA TH |
1,678 |
|
Datasheet | L01 | Tray | Active | Toroidal | 115V, 230V | Parallel 15V, Series 30V | Parallel 2.334A, Series 1.167A | Dual | Dual | No | 35VA | Through Hole | PC Pin | 72.00mm L x 72.00mm W | 37.50mm | 4000Vrms | 1.3 lbs (589.7 g) |
|
|
L01-6383PWR XFMR TOROIDAL 50VA TH |
1,789 |
|
Datasheet | L01 | Tray | Active | Toroidal | 115V, 230V | Parallel 15V, Series 30V | Parallel 3.332A, Series 1.666A | Dual | Dual | No | 50VA | Through Hole | PC Pin | 82.40mm L x 82.40mm W | 37.50mm | 4000Vrms | 1.8 lbs (816.5 g) |
|
|
XF-10250PWR XFMR TOROIDAL 50VA CHAS MT |
1,592 |
|
Datasheet | - | Bulk | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 2.083A, Series 1.0415A | Dual | Dual | No | 50VA | Chassis Mount | Wire Leads | 78.00mm Dia | 35.00mm | 4000Vrms | 1.5 lbs (680.4 g) |
|

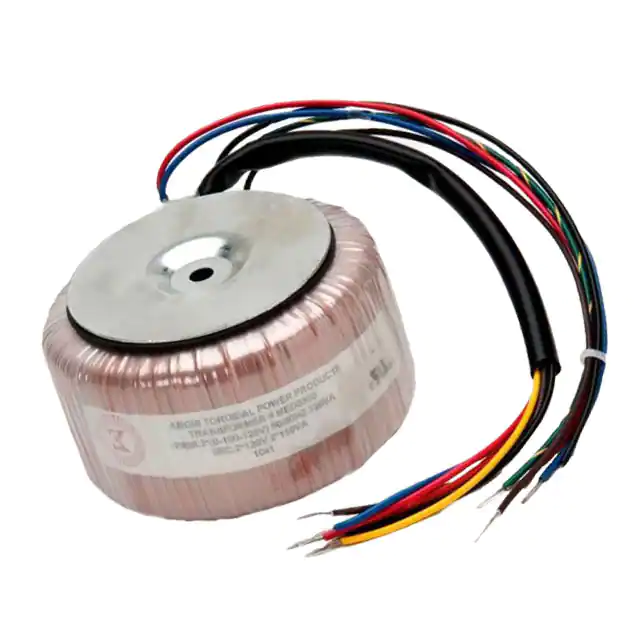

XF-00300-2018PWR XFMR TOROIDAL 300VA CHAS MT |
2,007 |
|
Datasheet | - | Bulk | Active | Toroidal | 117V | Parallel 18V, Series 36V | Parallel 16.66A, Series 8.33A | Dual | Dual | No | 300VA | Chassis Mount | Wire Leads | 116.84mm Dia | 73.66mm | 4000Vrms | 6.5 lbs (2.9 kg) |
|
|
XF-00300-2042PWR XFMR TOROIDAL 300VA CHAS MT |
1,739 |
|
Datasheet | - | Bulk | Active | Toroidal | 117V | Parallel 84V, Series 42V | Parallel 7.3A, Series 3.65A | Dual | Dual | No | 300VA | Chassis Mount | Wire Leads | 116.84mm Dia | 73.66mm | 4000Vrms | 6.5 lbs (2.9 kg) |
|
|
XF-00400-2042PWR XFMR TOROIDAL 400VA CHAS MT |
3,219 |
|
Datasheet | - | Bulk | Active | Toroidal | 117V | Parallel 42V, Series 84V | Parallel 9.52A, Series 4.76A | Dual | Dual | No | 400VA | Chassis Mount | Wire Leads | 142.24mm Dia | 60.96mm | 4000Vrms | 7.2 lbs (3.3 kg) |
|
MED0100PWR XFMR TOROIDAL 100VA CHAS MT |
1,131 |
|
Datasheet | - | Bulk | Active | Toroidal | 100V, 120V | Parallel 120V, Series 240V | Parallel 830mA, Series 420mA | Dual, Multiple Taps | Dual | No | 100VA | Chassis Mount | Wire Leads | - | 50.80mm | - | 2.8 lbs (1.3 kg) |
Frequently Asked Questions
What are Power Transformers components used for?
Power Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
