Power Transformers
Review Power Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
166F28PWR XFMR LAMINATED 7VA CHAS MT |
4,749 |
|
Datasheet | 166 | Bulk | Active | Laminated Core | 115V | 28V | 250mA | Single | Single | Yes | 7VA | Chassis Mount | Wire Leads | 71.37mm L x 38.10mm W | 42.93mm | 2000Vrms | 0.7 lb (317.51 g) |
|
266LA25PWR XFMR LAMINATED 50.4VA CHAS |
3,792 |
|
Datasheet | 266 | Bulk | Active | Laminated Core | 115V, 230V | 25.2V | 2A | Dual | Single | Yes | 50.4VA | Chassis Mount | Wire Leads | 93.73mm L x 54.10mm W | 58.67mm | 2000Vrms | 2.2 lbs (997.9 g) |
|
183J28PWR XFMR LAMINATED 30VA TH |
4,688 |
|
Datasheet | 183 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 2.12A, Series 1.06A | Dual | Dual | No | 30VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.70mm | 4000Vrms | 1.2 lbs (544.3 g) |
|
PWDI13158PWR XFMR CHAS MT |
2,389 |
|
Datasheet | PWDAHL | Box | Active | - | 600V | - | 80mA | Single | - | - | - | Chassis Mount | Wire Leads | 60.33mm L x 40.64mm W | 1.995" (50.67mm) | - | - |
|

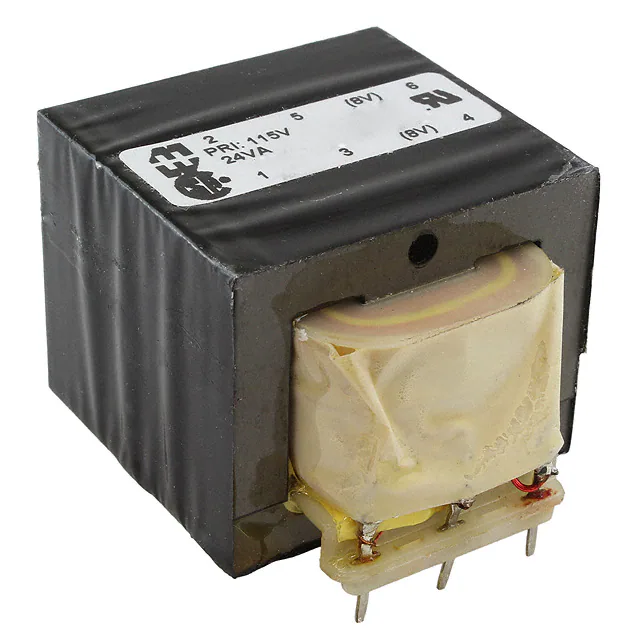

161H16PWR XFMR LAMINATED 24VA TH |
4,387 |
|
Datasheet | 161 | Bulk | Active | Laminated Core | 115V | Parallel 8V, Series 16V | Parallel 3A, Series 1.5A | Single | Single, Multiple Taps | No | 24VA | Through Hole | PC Pin | 41.40mm L x 57.15mm W | 35.05mm | 2000Vrms | 0.81 lb (367.41 g) |
|
185E12PWR XFMR LAMINATED 80VA CHAS MT |
1,728 |
|
Datasheet | 185 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 12.6A, Series 6.3A | Dual | Dual | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 66.29mm W | 76.20mm | 4000Vrms | 2.5 lbs (1.1 kg) |
|
164J12PWR XFMR LAMINATED 36VA TH |
3,799 |
|
Datasheet | 164 | Bulk | Active | Laminated Core | 115V | Parallel 6.3V, Series 12.6V | Parallel 5.7A, Series 2.85A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.70mm | 2500Vrms | 1.1 lbs (499 g) |
|
160H28PWR XFMR LAMINATED 24VA TH |
3,931 |
|
Datasheet | 160 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 1.6A, Series 800mA | Dual | Single, Multiple Taps | No | 24VA | Through Hole | PC Pin | 41.40mm L x 57.15mm W | 35.05mm | 2000Vrms | 0.78 lb (353.8 g) |
|
|
164J56PWR XFMR LAMINATED 36VA TH |
3,259 |
|
Datasheet | 164 | Bulk | Active | Laminated Core | 115V | Parallel 28V, Series 56V | Parallel 1.3A, Series 650mA | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.70mm | 2500Vrms | 1.1 lbs (499 g) |
|
262B24PWR XFMR LAMINATED 7VA CHAS MT |
2,689 |
|
Datasheet | 262 | Bulk | Active | Laminated Core | 115V | 120V, 12/12V | 27mA, 200mA/200mA | Single | Triple | No | 7VA | Chassis Mount | Wire Leads | 71.37mm L x 38.10mm W | 42.67mm | - | 0.6 lb (272.16 g) |
Frequently Asked Questions
What are Power Transformers components used for?
Power Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
