Power Transformers
Review Power Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

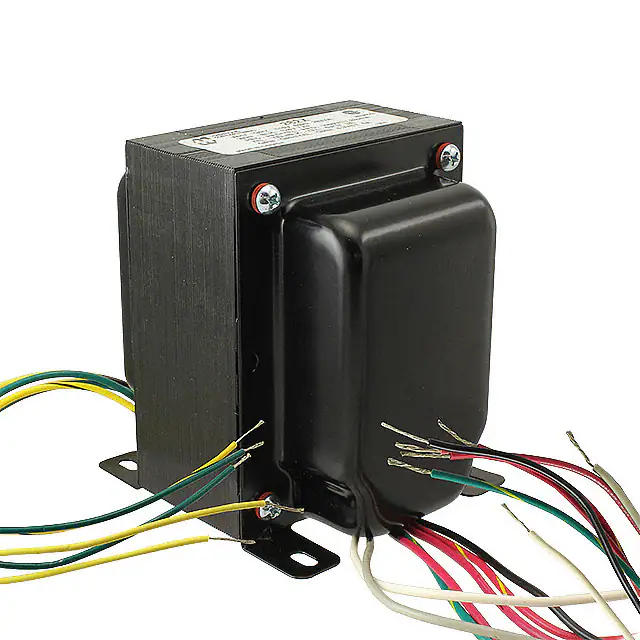

282XPWR XFMR LAMINATED 273VA CHAS MT |
4,281 |
|
Datasheet | 282 | Bulk | Active | Laminated Core | 115V | 1000V, 6.3V, 5V | 230mA, 6A, 3A | Single | Triple | Yes | 273VA | Chassis Mount | Wire Leads | 95.25mm L x 114.30mm W | 115.82mm | 2000Vrms | 11 lbs (5 kg) |
|
370HXPWR XFMR LAMINATED 180VA CHAS MT |
2,638 |
|
Datasheet | 300 | Bulk | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 550V, 6.3V, 5V | 230mA, 6A, 3A | Dual, Multiple Taps | Triple | Yes | 180VA | Chassis Mount | Wire Leads | 79.50mm L x 107.95mm W | 96.77mm | 2000Vrms | 7.6 lbs (3.4 kg) |
|
|
372HXPWR XFMR LAMINATED 191VA CHAS MT |
3,348 |
|
Datasheet | 300 | Bulk | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 600V, 6.3V, 5V | 230mA, 6A, 3A | Dual, Multiple Taps | Four | Yes | 191VA | Chassis Mount | Wire Leads | 101.60mm L x 95.25mm W | 115.90mm | 2000Vrms | 6.5 lbs (2.9 kg) |
|
290KXPWR XFMR LAMINATED CHAS MT |
3,824 |
|
Datasheet | 290 | Box | Active | Laminated Core | 120V, 240V | 330V, 41V, 6.57V | 100mA, 100mA, 2.5A | Dual | Triple | Yes | - | Chassis Mount | Wire Leads | 96.01mm L x 102.87mm W | 81.86mm | - | 7.3 lbs (3.3 kg) |
|
|
372JXPWR XFMR LAMINATED 243VA CHAS MT |
4,076 |
|
Datasheet | 300 | Bulk | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 600V, 6.3V, 5V | 288mA, 8A, 4A | Dual, Multiple Taps | Triple | Yes | 243VA | Chassis Mount | Wire Leads | 95.25mm L x 114.30mm W | 115.82mm | 2000Vrms | 8.6 lbs (3.9 kg) |
|
|
376XPWR XFMR LAMINATED 157VA CHAS MT |
3,911 |
|
Datasheet | 300 | Bulk | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 640V, 6.3V, 5V | 173mA, 5A, 3A | Dual, Multiple Taps | Four | Yes | 157VA | Chassis Mount | Wire Leads | 99.82mm L x 79.50mm W | 96.52mm | 2000Vrms | 5.7 lbs (2.6 kg) |
|
1182P240PWR XFMR TOROIDAL 1000VA CHAS MT |
2,327 |
|
Datasheet | 1182 | Box | Active | Toroidal | 117V, 234V | 240V | 4.17A | Dual | Single | No | 1000VA | Chassis Mount | Wire Leads | 158.75mm Dia | 73.15mm | 4000Vrms | 17 lbs (7.7 kg) |
|
|
1182R117PWR XFMR TOROIDAL 1000VA CHAS MT |
2,902 |
|
Datasheet | 1182 | Box | Active | Toroidal | 117V, 234V | Parallel 117V, Series 234V | Parallel 8.6A, Series 4.3A | Dual | Dual | No | 1000VA | Chassis Mount | Wire Leads | 158.75mm Dia | 73.15mm | 4000Vrms | 17 lbs (7.7 kg) |
|
|
1182U30PWR XFMR TOROIDAL 1000VA CHAS MT |
2,528 |
|
Datasheet | 1182 | Box | Active | Toroidal | 117V, 234V | Parallel 30V, Series 60V | Parallel 33.4A, Series 16.7A | Dual | Dual | No | 1000VA | Chassis Mount | Wire Leads | 158.75mm Dia | 73.15mm | 4000Vrms | 17 lbs (7.7 kg) |
|
|
1182S110PWR XFMR TOROIDAL 1000VA CHAS MT |
2,937 |
|
Datasheet | 1182 | Box | Active | Toroidal | 117V, 234V | Parallel 110V, Series 220V | Parallel 9A, Series 4.5A | Dual | Dual | No | 1000VA | Chassis Mount | Wire Leads | 158.75mm Dia | 73.15mm | 4000Vrms | 17 lbs (7.7 kg) |
Frequently Asked Questions
What are Power Transformers components used for?
Power Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
