Power Transformers
Review Power Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
260A6PWR XFMR CHAS MT |
1,558 |
|
Datasheet | 260 | Bulk | Active | - | - | - | - | - | - | - | - | Chassis Mount | - | - | - | - | 0.21 lb (95.25 g) |
|

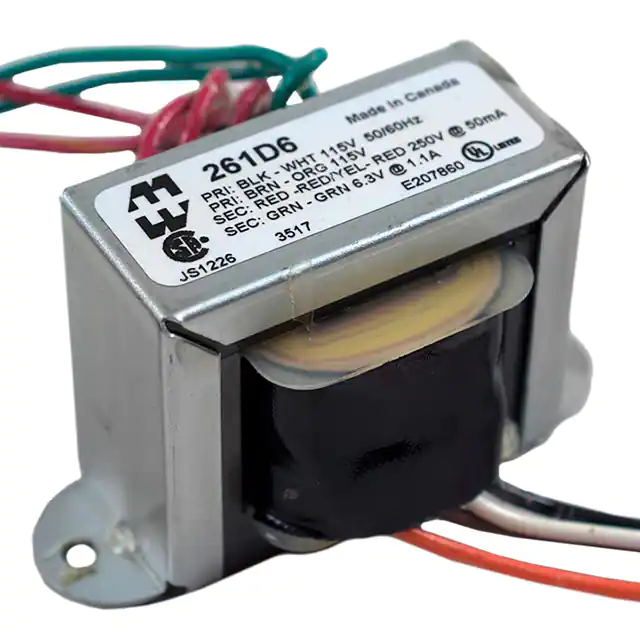

261D6PWR XFMR LAMINATED CHAS MT |
3,280 |
|
Datasheet | 261 | Bulk | Active | Laminated Core | 115V | - | 1.1A | Dual | Dual | Yes | - | Chassis Mount | Wire Leads | - | - | - | - |
|
167R6PWR XFMR LAMINATED 50.4VA CHAS |
3,112 |
|
Datasheet | 167 | Bulk | Active | Laminated Core | 115V | 6.3V | 8A | Single | Single | Yes | 50.4VA | Chassis Mount | Wire Leads | 55.63mm L x 66.80mm W | 66.80mm | 2000Vrms | 1.9 lbs (861.8 g) |
|
166S6PWR XFMR LAMINATED 63VA CHAS MT |
1,276 |
|
Datasheet | 166 | Bulk | Active | Laminated Core | 115V | 6.3V | 10A | Single | Single | Yes | 63VA | Chassis Mount | Wire Leads | 102.36mm L x 57.15mm W | 66.80mm | 2000Vrms | 2.5 lbs (1.1 kg) |
|
266J36PWR XFMR LAMINATED 36VA CHAS MT |
4,720 |
|
Datasheet | 266 | Box | Active | Laminated Core | 117V, 234V | Parallel 18V, Series 36V | Parallel 2A, Series 1A | Dual | Dual | No | 36VA | Chassis Mount | Wire Leads | 93.73mm L x 50.04mm W | 58.67mm | 2000Vrms | 1.8 lbs (816.5 g) |
|
|
166R10PWR XFMR LAMINATED 80VA CHAS MT |
1,266 |
|
Datasheet | 166 | Bulk | Active | Laminated Core | 115V | 10V | 8A | Single | Single | Yes | 80VA | Chassis Mount | Wire Leads | 102.36mm L x 63.50mm W | 66.80mm | 2000Vrms | 3 lbs (1.4 kg) |
|
1182K30PWR XFMR TOROIDAL 80VA CHAS MT |
3,170 |
|
Datasheet | 1182 | Box | Active | Toroidal | 117V, 234V | Parallel 30V, Series 60V | Parallel 2.66A, Series 1.33A | Dual | Dual | No | 80VA | Chassis Mount | Wire Leads | 88.90mm Dia | 38.10mm | 4000Vrms | 2.1 lbs (952.5 g) |
|
|
167M18PWR XFMR LAMINATED 54VA CHAS MT |
3,054 |
|
Datasheet | 167 | Bulk | Active | Laminated Core | 115V | 18V | 3A | Single | Single | Yes | 54VA | Chassis Mount | Wire Leads | 63.50mm L x 69.85mm W | 77.72mm | 2000Vrms | 2.4 lbs (1.1 kg) |
|
261E6PWR XFMR LAMINATED 29VA CHAS MT |
4,761 |
|
Datasheet | 261 | Bulk | Active | Laminated Core | 115V | 250V, 6.3V | 91mA, 1A | Single | Dual | Yes | 29VA | Chassis Mount | Wire Leads | 93.73mm L x 46.99mm W | 58.67mm | - | 1.7 lbs (771.1 g) |
|
|
166L42PWR XFMR LAMINATED 84VA CHAS MT |
1,643 |
|
Datasheet | 166 | Bulk | Active | Laminated Core | 115V | 42V | 2A | Single | Single | Yes | 84VA | Chassis Mount | Wire Leads | 102.36mm L x 63.50mm W | 66.80mm | 2000Vrms | 2.9 lbs (1.3 kg) |
Frequently Asked Questions
What are Power Transformers components used for?
Power Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
