Power Transformers
Review Power Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
266LA12PWR XFMR LAMINATED 24VA CHAS MT |
2,056 |
|
Datasheet | 266 | Box | Active | Laminated Core | 117V, 234V | Parallel 6V, Series 12V | Parallel 4A, Series 2A | Dual | Dual | No | 24VA | Chassis Mount | Wire Leads | 79.50mm L x 50.04mm W | 69.85mm | 2000Vrms | 1.6 lbs (725.7 g) |
|
|
266M2PWR XFMR LAMINATED 7.5VA CHAS MT |
3,991 |
|
Datasheet | 266 | Box | Active | Laminated Core | 117V, 234V | Parallel 1.25V, Series 2.5V | Parallel 6A, Series 3A | Dual | Dual | No | 7.5VA | Chassis Mount | Wire Leads | 71.63mm L x 42.93mm W | 42.93mm | 2000Vrms | 0.6 lb (272.16 g) |
|
|
266L12BPWR XFMR LAMINATED 25.2VA CHAS |
4,787 |
|
Datasheet | 266 | Box | Active | Laminated Core | 117V, 234V | Parallel 6.3V, Series 12.6V | Parallel 4A, Series 2A | Dual | Dual | No | 25.2VA | Chassis Mount | Wire Leads | 79.50mm L x 50.04mm W | 69.85mm | 2000Vrms | 1.6 lbs (725.7 g) |
|
167L28PWR XFMR LAMINATED 56VA CHAS MT |
2,964 |
|
Datasheet | 167 | Bulk | Active | Laminated Core | 115V | 28V | 2A | Single | Single | Yes | 56VA | Chassis Mount | Wire Leads | 63.50mm L x 69.85mm W | 77.72mm | 2000Vrms | 2.4 lbs (1.1 kg) |
|
229D24PWR XFMR SEMI-TORO 48VA TH |
3,461 |
|
Datasheet | 229 | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 4A, Series 2A | Dual | Dual | No | 48VA | Through Hole | PC Pin | 63.50mm L x 79.25mm W | 35.05mm | 1750Vrms | 1.3 lbs (589.7 g) |
|
|
229D20PWR XFMR SEMI-TORO 48VA TH |
4,209 |
|
Datasheet | 229 | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 10V, Series 20V | Parallel 4.8A, Series 2.4A | Dual | Dual | No | 48VA | Through Hole | PC Pin | 63.50mm L x 79.25mm W | 35.05mm | 1750Vrms | 1.6 lbs (725.7 g) |
|

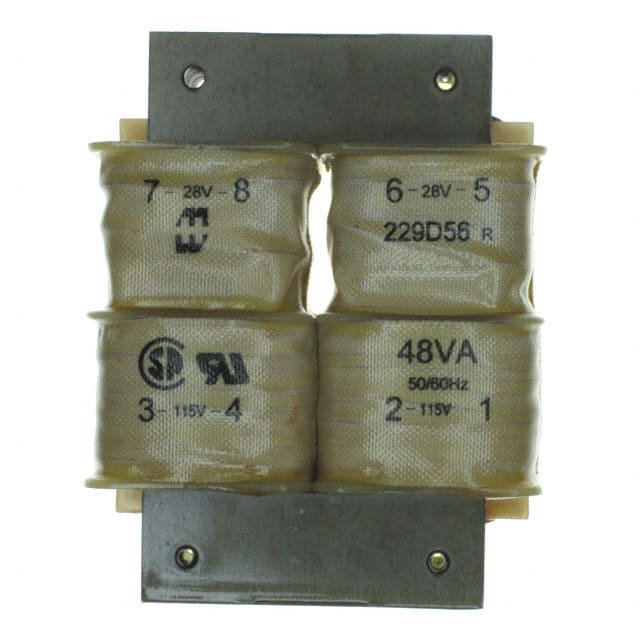

229D56PWR XFMR SEMI-TORO 48VA TH |
3,410 |
|
Datasheet | 229 | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 28V, Series 56V | Parallel 1.7A, Series 850mA | Dual | Dual | No | 48VA | Through Hole | PC Pin | 63.50mm L x 79.25mm W | 35.05mm | 1750Vrms | 1.4 lbs (635 g) |
|
|
266GB6PWR XFMR LAMINATED 3.78VA CHAS |
3,681 |
|
Datasheet | 266 | Box | Active | Laminated Core | 117V, 234V | Parallel 3.15V, Series 6.3V | Parallel 1.2A, Series 600mA | Dual | Dual | No | 3.78VA | Chassis Mount | Wire Leads | 60.45mm L x 37.59mm W | 36.32mm | 2000Vrms | 0.55 lb (249.48 g) |
|
187F24PWR XFMR LAMINATED 96VA CHAS MT |
1,516 |
|
Datasheet | 187 | Box | Active | Laminated Core | 115V | 24V | 4A | Single | Single | Yes | 96VA | Chassis Mount | Solder, Quick Connect | 102.36mm L x 66.68mm W | 65.02mm | 2000Vrms | 2.7 lbs (1.2 kg) |
|

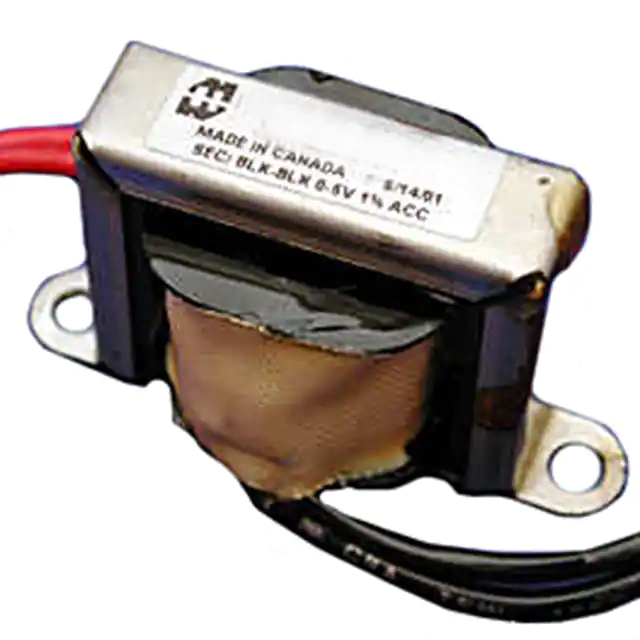

PT120CFPWR XFMR LAMINATED CHAS MT |
1,670 |
|
Datasheet | PT | Box | Active | Laminated Core | 120V | - | - | Single | Single | No | - | Chassis Mount | Wire Leads | 52.40mm L x 27.94mm W | 31.75mm | 4000Vrms | - |
Frequently Asked Questions
What are Power Transformers components used for?
Power Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
