Power Transformers
Review Power Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1182M22PWR XFMR TOROIDAL 120VA CHAS MT |
2,821 |
|
Datasheet | 1182 | Box | Active | Toroidal | 117V, 234V | Parallel 22V, Series 44V | Parallel 5.46A, Series 2.73A | Dual | Dual | No | 120VA | Chassis Mount | Wire Leads | 101.60mm Dia | 41.40mm | 4000Vrms | 3 lbs (1.4 kg) |
|
|
1182P12PWR XFMR TOROIDAL 120VA CHAS MT |
1,041 |
|
Datasheet | 1182 | Box | Active | Toroidal | 117V, 234V | Parallel 12V, Series 24V | Parallel 10A, Series 5A | Dual | Dual | No | 120VA | Chassis Mount | Wire Leads | 101.60mm Dia | 41.40mm | 4000Vrms | 3 lbs (1.4 kg) |
|
269AXPWR XFMR LAMINATED 40VA CHAS MT |
1,346 |
|
Datasheet | 269 | Bulk | Active | Laminated Core | 115V | 250V, 6.3V | 115mA, 2A | Single | Dual | Yes | 40VA | Chassis Mount | Wire Leads | 55.63mm L x 63.50mm W | 66.80mm | 2000Vrms | 1.6 lbs (725.7 g) |
|
266S6PWR XFMR LAMINATED 63VA CHAS MT |
3,071 |
|
Datasheet | 266 | Box | Active | Laminated Core | 117V, 234V | Parallel 3.15V, Series 6.3V | Parallel 20A, Series 10A | Dual | Dual | No | 63VA | Chassis Mount | Wire Leads | 101.60mm L x 62.74mm W | 66.55mm | 2000Vrms | 2.6 lbs (1.2 kg) |
|
|
266M25PWR XFMR LAMINATED 75VA CHAS MT |
2,599 |
|
Datasheet | 266 | Box | Active | Laminated Core | 117V, 234V | Parallel 12.5V, Series 25V | Parallel 6A, Series 3A | Dual | Dual | No | 75VA | Chassis Mount | Wire Leads | 114.30mm L x 63.50mm W | 73.66mm | 2000Vrms | 3.3 lbs (1.5 kg) |
|
|
1182K117PWR XFMR TOROIDAL 160VA CHAS MT |
2,964 |
|
Datasheet | 1182 | Box | Active | Toroidal | 117V, 234V | Parallel 117V, Series 234V | Parallel 1.368A, Series 684mA | Dual | Dual | No | 160VA | Chassis Mount | Wire Leads | 110.49mm Dia | 44.45mm | 4000Vrms | 3.8 lbs (1.7 kg) |
|
|
1182M30PWR XFMR TOROIDAL 160VA CHAS MT |
1,119 |
|
Datasheet | 1182 | Box | Active | Toroidal | 117V, 234V | Parallel 30V, Series 60V | Parallel 5.34A, Series 2.67A | Dual | Dual | No | 160VA | Chassis Mount | Wire Leads | 110.49mm Dia | 44.45mm | 4000Vrms | 3.8 lbs (1.7 kg) |
|
270BXPWR XFMR LAMINATED 53VA CHAS MT |
4,804 |
|
Datasheet | 270 | Bulk | Active | Laminated Core | 115V | 550V, 6.3V, 5V | 57.5mA, 2A, 2A | Single | Triple | Yes | 53VA | Chassis Mount | Wire Leads | 63.50mm L x 69.85mm W | 77.72mm | 2000Vrms | 2.3 lbs (1 kg) |
|

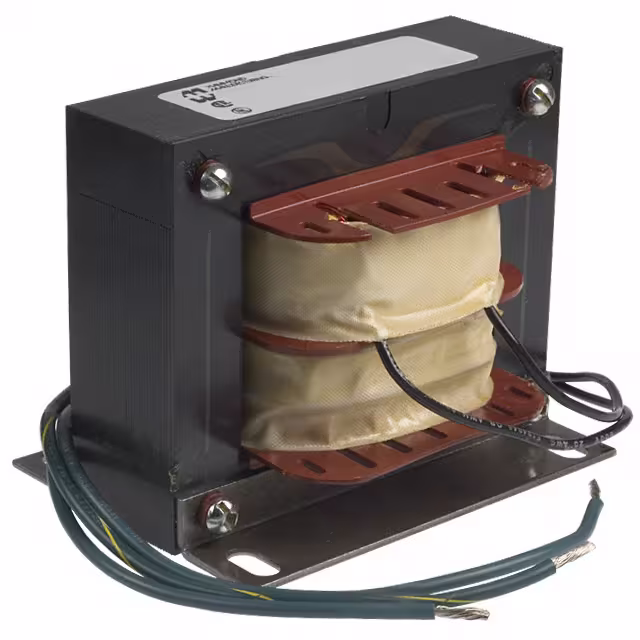

165Z3PWR XFMR LAMINATED 150VA CHAS MT |
3,668 |
|
Datasheet | 165 | Bulk | Active | Laminated Core | 115V | 3V | 50A | Single | Single | Yes | 150VA | Chassis Mount | Wire Leads | 95.25mm L x 88.90mm W | 79.50mm | 2000Vrms | 6 lbs (2.7 kg) |
|
|
270DXPWR XFMR LAMINATED 83VA CHAS MT |
3,662 |
|
Datasheet | 270 | Bulk | Active | Laminated Core | 115V | 550V, 6.3V, 5V | 104mA, 3A, 2A | Single | Triple | Yes | 83VA | Chassis Mount | Wire Leads | 63.50mm L x 76.20mm W | 77.72mm | 2000Vrms | 3.1 lbs (1.4 kg) |
Frequently Asked Questions
What are Power Transformers components used for?
Power Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
