Power Transformers
Review Power Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
164J120PWR XFMR LAMINATED 36VA TH |
3,882 |
|
Datasheet | 164 | Bulk | Active | Laminated Core | 115V | Parallel 60V, Series 120V | Parallel 600mA, Series 300mA | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.70mm | 2500Vrms | 1.1 lbs (499 g) |
|
|
164J36PWR XFMR LAMINATED 36VA TH |
4,173 |
|
Datasheet | 164 | Bulk | Active | Laminated Core | 115V | Parallel 18V, Series 36V | Parallel 2A, Series 1A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.70mm | 2500Vrms | 1.1 lbs (499 g) |
|
|
164J24PWR XFMR LAMINATED 36VA TH |
1,232 |
|
Datasheet | 164 | Bulk | Active | Laminated Core | 115V | Parallel 12V, Series 24V | Parallel 3A, Series 1.5A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.70mm | 2500Vrms | 1.1 lbs (499 g) |
|
PWDI13161PWR XFMR CHAS MT |
2,405 |
|
Datasheet | PWDAHL | Box | Active | - | 600V | - | 120mA | Single | - | - | - | Chassis Mount | Wire Leads | 73.03mm L x 46.23mm W | 2.370" (60.20mm) | - | - |
|

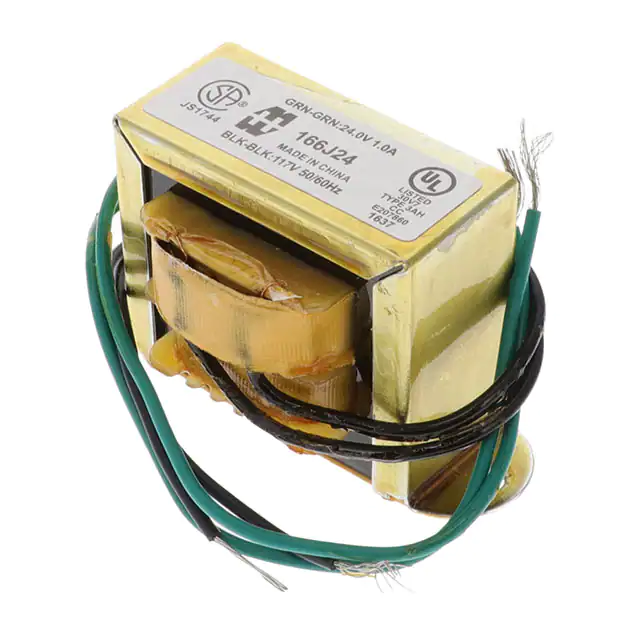

166J24PWR XFMR LAMINATED 24VA CHAS MT |
4,399 |
|
Datasheet | 166 | Box | Active | Laminated Core | 117V | 24V | 1A | Single | Single | Yes | 24VA | Chassis Mount | Wire Leads | 82.55mm L x 50.80mm W | 50.80mm | 2000Vrms | 1.4 lbs (635 g) |
|
166M2PWR XFMR LAMINATED 7.5VA CHAS MT |
1,625 |
|
Datasheet | 166 | Bulk | Active | Laminated Core | 115V | 2.5V | 3A | Single | Single | Yes | 7.5VA | Chassis Mount | Wire Leads | 71.37mm L x 38.10mm W | 42.93mm | 2000Vrms | 0.7 lb (317.51 g) |
|
266K18PWR XFMR LAMINATED 27VA CHAS MT |
3,763 |
|
Datasheet | 266 | Box | Active | Laminated Core | 117V, 234V | Parallel 9V, Series 18V | Parallel 3A, Series 1.5A | Dual | Dual | No | 27VA | Chassis Mount | Wire Leads | 93.73mm L x 50.04mm W | 58.67mm | 2000Vrms | 1.6 lbs (725.7 g) |
|
|
266J24PWR XFMR LAMINATED 24VA CHAS MT |
4,642 |
|
Datasheet | 266 | Bulk | Active | Laminated Core | 117V, 234V | Parallel 12V, Series 24V | Parallel 2A, Series 1A | Dual | Dual | No | 24VA | Chassis Mount | Wire Leads | 79.50mm L x 50.80mm W | 69.85mm | 2000Vrms | 1.6 lbs (725.7 g) |
|
187E24PWR XFMR LAMINATED 57.6VA CHAS |
2,515 |
|
Datasheet | 187 | Box | Active | Laminated Core | 115V | 24V | 2.4A | Single | Single | Yes | 57.6VA | Chassis Mount | Solder, Quick Connect | 93.47mm L x 55.50mm W | 57.15mm | 2000Vrms | 1.7 lbs (771.1 g) |
|
162J36PWR XFMR LAMINATED 36VA TH |
4,619 |
|
Datasheet | 162 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 2A, Series 1A | Dual | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.70mm | 2500Vrms | 1.1 lbs (499 g) |
Frequently Asked Questions
What are Power Transformers components used for?
Power Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
