Power Transformers
Review Power Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
290YXPWR XFMR CHAS MT |
1,736 |
|
Datasheet | 290 | Bulk | Active | - | 120V | 372V, 56V, 6.3V | 400mA, 4A | Single | Triple | Yes | - | Chassis Mount | Wire Leads | 87.33mm L x 129.54mm W | 104.78mm | 2500Vrms | - |
|
1182N240PWR XFMR TOROIDAL 750VA CHAS MT |
2,382 |
|
Datasheet | 1182 | Box | Active | Toroidal | 117V, 234V | 240V | 3.13A | Dual | Single | No | 750VA | Chassis Mount | Wire Leads | 152.40mm Dia | 73.15mm | 4000Vrms | 13 lbs (5.9 kg) |
|
|
724APWR XFMR LAMINATED 345VA CHAS MT |
4,521 |
|
Datasheet | 700 | Bulk | Active | Laminated Core | 117V, 234V | 1500V | 226mA | Single | Single | Yes | 345VA | Chassis Mount | Wire Leads | 133.35mm L x 95.25mm W | 114.30mm | - | 12 lbs (5.4 kg) |
|
|
726APWR XFMR LAMINATED 312VA CHAS MT |
3,604 |
|
Datasheet | 700 | Bulk | Active | Laminated Core | 117V, 234V | 1790V | 175mA | Single | Single | Yes | 312VA | Chassis Mount | Wire Leads | 133.35mm L x 95.25mm W | 114.30mm | - | 12 lbs (5.4 kg) |
|
|
PWDP13105PWR XFMR HEATH DX-35/40 POWER |
4,287 |
|
Datasheet | PWDAHL | Case | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
290HAEXPWR XFMR CHAS MT |
1,817 |
|
Datasheet | 290 | Bulk | Active | - | 120V, 210V, 230V, 240V | 550V, 6.3V, 5V | 100mA, 2.5A, 3A | Dual, Multiple Taps | Four | Yes | - | Chassis Mount | Wire Leads | 63.50mm L x 92.08mm W | 76.20mm | 2500Vrms | - |
|
182R30PWR XFMR TOROIDAL 500VA CHAS MT |
1,477 |
|
Datasheet | 182 | Bulk | Active | Toroidal | 117V, 234V | Parallel 30V, Series 60V | Parallel 16.66A, Series 8.33A | Dual | Dual | No | 500VA | Chassis Mount | Wire Leads | - | 56.13mm | 4000Vrms | 8.5 lbs (3.9 kg) |
|
|
182L240PWR XFMR TOROIDAL 500VA CHAS MT |
1,185 |
|
Datasheet | 182 | Bulk | Active | Toroidal | 117V, 234V | 240V | 2.08A | Dual | Single | No | 500VA | Chassis Mount | Wire Leads | - | 56.13mm | 4000Vrms | 8.5 lbs (3.9 kg) |
|
720PWR XFMR LAMINATED 370VA CHAS MT |
4,701 |
|
Datasheet | 700 | Bulk | Active | Laminated Core | 115V | 1250V | 300mA | Single | Single | Yes | 370VA | Chassis Mount | Wire Leads | 95.25mm L x 136.65mm W | 114.30mm | - | 12 lbs (5.4 kg) |
|

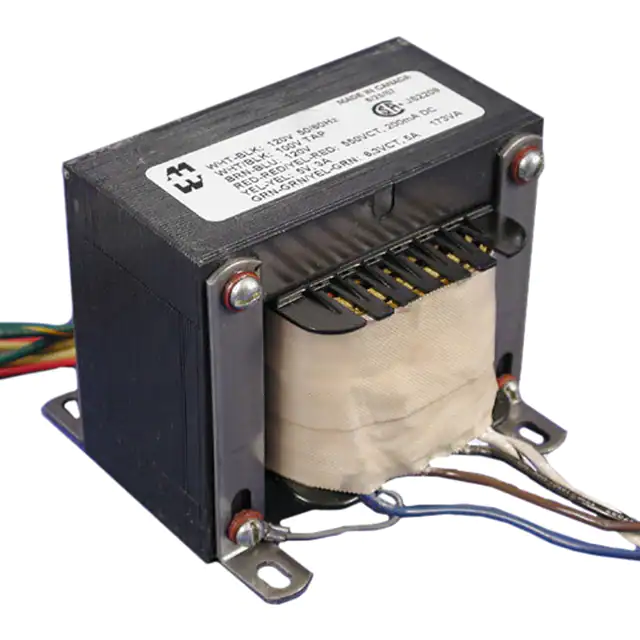

260KPWR XFMR LAMINATED 197VA CHAS MT |
1,242 |
|
Datasheet | 260 | Box | Active | Laminated Core | 100V, 120V, 220V, 240V | 650V, 6.3V, 5V | 230mA, 5A, 3A | Dual, Multiple Taps | Triple | Yes | 197VA | Chassis Mount | Wire Leads | 114.30mm L x 82.55mm W | 95.25mm | - | 8.4 lbs (3.8 kg) |
Frequently Asked Questions
What are Power Transformers components used for?
Power Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
