Power Relays, Over 2 Amps
Review Power Relays, Over 2 Amps Relays components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
20.21.8.120.0000RELAY IMPULSE SPST 16A 120V |
3,096 |
|
Datasheet | 20 | Bulk | Active | DIN Rail | 120VAC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 54 mA | Latching, Single Coil | Mechanical Indicator, Test Button | Screw Terminal | - | - | 102 VAC | - | - | - | -40°C ~ 40°C | Silver Nickel (AgNi) | Impulse | - | - |
|

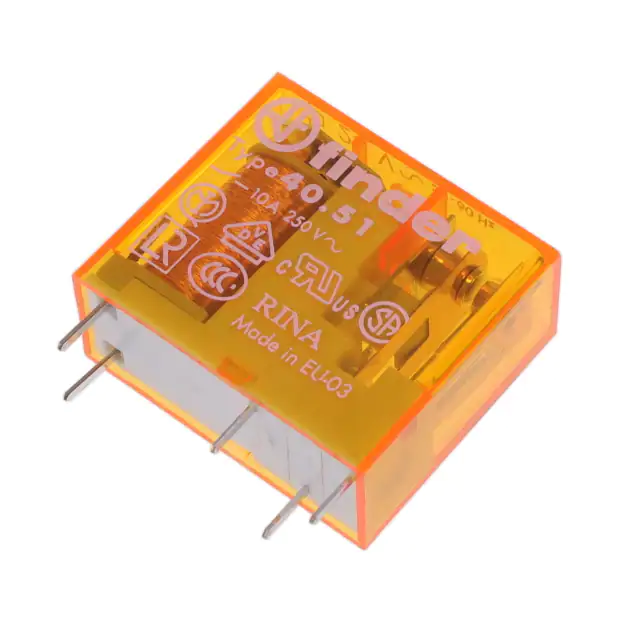

40.51.8.024.0000RELAY GEN PURPOSE SPDT 10A 24V |
2,023 |
|
Datasheet | 40 | Bulk | Active | Socketable | 24VAC | SPDT (1 Form C) | 10 A | 400VAC - Max | 4000VA | 45 mA | Non Latching | - | Plug In | Sealed - Flux Protection | - | 19.2 VAC | 4.8 VAC | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
40.62.9.012.0000RELAY GEN PURPOSE DPDT 10A 12V |
4,167 |
|
Datasheet | 40 | Box | Active | Socketable | 12VDC | DPDT (2 Form C) | 10 A | 400VAC - Max | 4000VA | 55 mA | Non Latching | - | Plug In | Sealed - Flux Protection | - | 8.8 VDC | 1.2 VDC | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
40.51.8.230.0000RELAY GEN PURPOSE SPDT 10A 230V |
3,069 |
|
Datasheet | 40 | Bulk | Active | Socketable | 230VAC | SPDT (1 Form C) | 10 A | 400VAC - Max | 4000VA | 5 mA | Non Latching | - | Plug In | Sealed - Flux Protection | - | 184 VAC | 46 VAC | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
55.32.9.012.0040RELAY GEN PURPOSE DPDT 10A 12V |
3,750 |
|
Datasheet | 55 | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 10 A | 400VAC - Max | 4000VA | 86 mA | Non Latching | Mechanical Indicator, Test Button | Plug In | - | - | 9.6 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
55.33.8.024.0010RELAY GEN PURPOSE 3PDT 10A 24V |
4,057 |
|
Datasheet | 55 | Bulk | Active | Socketable | 24VAC | 3PDT (3 Form C) | 10 A | 400VAC - Max | 4000VA | 53 mA | Non Latching | Test Button | Plug In | - | - | 19.2 VAC | 4.8 VAC | 9 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
56.32.8.024.0040RELAY GEN PURPOSE DPDT 12A 24V |
2,416 |
|
Datasheet | 56 | Bulk | Active | Socketable | 24VAC | DPDT (2 Form C) | 12 A | 400VAC - Max | 4800VA | 53 mA | Non Latching | Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 19.2 VAC | 4.8 VAC | 9 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
55.32.8.120.0050RELAY GEN PURPOSE DPDT 10A 120V |
1,344 |
|
Datasheet | 55 | Bulk | Active | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 400VAC - Max | 4000VA | 12 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 96 VAC | 24 VAC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
46.61.8.230.0040RELAY GEN PURPOSE SPDT 16A 230V |
2,323 |
|
Datasheet | 46 | Bulk | Active | Socketable | 230VAC | SPDT (1 Form C) | 16 A | 440VAC - Max | 7040VA | 5 mA | Non Latching | Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 184 VAC | 46 VAC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

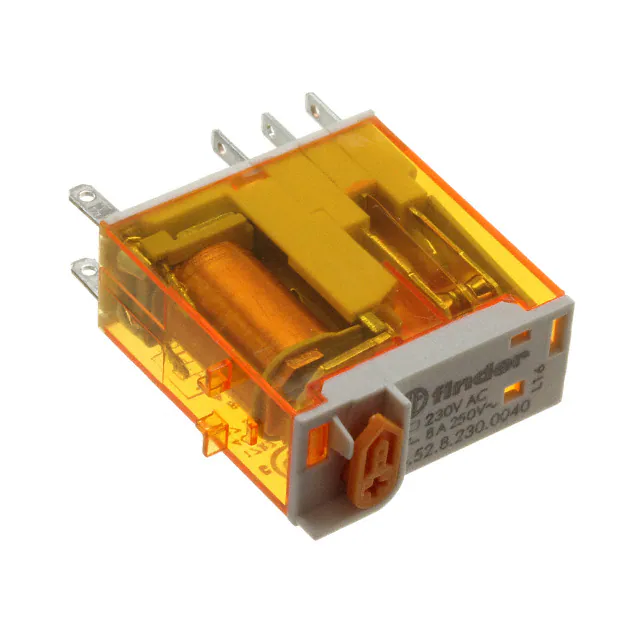

46.52.8.230.0040RELAY GEN PURPOSE DPDT 8A 230V |
3,914 |
|
Datasheet | 46 | Bulk | Active | Socketable | 230VAC | DPDT (2 Form C) | 8 A | 440VAC - Max | 3520VA | 5 mA | Non Latching | Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 184 VAC | 46 VAC | 10 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
