Power Relays, Over 2 Amps
Explore Power Relays, Over 2 Amps parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

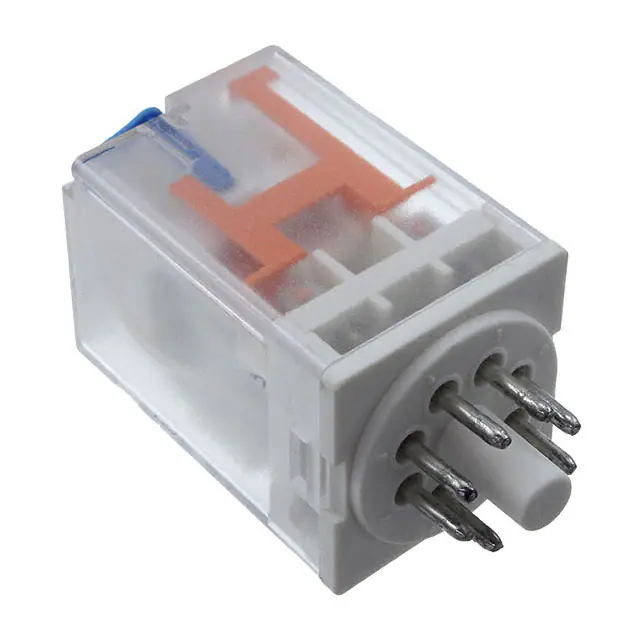

RCI002D24VRELAY GEN PURPOSE DPDT 10A 24V |
4,433 |
|
Datasheet | RCI | Bulk | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 250VAC, 30VDC - Max | - | 66.7 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, 8 Pin (Octal) | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
15334.2RELAY GEN PURPOSE DPDT 8A 48V |
2,132 |
|
Datasheet | PRS | Box | Active | Socketable | 48VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 8.7 mA | Non Latching | - | Plug In | - | - | 33.6 VDC | 4.8 VDC | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
RM205012RELAY GEN PURPOSE DPDT 16A 12V |
4,363 |
|
Datasheet | RM, SCHRACK | Bulk | Obsolete | Chassis Mount | 12VDC | DPDT (2 Form C) | 16 A | 440VAC - Max | 7040VA | 109 mA | Non Latching | Mechanical Indicator | Quick Connect - 0.250" (6.3mm) | - | - | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
R2N-2012-23-1024-WTRELAY GEN PURPOSE DPDT 12A 24V |
2,418 |
|
Datasheet | R2 | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 12 A | 440VAC - Max | 5280VA | 37.5 mA | Non Latching | - | Plug In, 8 Pin | - | - | - | - | 13 ms | 3 ms | -40° ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
RM85-2011-35-5230RELAY GEN PURPOSE SPDT 16A 230V |
2,002 |
|
Datasheet | RM85 | Bulk | Active | Through Hole | 230VAC | SPDT (1 Form C) | 16 A | 440VAC - Max | 7040VA | 6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 184 VAC | - | 7 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
AZ2800-2C-240A6ERELAY GEN PURPOSE DPDT 40A 240V |
1,756 |
|
Datasheet | AZ2800 | Box | Active | Chassis Mount | 240VAC | DPDT (2 Form C) | 40 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 16.7 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 192 VAC | 48 VAC | 25 ms | 25 ms | -40°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
8870040000RELAY GEN PURPOSE DPDT 8A 48V |
1,774 |
|
Datasheet | RCI | Bulk | Active | Through Hole | 48VDC | DPDT (2 Form C) | 8 A | 250VAC - Max | 2000VA | 8.7 mA | Non Latching | Test Button | PC Pin | - | - | 33.6 VDC | 4.8 VDC | 10 ms | 4 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
DK1A1B-L2-DC6VRELAY GEN PURPOSE DPST 8A 6V |
2,602 |
|
Datasheet | DK | Tube | Active | Through Hole | 6VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 250VAC, 125VDC - Max | 2000VA, 1000W | 33.3 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 4.2 VDC | - | 10 ms | 8 ms | -40°C ~ 65°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
RM202615RELAY GEN PURPOSE DPDT 16A 115V |
2,687 |
|
Datasheet | RM, SCHRACK | Bulk | Obsolete | Socketable | 115VAC | DPDT (2 Form C) | 16 A | 440VAC - Max | 7040VA | 57.5 mA | Non Latching | Mechanical Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 92 VAC | 34.5 VAC | 15 ms | 10 ms | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
AZ2700-2A-220ATFRELAY GEN PURPOSE DPST 30A 220V |
4,632 |
|
Datasheet | AZ2700 | Box | Active | Chassis Mount | 220VAC | DPST-NO (2 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 10 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 176 VAC | 33 VAC | 30 ms | 30 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ2701-2A-48ATFRELAY GEN PURPOSE DPST 30A 48V |
2,100 |
|
Datasheet | AZ2701 | Box | Active | Chassis Mount | 48VAC | DPST-NO (2 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 40 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | Class F | 38.4 VAC | 7.2 VAC | 30 ms | 30 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
3-1415074-1RT3SKLC4 |
3,603 |
|
Datasheet | RT, SCHRACK | Bulk | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 16.7 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | Class F | 16.8 VDC | 2.4 VDC | - | - | -20°C ~ 85°C | - | General Purpose | - | - |
|
|
MY2-GS-R DC100/110RELAY GEN PURPOSE DPDT 5A 110V |
2,717 |
|
Datasheet | MY | Bulk | Active | Socketable | 110VDC | DPDT (2 Form C) | 7 A | 250VAC, 220VDC - Max | 1750VA, 1540W | 9.6 mA | Non Latching | Mechanical Indicator | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 88 VDC | 11 VDC | 20 ms | 20 ms | -55°C ~ 70°C | Silver (Ag) | General Purpose | - | - |
|
RP414012RELAY GEN PURPOSE SPDT 12A 12V |
1,778 |
|
Datasheet | RP II/1, SCHRACK | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 12 A | 400VAC - Max | 4800VA | 44.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 1.2 VDC | 8 ms | 2 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
AZ2800-2C-240A6EKRELAY GEN PURPOSE DPDT 40A 240V |
3,738 |
|
Datasheet | AZ2800 | Box | Active | Chassis Mount | 240VAC | DPDT (2 Form C) | 40 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 16.7 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | Sealed - Fully | Class F | 192 VAC | 48 VAC | 25 ms | 25 ms | -40°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
AZ2800-2CE-240A6EKRELAY GEN PURPOSE DPDT 40A 240V |
4,355 |
|
Datasheet | AZ2800 | Box | Active | Chassis Mount | 240VAC | DPDT (2 Form C) | 40 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 16.7 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | Sealed - Fully | Class F | 192 VAC | 48 VAC | 25 ms | 25 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
ADJ44048RELAY GEN PURPOSE DPST 10A 48V |
1,562 |
|
Datasheet | ADJ | Box | Active | Through Hole | 48VDC | DPST-NO/NC (1 Form A, 1 Form B) | 10 A | 250VAC - Max | 2500VA | 5.2 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 33.6 VDC | - | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO), Gold (Au) | General Purpose | - | - |
|
|
AZ2704-2A-120ATWFRELAY GEN PURPOSE DPST 30A 120V |
1,746 |
|
Datasheet | AZ2704 | Box | Active | Through Hole | 120VAC | DPST-NO (2 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 23 mA | Non Latching | - | PC Pin | - | Class F | 96 VAC | 18 VAC | 30 ms | 30 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
APF1034HRELAY GEN PURPOSE SPST 6A 4.5V |
3,044 |
|
Datasheet | APF | Tube | Active | Through Hole | 4.5VDC | SPST-NO (1 Form A) | 6 A | 250VAC - Max | - | 37.8 mA | Non Latching | - | PC Pin | - | - | 3.15 VDC | 0.225 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
APF10306RELAY GEN PURPOSE SPST 6A 6V |
4,983 |
|
Datasheet | APF | Tube | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 6 A | 250VAC - Max | - | 28.3 mA | Non Latching | - | PC Pin | - | - | 4.2 VDC | 0.3 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
Frequently Asked Questions
What are Power Relays, Over 2 Amps components used for?
Power Relays, Over 2 Amps components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Relays, Over 2 Amps part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Relays, Over 2 Amps parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
