Power Relays, Over 2 Amps
Explore Power Relays, Over 2 Amps parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R4N-2014-23-1110-WTRELAY GEN PURPOSE 4PDT 6A 110V |
2,822 |
|
Datasheet | R4 | Bulk | Active | Socketable | 110VDC | 4PDT (4 Form C) | 6 A | 250VAC - Max | 1500VA | 8.1 mA | Non Latching | - | Plug In, 14 Pin | - | - | - | - | 13 ms | 3 ms | -40° ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
RXG22JDHARMONY, INTERFACE PLUG-IN RELAY |
1,317 |
|
Datasheet | Harmony | Box | Active | Socketable | 12VDC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | - | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | - | 1.2 VDC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | General Purpose | - | - |
|
RXG12JDHARMONY, INTERFACE PLUG-IN RELAY |
1,119 |
|
Datasheet | Harmony | Box | Active | Socketable | 12VDC | SPDT (1 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | - | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | - | 1.2 VDC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | General Purpose | - | - |
|
|
AZ2704-2A-48AWRELAY GEN PURPOSE DPST 30A 48V |
4,648 |
|
Datasheet | AZ2704 | Box | Active | Through Hole | 48VAC | DPST-NO (2 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 40 mA | Non Latching | - | PC Pin | - | Class B | 38.4 VAC | 7.2 VAC | 30 ms | 30 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
AZ2704-2A-48ARELAY GEN PURPOSE DPST 30A 48V |
2,880 |
|
Datasheet | AZ2704 | Box | Active | Through Hole | 48VAC | DPST-NO (2 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 40 mA | Non Latching | - | PC Pin | - | Class B | 38.4 VAC | 7.2 VAC | 30 ms | 30 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
8550510000RELAY GEN PURPOSE SPDT 16A 24V |
3,458 |
|
Datasheet | MCZ | Bulk | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 250VAC - Max | 4000VA | - | Non Latching | Test Button | PC Pin | - | - | - | - | 10 ms | 3 ms | -25°C ~ 70°C | Silver Copper Nickel (AgCuNi) | General Purpose | - | - |
|

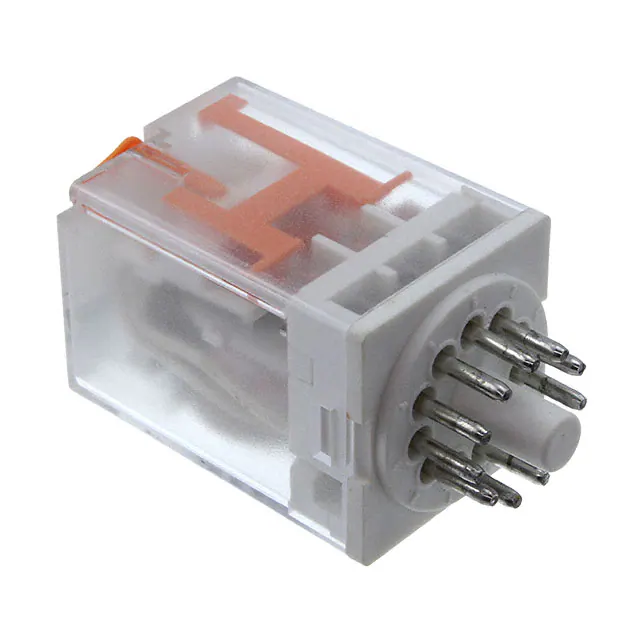

RCI002A24VRELAY GEN PURPOSE DPDT 10A 24V |
1,819 |
|
Datasheet | RCI | Bulk | Obsolete | Socketable | 24VAC | DPDT (2 Form C) | 10 A | 250VAC, 30VDC - Max | - | 333 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, 8 Pin (Octal) | - | - | 19.2 VAC | 7.2 VAC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

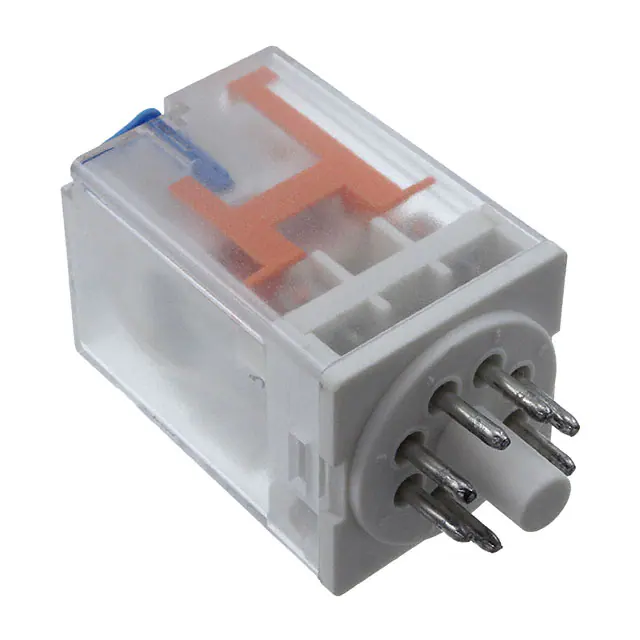

RCI002D5VRELAY GEN PURPOSE DPDT 10A 5V |
3,651 |
|
Datasheet | RCI | Bulk | Obsolete | Socketable | 5VDC | DPDT (2 Form C) | 10 A | 250VAC, 30VDC - Max | - | 320 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, 8 Pin (Octal) | - | - | 4 VDC | 0.5 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
RCP8002115/120VACRELAY GEN PURPOSE DPDT 10A 120V |
2,881 |
|
Datasheet | RCP | Bulk | Active | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 21 mA | Non Latching | Lighted Indicator | Plug In, 8 Pin (Octal) | - | - | 95 VAC | 38.8 VAC | 30 ms | 20 ms | -40°C ~ 50°C | Silver Alloy | General Purpose | - | - |
|
|
RCP8002230VACRELAY GEN PURPOSE DPDT 10A 230V |
2,453 |
|
Datasheet | RCP | Bulk | Active | Socketable | 230VAC | DPDT (2 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 21 mA | Non Latching | Lighted Indicator | Plug In, 8 Pin (Octal) | - | - | 190 VAC | 77.7 VAC | 30 ms | 20 ms | -40°C ~ 50°C | Silver Alloy | General Purpose | - | - |
|
|
RCP800224VACRELAY GEN PURPOSE DPDT 10A 24V |
2,622 |
|
Datasheet | RCP | Bulk | Active | Socketable | 24VAC | DPDT (2 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 36.9 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, 8 Pin (Octal) | - | - | 19.2 VAC | 7.2 VAC | 30 ms | 20 ms | -40°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|
|
RCP800224VDCRELAY GEN PURPOSE DPDT 10A 24V |
4,752 |
|
Datasheet | RCP | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 55.8 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, 8 Pin (Octal) | - | - | 19.2 VDC | 2.4 VDC | 30 ms | 20 ms | -40°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|
|
15557.2RELAY GEN PURPOSE SPDT 6A 5V |
2,896 |
|
Datasheet | PRC | Box | Active | Socketable | 5VDC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 34 mA | Non Latching | - | Plug In | - | - | 3.5 VDC | 0.25 VDC | 12 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
15558.2RELAY GEN PURPOSE SPDT 6A 12V |
3,222 |
|
Datasheet | PRC | Box | Active | Socketable | 12VDC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 14.2 mA | Non Latching | - | Plug In | - | - | 8.4 VDC | 0.6 VDC | 12 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
15559.2RELAY GEN PURPOSE SPDT 6A 24V |
2,424 |
|
Datasheet | PRC | Box | Active | Socketable | 24VDC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 7.1 mA | Non Latching | - | Plug In | - | - | 16.8 VDC | 1.2 VDC | 12 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
AZ2704-2A-24ATWFRELAY GEN PURPOSE DPST 30A 24V |
1,456 |
|
Datasheet | AZ2704 | Box | Active | Through Hole | 24VAC | DPST-NO (2 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 80 mA | Non Latching | - | PC Pin | - | Class F | 19.2 VAC | 3.6 VAC | 30 ms | 30 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ2705-1A-120ATRELAY GEN PURPOSE SPST 30A 120V |
3,008 |
|
Datasheet | AZ2705 | Box | Active | Chassis Mount | 120VAC | SPST-NO (1 Form A) | 30 A | 277VAC, 150VDC - Max | 8310VA, 840W | 23 mA | Non Latching | - | Screw Terminal | - | Class B | 96 VAC | 18 VAC | 30 ms | 30 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ2704-2A-24ATFRELAY GEN PURPOSE DPST 30A 24V |
1,672 |
|
Datasheet | AZ2704 | Box | Active | Through Hole | 24VAC | DPST-NO (2 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 80 mA | Non Latching | - | PC Pin | - | Class F | 19.2 VAC | 3.6 VAC | 30 ms | 30 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
RM85-2011-35-5240RELAY GEN PURPOSE SPDT 16A 240V |
2,335 |
|
Datasheet | RM85 | Bulk | Active | Through Hole | 240VAC | SPDT (1 Form C) | 16 A | 440VAC - Max | 7040VA | 5.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 192 VAC | - | 7 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
40.52.8.230.0300RELAY GEN PURPOSE DPST 8A 230V |
1,660 |
|
Datasheet | 40 | Bulk | Active | Socketable | 230VAC | DPST-NO (2 Form A) | 8 A | 400VAC - Max | 3200VA | 5 mA | Non Latching | - | Plug In | Sealed - Flux Protection | - | 184 VAC | 46 VAC | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
Frequently Asked Questions
What are Power Relays, Over 2 Amps components used for?
Power Relays, Over 2 Amps components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Relays, Over 2 Amps part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Relays, Over 2 Amps parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
