Power Relays, Over 2 Amps
Explore Power Relays, Over 2 Amps parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G7L-2A-BUBJ-CB-IN DC24RELAY GEN PURPOSE DPST 25A 24V |
4,782 |
|
Datasheet | G7L | Bulk | Active | Chassis Mount | 24VDC | DPST-NO (2 Form A) | 25 A | 250VAC - Max | 6250VA | 79 mA | Non Latching | Test Button | Screw Terminal | - | Class B | 18 VDC | 3.6 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | General Purpose | - | - |
|
HE2AN-Q-AC120VRELAY GEN PURPOSE DPST 25A 120V |
504 |
|
Datasheet | HE | Bulk | Active | Chassis Mount | 120VAC | DPST-NO (2 Form A) | 25 A | 277VAC, 30VDC - Max | 6925VA, 750W | 22.1 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 84 VAC | 18 VAC | 30 ms | 30 ms | -50°C ~ 55°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
RR2BA-UDC24VRELAY GEN PURPOSE DPDT 10A 24V |
130 |
|
Datasheet | RR | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 60 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 19.2 VDC | 2.4 VDC | 25 ms | 25 ms | -25°C ~ 40°C | Silver (Ag) | General Purpose | - | - |
|
G7L-2A-P-PV-DC12RELAY GEN PURPOSE DPST 30A 12V |
255 |
|
Datasheet | G7L-PV | Bulk | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 30 A | 280VAC - Max | 8400VA | 192 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 1.2 VDC | 30 ms | 30 ms | -25°C ~ 85°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
AZSR180-1AE-12DRELAY EV CHG SOLAR SPST 80A 12V |
455 |
|
Datasheet | AZSR180 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 80 A | 440VAC, 150VDC - Max | 22160VA, 2400W | 40 mA | Non Latching | - | PC Pin | - | Class F | 9 VDC | 0.6 VDC | 40 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | EV Charging, Solar | - | - |
|
|
G7L-1A-BUBJ-CB DC24RELAY GEN PURPOSE SPST 30A 24V |
130 |
|
Datasheet | G7L | Bulk | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 30 A | 250VAC - Max | 7500VA | 79 mA | Non Latching | Test Button | Screw Terminal | - | Class B | 18 VDC | 3.6 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | General Purpose | - | - |
|
AZSR180-1AE-24DRELAY EV CHG SOLAR SPST 80A 24V |
591 |
|
Datasheet | AZSR180 | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 80 A | 440VAC, 150VDC - Max | 22160VA, 2400W | 20 mA | Non Latching | - | PC Pin | - | Class F | 18 VDC | 2.4 VDC | 40 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | EV Charging, Solar | - | - |
|
LY2N-DC12RELAY GEN PURPOSE DPDT 10A 12V |
392 |
|
Datasheet | LY | Tray | Active | Socketable | 12VDC | DPDT (2 Form C) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 75 mA | Non Latching | Lighted Indicator | Plug In | - | - | 9.6 VDC | 1.2 VDC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|
AZSR250-2AE-24DRELAY EV CHG SOLAR DPST 55A 24V |
281 |
|
Datasheet | AZSR250 | Tube | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 55 A | 440VAC, 150VDC - Max | 13850VA 1500W | 20 mA | Non Latching | - | PC Pin | - | Class F | 18 VDC | 1.2 VDC | 40 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | EV Charging, Solar | - | - |
|
KUP-11D55-12RELAY GEN PURPOSE DPDT 10A 12V |
184 |
|
Datasheet | KUP | Bulk | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 100 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 9 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
RH2B-ULCAC110-120VRELAY GEN PURPOSE DPDT 10A 120V |
256 |
|
Datasheet | RH | Bulk | Active | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 9.2 mA | Non Latching | Lighted Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -25°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

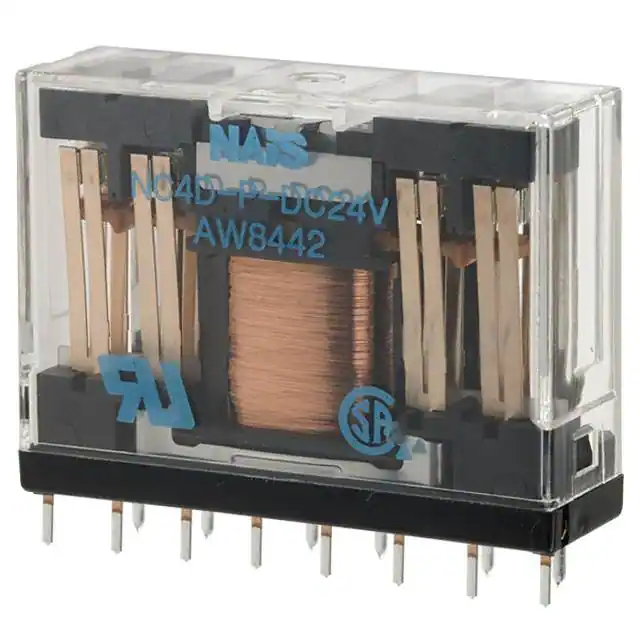

NC4D-P-DC24VRELAY GEN PURPOSE 4PDT 5A 24V |
579 |
|
Datasheet | NC | Tray | Active | Through Hole | 24VDC | 4PDT (4 Form C) | 5 A | 250VAC - Max | 1250VA | 30 mA | Non Latching | - | PC Pin | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 10 ms | -40°C ~ 55°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
39.61.0.024.0060RELAY GEN PURPOSE SPDT 6A 24V |
251 |
|
Datasheet | 39 | Bulk | Active | DIN Rail | 24VAC/DC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 11 mA | Non Latching | - | Spring Terminal | - | - | 19.2 VAC/DC | 2.4 VAC/DC | 5 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
AZDC105-1AH-12DTRELAY GEN PURPOSE SPST 150A 12V |
129 |
|
Datasheet | AZDC105 | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 150 A | 60VDC - Max | 9000W | 266.7 mA | Non Latching | - | PC Pin | - | Class F | 9 VDC | 0.6 VDC | 30 ms | 10 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
KHAU-17D12-24RELAY GEN PURPOSE 4PDT 5A 24V |
1,572 |
|
Datasheet | KHA | Bulk | Active | Socketable | 24VDC | 4PDT (4 Form C) | 5 A | 240VAC - Nom | - | 37.5 mA | Non Latching | - | Plug In | - | Class B | 18 VDC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
K10P-11D15-6RELAY GEN PURPOSE DPDT 15A 6V |
250 |
|
Datasheet | K10 | Tray | Active | Socketable | 6VDC | DPDT (2 Form C) | 15 A | 120VAC - Nom | - | 150 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 4.5 VDC | 0.6 VDC | 13 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
K10P-11A15-24RELAY GEN PURPOSE DPDT 15A 24V |
246 |
|
Datasheet | K10 | Tray | Active | Socketable | 24VAC | DPDT (2 Form C) | 15 A | 120VAC - Nom | - | 52 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 20.4 VAC | 2.4 VAC | 13 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
K10P-11D55-12RELAY GEN PURPOSE DPDT 15A 12V |
134 |
|
Datasheet | K10 | Tray | Active | Through Hole | 12VDC | DPDT (2 Form C) | 15 A | 120VAC - Nom | - | 75 mA | Non Latching | - | PC Pin | - | Class B | 9 VDC | 1.2 VDC | 13 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
NC4D-JP-DC24VRELAY GEN PURPOSE 4PDT 5A 24V |
210 |
|
Datasheet | NC | Tube | Active | Through Hole | 24VDC | 4PDT (4 Form C) | 5 A | 250VAC - Max | 1250VA | 30 mA | Non Latching | - | PC Pin | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 10 ms | -40°C ~ 55°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
MKS2PI-AC120RELAY GEN PURPOSE DPDT 10A 120V |
193 |
|
Datasheet | MK-S | Bulk | Active | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 19.3 mA | Non Latching | Mechanical Indicator, Test Button | Plug In, 8 Pin (Octal) | - | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -40°C ~ 60°C | Silver Tin Indium (AgSnIn) | General Purpose | - | - |
Frequently Asked Questions
What are Power Relays, Over 2 Amps components used for?
Power Relays, Over 2 Amps components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Relays, Over 2 Amps part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Relays, Over 2 Amps parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
