Power Relays, Over 2 Amps
Explore Power Relays, Over 2 Amps parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
J1511CP48VAC1.2RELAY GEN PURPOSE SPDT 20A 48V |
4,844 |
|
Datasheet | J151 | Tray | Active | Through Hole | 48VAC | SPDT (1 Form C) | 12 A | 300VAC - Max | 6000VA | 65.3 mA | Non Latching | - | PC Pin | - | - | 38.4 VAC | 14.4 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
5-1415400-1RT114F24 |
1,800 |
|
Datasheet | RT, SCHRACK | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 12 A | 400VAC - Max | 4800VA | 16.7 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | Class F | 16.8 VDC | 2.4 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
G8P-1C4P-AS DC24RELAY GEN PURPOSE SPDT 10A 24V |
1,468 |
|
Datasheet | G8P | Bulk | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 2500VA, 280W | 36 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
1393222-3RELAY GEN PURPOSE SPST 8A 5V |
4,942 |
|
Datasheet | MSR, SCHRACK | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | 42.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 3.4 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 85°C | - | General Purpose | - | - |
|

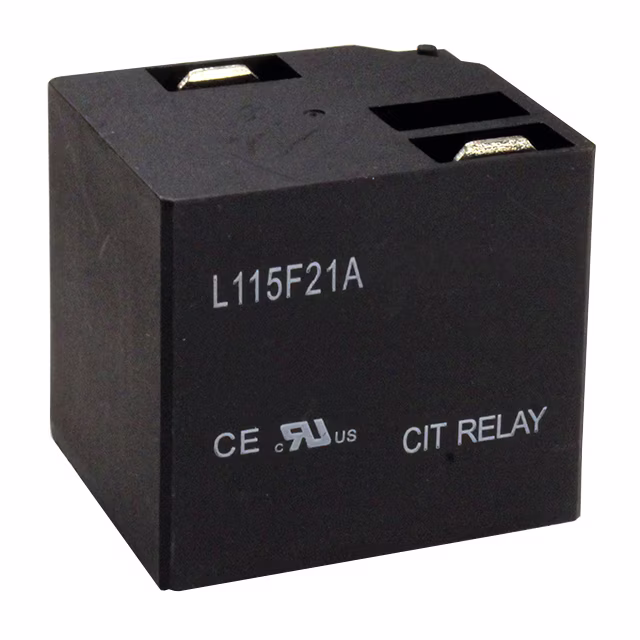

L115F21AH12VDCS1.5URELAY GEN PURPOSE SPST 50A 12V |
3,303 |
|
Datasheet | L115F2 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 125 mA | Latching, Single Coil | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 9.6 VDC | - | 15 ms | 15 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | General Purpose | - | - |
|
RP430024RELAY GEN PURPOSE SPST 12A 24V |
4,693 |
|
Datasheet | RP II/1, SCHRACK | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 12 A | 400VAC - Max | 4800VA | 21.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 2.4 VDC | 8 ms | 2 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
RTE44615RELAY GEN PURPOSE DPST 8A 115V |
4,554 |
|
Datasheet | RT2, SCHRACK | Tube | Obsolete | Through Hole | 115VAC | DPST-NO (2 Form A) | 8 A | 400VAC - Max | 3200VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 86.3 VAC | 17.3 VAC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
AZ165-2C-12DRELAY GEN PURPOSE DPDT 7A 12V |
3,692 |
|
Datasheet | AZ165 | Box | Active | Socketable | 12VDC | DPDT (2 Form C) | 7 A | 250VAC, 30VDC - Max | 1750VA, 210W | 75 mA | Non Latching | - | Plug In | - | - | 9.6 VDC | 1.2 VDC | 25 ms | 25 ms | -55°C ~ 70°C | Silver Cerium (AgCe) | General Purpose | - | - |
|
|
G2RL-24-CF DC12RELAY GEN PURPOSE DPDT 8A 12V |
3,797 |
|
Datasheet | G2RL | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 8 A | 440VAC, 300VDC - Max | 3520VA, 2400W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
L115F11CM24VDCS.9URELAY GEN PURPOSE SPDT 30A 24V |
2,911 |
|
Datasheet | L115F1 | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 30 A | 277VAC, 110VDC - Max | 8310VA, 3300W | 37.5 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | Class F | 19.2 VDC | - | 15 ms | 15 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | General Purpose | - | - |
|
|
L115F11AK24VDCS.9URELAY GEN PURPOSE SPST 40A 24V |
2,164 |
|
Datasheet | L115F1 | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 40 A | 277VAC, 110VDC - Max | 11080VA, 4400W | 37.5 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | Class F | 19.2 VDC | - | 15 ms | 15 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | General Purpose | - | - |
|
G5LE-14-ACD-DC12RELAY GEN PURPOSE SPDT 10A 12V |
1,088 |
|
Datasheet | G5LE | Tray | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 250VAC, 125VDC - Max | - | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -25°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
G5LE-14-ACD-DC24RELAY GEN PURPOSE SPDT 10A 24V |
1,947 |
|
Datasheet | G5LE | Tray | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 125VDC - Max | - | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -25°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
4-1393238-7RELAY GEN PURPOSE SPST 10A 9V |
1,473 |
|
Datasheet | RT1, SCHRACK | Tube | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 10 A | 400VAC - Max | 4000VA | 28.8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 6.8 VDC | 0.9 VDC | 10 ms | 8 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
J1522CF110VDCRELAY GEN PURPOSE DPDT 10A 110V |
4,523 |
|
Datasheet | J152 | Tray | Active | Chassis Mount | 110VDC | DPDT (2 Form C) | 10 A | 300VAC - Max | 3000VA | 10 mA | Non Latching | - | Plug In | - | - | 82.5 VDC | 11 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
J1512CF12VAC1.2RELAY GEN PURPOSE DPDT 20A 12V |
1,195 |
|
Datasheet | J151 | Tray | Active | Chassis Mount | 12VAC | DPDT (2 Form C) | 12 A | 300VAC - Max | 6000VA | 260.9 mA | Non Latching | - | Plug In | - | - | 9.6 VAC | 3.6 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
AZ21501P-1AH-24DRELAY GEN PURPOSE SPST 30A 24V |
3,410 |
|
Datasheet | AZ21501P | Box | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 50 A | 277VAC, 110VDC - Max | 13850VA, 1200W | 37.5 mA | Latching, Single Coil | - | PC Pin | - | Class F | 19.2 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ762-1A-24AERELAY GEN PURPOSE SPST 20A 24V |
4,462 |
|
Datasheet | AZ762 | Box | Active | Through Hole | 24VAC | SPST-NO (1 Form A) | 20 A | 440VAC, 125VDC - Max | 5540VA, 480W | 31.6 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VAC | 3.6 VAC | 10 ms | 8 ms | -40°C ~ 70°C | - | General Purpose | - | - |
|
|
AZ762-1A-24AEFRELAY GEN PURPOSE SPST 16A 24V |
3,084 |
|
Datasheet | AZ762 | Box | Active | Through Hole | 24VAC | SPST-NO (1 Form A) | 16 A | 440VAC, 150VDC - Max | 5540VA, 480W | 31.6 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VAC | 3.6 VAC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
ALZN5B48RELAY |
1,031 |
|
Datasheet | - | Bulk | Last Time Buy | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
