Power Relays, Over 2 Amps
Explore Power Relays, Over 2 Amps parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G4W-2214P-US-HP DC12RELAY GEN PURPOSE DPST 10A 12V |
508 |
|
Datasheet | G4W | Bulk | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 10 A | 250VAC, 125VDC - Max | 3750VA, 1875W | 66.7 mA | Non Latching | - | PC Pin | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 5 ms | -25°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
ADJH21024RELAY GEN PURPOSE SPST 50A 24V |
150 |
|
Datasheet | ADJH | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 50 A | 480VAC - Max | 24000VA | 41.7 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | Class F | 18 VDC | - | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
MY2N-GS-R AC110/120RELAY GEN PURPOSE DPDT 5A 120V |
549 |
|
Datasheet | MY | Bulk | Active | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 250VAC, 220VDC - Max | 1750VA, 1540W | 27.1 mA | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver (Ag) | General Purpose | - | - |
|

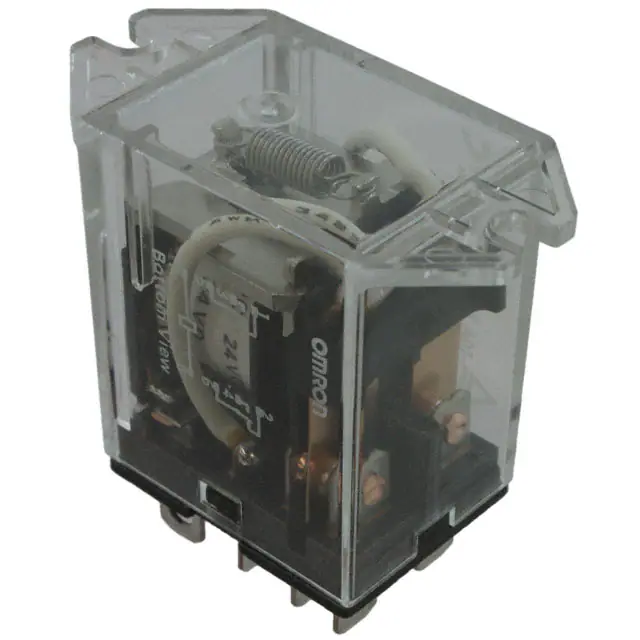

LY2F-DC24RELAY GEN PURPOSE DPDT 10A 24V |
3,777 |
|
Datasheet | LY | Bulk | Active | Chassis Mount | 24VDC | DPDT (2 Form C) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 36.9 mA | Non Latching | - | Plug In | - | - | 19.2 VDC | 2.4 VDC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|
AZ2800-2A-120AERELAY EV CHG SOLAR DPST 40A 120V |
145 |
|
Datasheet | AZ2800 | Tray | Active | Chassis Mount | 120VAC | DPST-NO (2 Form A) | 40 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 33.3 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 96 VAC | 24 VAC | 25 ms | 25 ms | -40°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
2903333RELAY GEN PURPOSE DPDT 8A 24V |
229 |
|
Datasheet | RIF | Bulk | Active | DIN Rail | 24VAC | DPDT (2 Form C) | 8 A | 250VAC, 250VDC - Max | - | 33 mA | Non Latching | Lighted Indicator, Socket Included, Varistor | Spring Terminal | - | - | - | - | 12 ms | 20 ms | -40°C ~ 50°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
APF30224RELAY GEN PURPOSE SPDT 6A 24V |
1,390 |
|
Datasheet | APF | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 6 A | 250VAC - Max | - | 7.1 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 1.2 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
DE2A-12VRELAY GEN PURPOSE DPST 8A 12V |
4,952 |
|
Datasheet | DE | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 8 A | 250VAC, 30VDC - Max | 2500VA, 300W | 16.7 mA | Non Latching | - | PC Pin | - | - | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
.JPG "MY2N DC24 (S)")
|
MY2N DC24 (S)RELAY GEN PURPOSE DPDT 5A 24V |
205 |
|
Datasheet | MY | Tray | Last Time Buy | Socketable | 24VDC | DPDT (2 Form C) | 5 A | 250VAC, 125VDC - Max | 1250VA, 625W | 36.3 mA | Non Latching | Lighted Indicator | Plug In | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -55°C ~ 70°C | Silver (Ag) | General Purpose | - | - |
|
|
MY4-GS-R DC24RELAY GEN PURPOSE 4PDT 3A 24V |
1,112 |
|
Datasheet | MY | Bulk | Active | Socketable | 24VDC | 4PDT (4 Form C) | 6 A | 250VAC, 220VDC - Max | 1500VA, 1320W | 36.3 mA | Non Latching | Mechanical Indicator | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -55°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
AZSR165-1AE-12DLRELAY EV CHG SOLAR SPST 80A 12V |
123 |
|
Datasheet | AZSR165 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 80 A | 690VAC - Max | 55200VA | 184.6 mA | Non Latching | - | PC Pin | - | Class F | 9 VDC | 0.6 VDC | 40 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | EV Charging, Solar | - | - |
|
V23148-A0007-A101RELAY GEN PURPOSE SPDT 7A 24V |
321 |
|
Datasheet | V23148, SCHRACK | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 7 A | 400VAC - Max | 2800VA | 16.7 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 5 ms | 3 ms | -25°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
55.32.9.024.0040RELAY GEN PURPOSE DPDT 10A 24V |
145 |
|
Datasheet | 55 | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 400VAC - Max | 4000VA | 40 mA | Non Latching | Mechanical Indicator, Test Button | Plug In | - | - | 19.2 VDC | 4.8 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
ADY30005RELAY GEN PURPOSE DPST 8A 5V |
106 |
|
Datasheet | ADY | Tray | Active | Through Hole | 5VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 250VAC, 125VDC - Max | 2000VA, 1000W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.5 VDC | 10 ms | 8 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
G2R-14 AC24RELAY GEN PURPOSE SPDT 8A 24V |
1,563 |
|
Datasheet | G2R | Tray | Active | Through Hole | 24VAC | SPDT (1 Form C) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 19.2 VAC | 7.2 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
|
G7L-2A-TUB-CB DC24RELAY GEN PURPOSE DPST 25A 24V |
960 |
|
Datasheet | G7L | Bulk | Active | Chassis Mount | 24VDC | DPST-NO (2 Form A) | 25 A | 250VAC - Max | 6250VA | 79 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 18 VDC | 3.6 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | General Purpose | - | - |
|
|
G7L-2A-TUB-J-CB DC12RELAY GEN PURPOSE DPST 25A 12V |
597 |
|
Datasheet | G7L | Tray | Active | Chassis Mount | 12VDC | DPST-NO (2 Form A) | 25 A | 250VAC - Max | 6250VA | 158 mA | Non Latching | Test Button | Quick Connect - 0.250" (6.3mm) | - | Class B | 9 VDC | 1.8 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | General Purpose | - | - |
|
|
G6BK-1114P-US DC24RELAY GEN PURPOSE SPST 5A 24V |
510 |
|
Datasheet | G6B | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 11.7 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 16.8 VDC | - | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
DE2A-24VRELAY GEN PURPOSE DPST 8A 24V |
1,132 |
|
Datasheet | DE | Tube | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 8 A | 250VAC, 30VDC - Max | 2500VA, 300W | 8.3 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
, MY4-DC24(S), MY4-DC100~110(S).jpg "MY4 DC12 (S)")
|
MY4 DC12 (S)RELAY GEN PURPOSE 4PDT 3A 12V |
718 |
|
Datasheet | MY | Bulk | Last Time Buy | Socketable | 12VDC | 4PDT (4 Form C) | 3 A | 250VAC, 125VDC - Max | 750VA, 375W | 72.7 mA | Non Latching | - | Plug In | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 20 ms | -55°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
Frequently Asked Questions
What are Power Relays, Over 2 Amps components used for?
Power Relays, Over 2 Amps components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Relays, Over 2 Amps part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Relays, Over 2 Amps parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
