Power Relays, Over 2 Amps
Review Power Relays, Over 2 Amps Relays components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

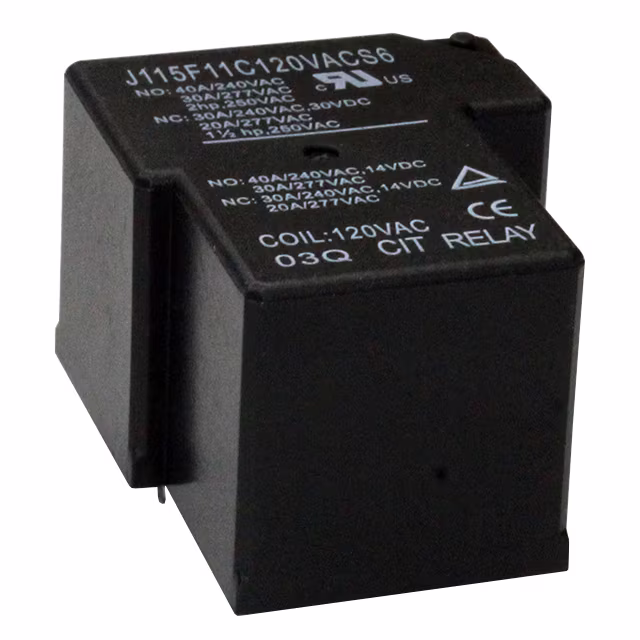

J115F11C120VACS6RELAY GEN PURPOSE SPDT 40A 120V |
150 |
|
Datasheet | J115F1 | Tube | Active | Through Hole | 120VAC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 9600VA, 1120W | 39.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 90 VAC | 36 VAC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

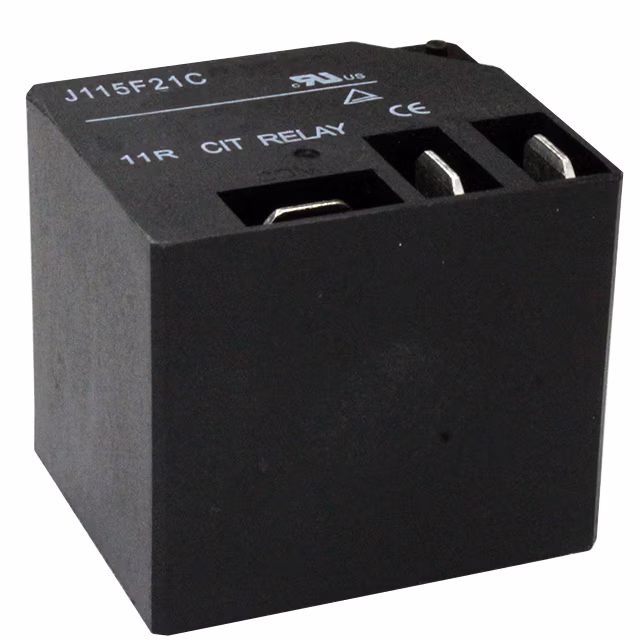

J115F21CH12VDCS61.5URELAY GEN PURPOSE SPDT 50A 12V |
1,271 |
|
Datasheet | J115F | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 125 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | General Purpose | - | - |
|
J115F11A120VACS6RELAY GEN PURPOSE SPST 40A 120V |
384 |
|
Datasheet | J115F1 | Tube | Active | Through Hole | 120VAC | SPST-NO (1 Form A) | 40 A | 277VAC, 110VDC - Max | 9600VA, 1120W | 39.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 90 VAC | 36 VAC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
J115F31AL277VACSRELAY GEN PURPOSE SPST 40A 277V |
403 |
|
Datasheet | J115F3 | Tray | Active | Chassis Mount | 277VAC | SPST-NO (1 Form A) | 40 A | 277VAC, 110VDC - Max | 11080VA, 4400W | 13.7 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | Sealed - Fully | Class F | 207 VAC | 83.1 VAC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
L114FL1CS5VDC.60DRELAY GEN PURPOSE SPDT 20A 5V |
746 |
|
Datasheet | L114FL | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 20 A | 300VAC - Max | 6000VA | 119 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 3.5 VDC | - | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
J115F31CH48VDCS61.5URELAY GEN PURPOSE SPDT 50A 48V |
329 |
|
Datasheet | J115F | Tray | Active | Chassis Mount | 48VDC | SPDT (1 Form C) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 31.3 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | Sealed - Fully | Class F | 36 VDC | 4.8 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | General Purpose | - | - |
|
J115F11C220VACS6RELAY GEN PURPOSE SPDT 40A 220V |
644 |
|
Datasheet | J115F1 | Tube | Active | Through Hole | 220VAC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 9600VA, 1120W | 16.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 165 VAC | 66 VAC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
J1512CT48VDC.9RELAY GEN PURPOSE DPDT 20A 48V |
209 |
|
Datasheet | J151 | Tray | Active | Socketable | 48VDC | DPDT (2 Form C) | 12 A | 300VAC - Max | 6000VA | 18.5 mA | Non Latching | - | Plug In | - | - | 36 VDC | 4.8 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
J1512CF48VDC.9RELAY GEN PURPOSE DPDT 20A 48V |
103 |
|
Datasheet | J151 | Tray | Active | Chassis Mount | 48VDC | DPDT (2 Form C) | 12 A | 300VAC - Max | 6000VA | 18.5 mA | Non Latching | - | Plug In | - | - | 36 VDC | 4.8 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
J1511AF12VDC.9RELAY GEN PURPOSE SPST 20A 12V |
330 |
|
Datasheet | J151 | Tray | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 12 A | 300VAC - Max | 6000VA | 75 mA | Non Latching | - | Plug In | - | - | 9 VDC | 1.2 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
Frequently Asked Questions
What are Power Relays, Over 2 Amps components used for?
Power Relays, Over 2 Amps components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Relays, Over 2 Amps part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Relays, Over 2 Amps parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
