Power Relays, Over 2 Amps
Review Power Relays, Over 2 Amps Relays components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
J115F21CH9VDCS61.5URELAY GEN PURPOSE SPDT 50A 9V |
1,112 |
|
Datasheet | J115F | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 166.7 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 6.75 VDC | 0.9 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | General Purpose | - | - |
|
J115F11CH5VDCSH1.5URELAY GEN PURPOSE SPDT 50A 5V |
4,779 |
|
Datasheet | J115F | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 299.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | General Purpose | - | - |
|
|
J115F11CH9VDCSH1.5URELAY GEN PURPOSE SPDT 50A 9V |
4,673 |
|
Datasheet | J115F | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 166.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 6.75 VDC | 0.9 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | General Purpose | - | - |
|

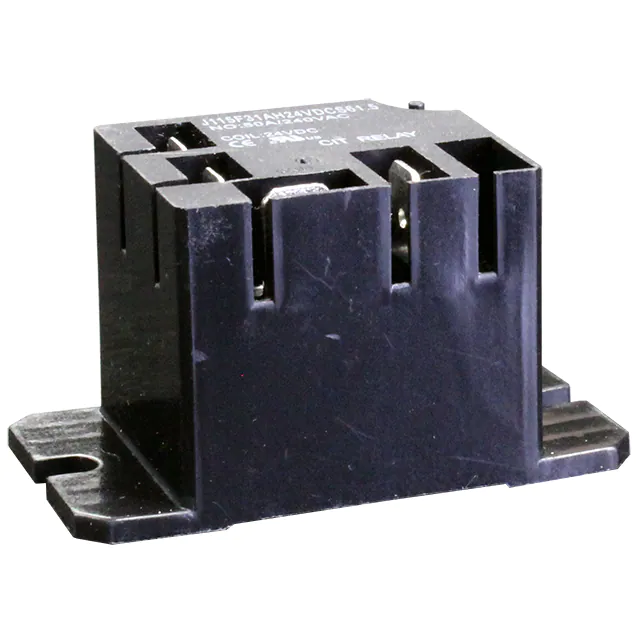

J115F31AH24VDCS61.5RELAY GEN PURPOSE SPST 50A 24V |
1,131 |
|
Datasheet | J115F | Tray | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 62.5 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
J115F31AH9VDCS61.5URELAY GEN PURPOSE SPST 50A 9V |
4,564 |
|
Datasheet | J115F | Tray | Active | Chassis Mount | 9VDC | SPST-NO (1 Form A) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 166.7 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | Sealed - Fully | Class F | 6.75 VDC | 0.9 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | General Purpose | - | - |
|
L114FL1CS24VDC.60RDRELAY GEN PURPOSE SPDT 20A 24V |
1,597 |
|
Datasheet | L114FL | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 20 A | 300VAC - Max | 6000VA | 27.1 mA | Latching, Dual Coil | Reverse Coil Polarity | PC Pin | Sealed - Fully | - | 16.8 VDC | - | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
L114FL1CS24VDC.60DARELAY GEN PURPOSE SPDT 20A 24V |
3,790 |
|
Datasheet | L114FL | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 20 A | 300VAC - Max | 6000VA | 27.1 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 16.8 VDC | - | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
J115F11AH48VDCSH1.5URELAY GEN PURPOSE SPST 50A 48V |
1,339 |
|
Datasheet | J115F | Tube | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 31.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 36 VDC | 4.8 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | General Purpose | - | - |
|
|
L114FL1CS9VDC.40URELAY GEN PURPOSE SPDT 20A 9V |
1,575 |
|
Datasheet | L114FL | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 20 A | 300VAC - Max | 6000VA | 44.4 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 6.3 VDC | - | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | General Purpose | - | - |
|
|
J115F11CH48VDCS61.5URELAY GEN PURPOSE SPDT 50A 48V |
1,750 |
|
Datasheet | J115F | Tube | Active | Through Hole | 48VDC | SPDT (1 Form C) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 31.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 36 VDC | 4.8 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | General Purpose | - | - |
Frequently Asked Questions
What are Power Relays, Over 2 Amps components used for?
Power Relays, Over 2 Amps components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Relays, Over 2 Amps part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Relays, Over 2 Amps parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
