Power Relays, Over 2 Amps
Explore Power Relays, Over 2 Amps parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FCA-125-AY4FCA-125-AY4 |
2,081 |
|
Datasheet | FCA-125, CII | Bulk | Active | Chassis Mount | 28VDC | SPDT (1 Form C) | 25 A | 115VAC, 28VDC - Max | 2875VA, 700W | 87.5 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
FCA-325-AY4RELAY GEN PURPOSE 3PDT 25A 28V |
2,978 |
|
Datasheet | FCA-325, CII | Bulk | Active | Chassis Mount | 28VDC | 3PDT (3 Form C) | 25 A | 115VAC, 28VDC - Max | 2875VA, 700W | 96.6 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 15 ms | 15 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO), Gold (Au) | General Purpose | - | - |
|
GPDRELAY GEN PURPOSE SPDT 10A 125V |
3,650 |
|
Datasheet | GP, AGASTAT | Bulk | Active | Socketable | 125VDC | SPDT (1 Form C) | 10 A | - | - | - | Non Latching | - | Plug In | - | - | 100 VDC | - | 15 ms | - | 0°C ~ 60°C | Silver (Ag) | General Purpose | - | - |
|

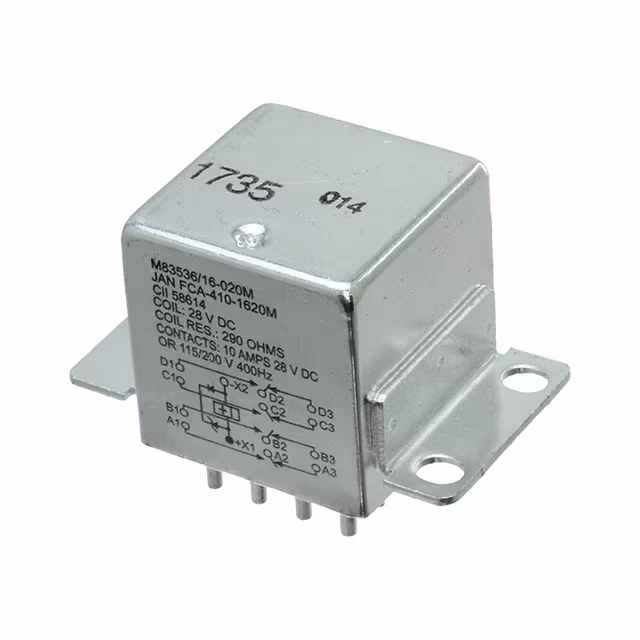

FCA-410-1620MRELAY GEN PURPOSE 4PDT 10A 28V |
4,316 |
|
Datasheet | FCA-410, CII | Bulk | Active | Chassis Mount | 28VDC | 4PDT (4 Form C) | 10 A | 115VAC, 28VDC - Max | 1150VA, 280W | 96.6 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 15 ms | 15 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | General Purpose | Military | - |
|

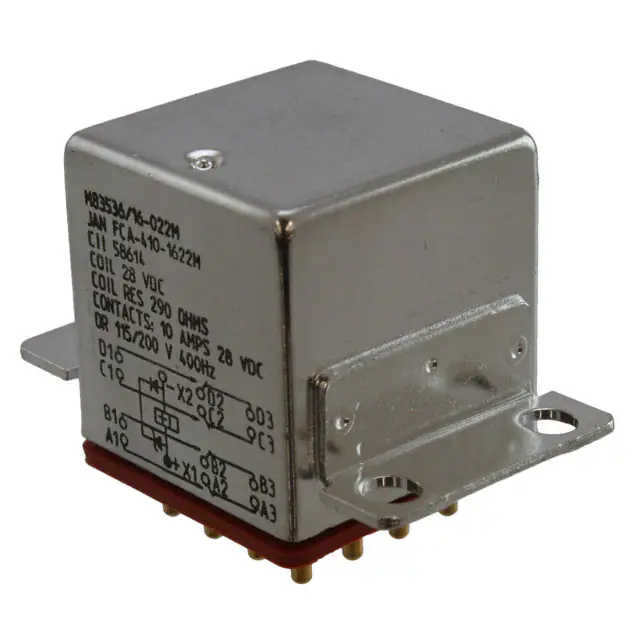

FCA-410-1622MRELAY GEN PURPOSE 4PDT 10A 28V |
1,629 |
|
Datasheet | FCA-410, CII | Bulk | Active | Chassis Mount | 28VDC | 4PDT (4 Form C) | 10 A | 115VAC, 28VDC - Max | 1150VA, 280W | 96.6 mA | Non Latching | - | Plug In | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 15 ms | 15 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | General Purpose | Military | - |
|
|
FCA-410-AY4FCA-410-AY4 |
2,197 |
|
Datasheet | FCA-410, CII | Bulk | Active | Chassis Mount | 28VDC | 4PDT (4 Form C) | 10 A | 115VAC, 28VDC - Max | 1150VA, 280W | 96.6 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 2.3 VDC | 15 ms | 15 ms | -70°C ~ 125°C | - | General Purpose | - | - |
|

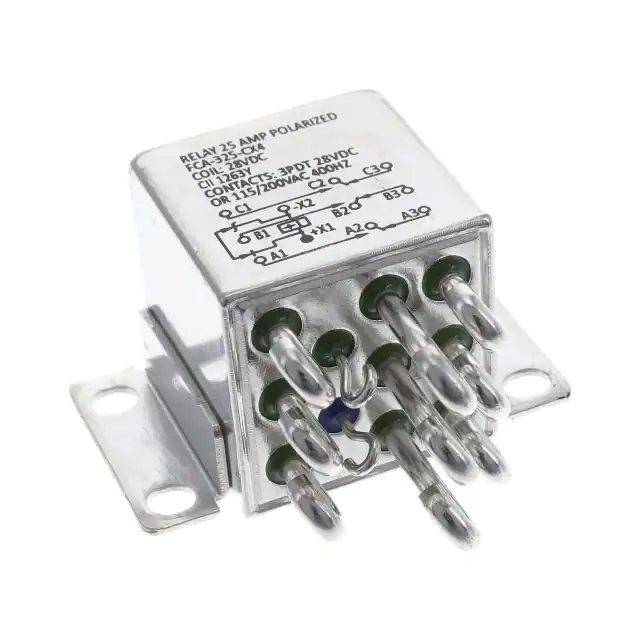

FCA-325-CX4RELAY GEN PURPOSE 3PDT 25A 28V |
1,099 |
|
Datasheet | FCA-325, CII | Bulk | Active | Chassis Mount | 28VDC | 3PDT (3 Form C) | 25 A | 115VAC, 28VDC - Max | 2875VA, 700W | 71.8 mA | Non Latching | Diode | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 2.3 VDC | 15 ms | 15 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO), Gold (Au) | General Purpose | - | - |
|
K81C235RELAY GEN PURPOSE SPDT 5A 12V |
1,904 |
|
Datasheet | K81C, KILOVAC | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 5 A | 10000VDC - Max | - | 171.4 mA | Non Latching | - | PC Pin | - | - | 8 VDC | 0.5 VDC | 10 ms | 10 ms | -55°C ~ 85°C | - | General Purpose | - | - |
|
K81C345RELAY GEN PURPOSE SPDT 10A 26.5V |
1,222 |
|
Datasheet | K81C, KILOVAC | Bulk | Active | Through Hole | 26.5VDC | SPDT (1 Form C) | 10 A | 10000VDC - Max | - | 91.4 mA | Non Latching | - | PC Pin, Wire Leads | - | - | 16 VDC | 1 VDC | 10 ms | 10 ms | -55°C ~ 85°C | - | General Purpose | - | - |
|
K81C335RELAY GEN PURPOSE SPDT 5A 26.5V |
3,400 |
|
Datasheet | K81C, KILOVAC | Bulk | Active | Through Hole | 26.5VDC | SPDT (1 Form C) | 5 A | 10000VDC - Max | - | 91.4 mA | Non Latching | - | PC Pin | - | - | 16 VDC | 1 VDC | 10 ms | 10 ms | -55°C ~ 85°C | - | General Purpose | - | - |
|
PD10AB57RELAY GEN PURPOSE SPST 10A 24V |
4,334 |
|
Datasheet | PD10, KILOVAC | Bulk | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 10 A | 320VDC - Max | 3200VA | 82.8 mA | Non Latching | - | Screw Terminal | Sealed - Vacuum | - | 16 VDC | 1 VDC | 10 ms | 10 ms | -40°C ~ 85°C | - | General Purpose | - | - |
|
|
FCA-150-CY4FCA-150-CY4=RELAY |
2,471 |
|
Datasheet | FCA-150, CII | Bulk | Active | Chassis Mount | 28VDC | SPST-NO (DM) (1 Form X) | 50 A | - | - | 96.6 mA | Non Latching | Diode | Solder Hook, Stud | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 15 ms | 15 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
KC-11RELAY GEN PURPOSE SPDT 50A 26.5V |
2,353 |
|
Datasheet | KC, KILOVAC | Bulk | Active | Panel Mount | 26.5VDC | SPDT (1 Form C) | 50 A | - | - | 106 mA | Non Latching | - | Solder Turret | Sealed - Vacuum | - | 16 VDC | 1 VDC | 15 ms | 9 ms | -55°C ~ 125°C | - | General Purpose | - | - |
|
J107F1CS2012VDC.80RELAY GEN PURPOSE SPDT 20A 12V |
3,351 |
|
Datasheet | J107F | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 20 A | 380VAC, 110VDC - Max | 7600VA, 2200W | 66.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
J104A2C12VDC.40SRELAY GEN PURPOSE DPDT 3A 12V |
4,697 |
|
Datasheet | J104 | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 3 A | 250VAC, 220VDC - Max | 750VA, 660W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 4.5 ms | 1.5 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
1461400-5RELAY GEN PURPOSE SPST 5A 24V |
4,433 |
|
Datasheet | OJE, OEG | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 277VAC, 30VDC - Max | 1385VA, 150W | 18.8 mA | Non Latching | - | PC Pin | - | Class F | 16.8 VDC | 1.2 VDC | 10 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
OJE-SS-124LMH,000RELAY GEN PURPOSE SPST 8A 24V |
3,075 |
|
Datasheet | OJE, OEG | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 8 A | 277VAC, 30VDC - Max | 2216VA, 240W | 8.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 18 VDC | 1.2 VDC | 15 ms | 4 ms | -30°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
J104B2C12VDC.15SRELAY GEN PURPOSE DPDT 3A 12V |
1,075 |
|
Datasheet | J104 | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 3 A | 250VAC, 220VDC - Max | 750VA, 660W | 12.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 4.5 ms | 1.5 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
G5Q-1A DC24RELAY GEN PURPOSE SPST 10A 24V |
3,152 |
|
Datasheet | G5Q | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 30VDC - Max | 2770VA, 300 W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 18 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 105°C | Silver Alloy | General Purpose | - | - |
|
J1021CS53VDC.45RELAY GEN PURPOSE SPDT 5A 3V |
3,533 |
|
Datasheet | J102 | Tube | Active | Through Hole | 3VDC | SPDT (1 Form C) | 5 A | 300VAC, 150VDC - Max | 1500VA, 750W | 150 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.25 VDC | 0.3 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
