Power Relays, Over 2 Amps
Review Power Relays, Over 2 Amps Relays components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HC4D-HTM-DC48VRELAY GEN PURPOSE 4PDT 3A 48V |
1,563 |
|
Datasheet | HC | Bulk | Obsolete | Chassis Mount | 48VDC | 4PDT (4 Form C) | 3 A | 250VAC - Max | 750VA | 18.5 mA | Non Latching | - | Plug In | - | - | 38.4 VDC | 4.8 VDC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
HG2-AC12VRELAY GEN PURPOSE DPDT 20A 12V |
4,568 |
|
Datasheet | HG | Bulk | Obsolete | Socketable | 12VAC | DPDT (2 Form C) | 20 A | 250VAC - Nom | - | 300 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 9.6 VAC | 3.6 VAC | 15 ms | 15 ms | -50°C ~ 40°C | Silver Alloy | General Purpose | - | - |
|
|
HG2-AC200VRELAY GEN PURPOSE DPDT 20A 200V |
1,152 |
|
Datasheet | HG | Bulk | Obsolete | Socketable | 200VAC | DPDT (2 Form C) | 20 A | 250VAC - Nom | - | 18 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 160 VAC | 60 VAC | 15 ms | 15 ms | -50°C ~ 40°C | Silver Alloy | General Purpose | - | - |
|
|
HG2-AC220VRELAY GEN PURPOSE DPDT 20A 220V |
3,058 |
|
Datasheet | HG | Bulk | Obsolete | Socketable | 220VAC | DPDT (2 Form C) | 20 A | 250VAC - Nom | - | 16.4 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 176 VAC | 66 VAC | 15 ms | 15 ms | -50°C ~ 40°C | Silver Alloy | General Purpose | - | - |
|
|
HG2-AC240VRELAY GEN PURPOSE DPDT 20A 240V |
2,835 |
|
Datasheet | HG | Bulk | Obsolete | Socketable | 240VAC | DPDT (2 Form C) | 20 A | 250VAC - Nom | - | 15 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 192 VAC | 72 VAC | 15 ms | 15 ms | -50°C ~ 40°C | Silver Alloy | General Purpose | - | - |
|
|
HG2-AC24VRELAY GEN PURPOSE DPDT 20A 24V |
3,999 |
|
Datasheet | HG | Bulk | Obsolete | Socketable | 24VAC | DPDT (2 Form C) | 20 A | 250VAC - Nom | - | 150 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 19.2 VAC | 7.2 VAC | 15 ms | 15 ms | -50°C ~ 40°C | Silver Alloy | General Purpose | - | - |
|
|
HG2-AC48VRELAY GEN PURPOSE DPDT 20A 48V |
2,493 |
|
Datasheet | HG | Bulk | Obsolete | Socketable | 48VAC | DPDT (2 Form C) | 20 A | 250VAC - Nom | - | 75 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 38.4 VAC | 14.4 VAC | 15 ms | 15 ms | -50°C ~ 40°C | Silver Alloy | General Purpose | - | - |
|
|
HG2-AC6VRELAY GEN PURPOSE DPDT 20A 6V |
3,465 |
|
Datasheet | HG | Bulk | Obsolete | Socketable | 6VAC | DPDT (2 Form C) | 20 A | 250VAC - Nom | - | 600 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 4.8 VAC | 1.8 VAC | 15 ms | 15 ms | -50°C ~ 40°C | Silver Alloy | General Purpose | - | - |
|
|
HG2-DC110VRELAY GEN PURPOSE DPDT 20A 110V |
4,850 |
|
Datasheet | HG | Bulk | Obsolete | Socketable | 110VDC | DPDT (2 Form C) | 20 A | 250VAC - Nom | - | 14.4 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 88 VDC | 11 VDC | 15 ms | 15 ms | -50°C ~ 40°C | Silver Alloy | General Purpose | - | - |
|

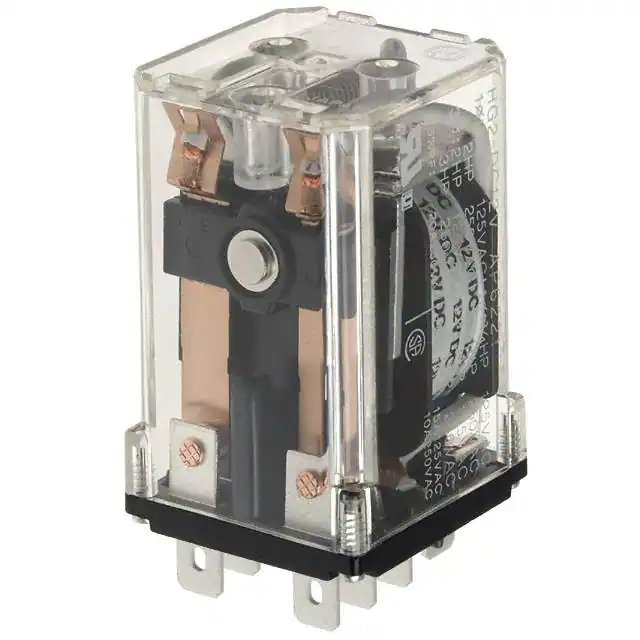

HG2-DC12VRELAY GEN PURPOSE DPDT 20A 12V |
4,853 |
|
Datasheet | HG | Tube | Obsolete | Socketable | 12VDC | DPDT (2 Form C) | 20 A | 250VAC - Nom | - | 120 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 9.6 VDC | 1.2 VDC | 15 ms | 15 ms | -50°C ~ 40°C | Silver Alloy | General Purpose | - | - |
Frequently Asked Questions
What are Power Relays, Over 2 Amps components used for?
Power Relays, Over 2 Amps components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Relays, Over 2 Amps part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Relays, Over 2 Amps parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
