Power Relays, Over 2 Amps
Review Power Relays, Over 2 Amps Relays components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G7L-1A-P-01-CB DC24RELAY GEN PURPOSE SPST 20A 24V |
2,079 |
|
Datasheet | G7L | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 5000VA | 79 mA | Non Latching | - | PC Pin | - | Class B | 18 VDC | 3.6 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | General Purpose | - | - |
|
G2R-2-SN-AC120RELAY GEN PURPOSE DPDT 5A 120V |
2,502 |
|
Datasheet | G2RS | Bulk | Obsolete | Socketable | 120VAC | DPDT (2 Form C) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 7.5 mA | Non Latching | Lighted Indicator | Plug In | - | - | 96 VAC | 36 VAC | 15 ms | 15 ms | -40°C ~ 70°C | - | General Purpose | - | - |
|
|
G2R-2-SND-DC12RELAY GEN PURPOSE DPDT 5A 12V |
3,238 |
|
Datasheet | G2RS | Bulk | Obsolete | Socketable | 12VDC | DPDT (2 Form C) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 43.2 mA | Non Latching | Diode, Lighted Indicator | Plug In | - | - | 8.4 VDC | 1.8 VDC | 15 ms | 20 ms | -40°C ~ 70°C | - | General Purpose | - | - |
, G2R-1-S-DC12S, G2R-1-S-DC24S, G2R-1-S-DC48(S).jpg "G2R-1-S-AC240")
|
G2R-1-S-AC240RELAY GEN PURPOSE SPDT 10A 240V |
4,125 |
|
Datasheet | G2RS | Bulk | Obsolete | Socketable | 240VAC | SPDT (1 Form C) | 10 A | 440VAC, 125VDC - Max | 4400VA, 1250W | 3.2 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 192 VAC | 72 VAC | 15 ms | 10 ms | -40°C ~ 70°C | - | General Purpose | - | - |
|
|
G2R-1-SN-AC240RELAY GEN PURPOSE SPDT 10A 240V |
1,730 |
|
Datasheet | G2RS | Bulk | Obsolete | Socketable | 240VAC | SPDT (1 Form C) | 10 A | 440VAC, 125VDC - Max | 4400VA, 1250W | 3.2 mA | Non Latching | Lighted Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 192 VAC | 72 VAC | 15 ms | 10 ms | -40°C ~ 70°C | - | General Purpose | - | - |
|
G7L-2A-P-CB DC100RELAY GEN PURPOSE DPST 20A 100V |
3,441 |
|
Datasheet | G7L | Bulk | Obsolete | Through Hole | 100VDC | DPST-NO (2 Form A) | 20 A | 250VAC - Max | 5000VA | 19 mA | Non Latching | - | PC Pin | - | Class B | 75 VDC | 15 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | General Purpose | - | - |
|
|
G6D-F4B DC12RELAY GEN PURPOSE SPST 3A 12V |
4,525 |
|
Datasheet | G6D-F4B | Bulk | Active | DIN Rail | 12VDC | SPST-NO (1 Form A) x 4 | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 16.7 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | 8.4 VDC | 1.2 VDC | 10 ms | 15 ms | -25°C ~ 55°C | - | General Purpose | - | - |
|

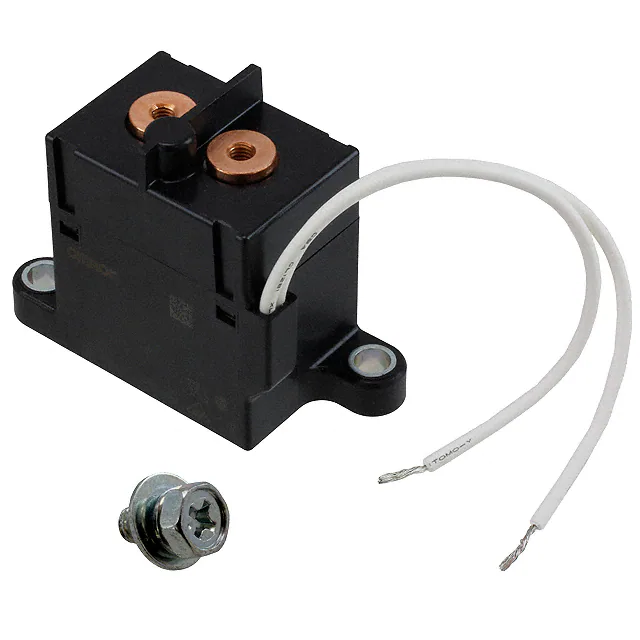

G9EN-1-UVD-DC12RELAY GEN PURPOSE SPST 60A 12V |
1,262 |
|
Datasheet | G9EN | Bulk | Obsolete | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 60 A | 400VDC - Max | 24000VA | 417 mA | Non Latching | - | Screw Terminal | - | - | 6.9 VDC | 0.6 VDC | 40 ms | 20 ms | -40°C ~ 85°C | - | General Purpose | - | - |
|
|
G6D-4B DC24RELAY GEN PURPOSE SPST 3A 24V |
2,230 |
|
Datasheet | G6D-F4B | Bulk | Active | DIN Rail | 24VDC | SPST-NO (1 Form A) x 4 | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 8.3 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | 16.8 VDC | 2.4 VDC | 10 ms | 15 ms | -25°C ~ 55°C | - | General Purpose | - | - |
|
G6B-47BND DC5RELAY GEN PURPOSE SPST 5A 5V |
3,631 |
|
Datasheet | G6B-4 | Bulk | Active | DIN Rail | 5VDC | SPST-NO (1 Form A) x 4 | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 35.5 mA | Non Latching | Socket Included | Screw Terminal | - | - | 4 VDC | 0.5 VDC | 10 ms | 15 ms | -25°C ~ 55°C | - | General Purpose | - | - |
Frequently Asked Questions
What are Power Relays, Over 2 Amps components used for?
Power Relays, Over 2 Amps components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Relays, Over 2 Amps part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Relays, Over 2 Amps parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
