Power Relays, Over 2 Amps
Review Power Relays, Over 2 Amps Relays components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

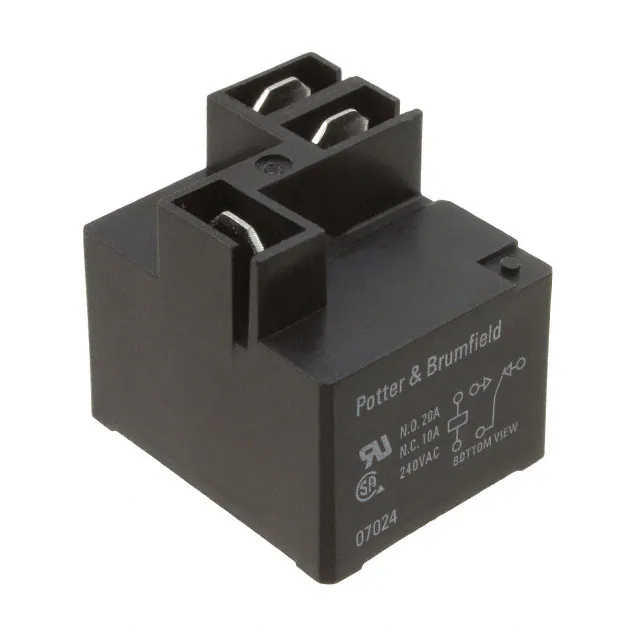

T9AS5L22-12RELAY GEN PURPOSE SPDT 20A 12V |
2,838 |
|
Datasheet | T9A | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 20 A | 277VAC - Max | 5540VA | 75 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
T9GV5L24-110RELAY GEN PURPOSE SPDT 20A 110V |
104 |
|
Datasheet | T9G | Bulk | Active | Through Hole | 110VDC | SPDT (1 Form C) | 20 A | 480VAC - Max | 9600VA | 8.2 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Flux Protection | Class B | 82.5 VDC | 11 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
T9GS5L24-110RELAY GEN PURPOSE SPDT 20A 110V |
105 |
|
Datasheet | T9G | Tube | Active | Through Hole | 110VDC | SPDT (1 Form C) | 20 A | 480VAC - Max | 9600VA | 8.2 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 82.5 VDC | 11 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
3-1415402-1RELAY GEN PURPOSE SPDT 16A 12V |
1,240 |
|
Datasheet | RT1, SCHRACK | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 50 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | 6.6 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
8-1415528-1RELAY GEN PURPOSE SPST 16A 5V |
4,103 |
|
Datasheet | RT1, Inrush, SCHRACK | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 80 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | Class F | 3.5 VDC | - | 10 ms | 10 ms | -10°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
RY613048RELAY GEN PURPOSE SPDT 8A 48V |
501 |
|
Datasheet | RY, SCHRACK | Tube | Active | Through Hole | 48VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 5.1 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 33.6 VDC | 4.8 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
1-1415537-8RELAY GEN PURPOSE DPST 8A 12V |
415 |
|
Datasheet | RT2, SCHRACK | Bulk | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 8 A | 400VAC - Max | 3200VA | 50 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | 6.6 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
RT424A06RELAY GEN PURPOSE DPDT 8A 6V |
895 |
|
Datasheet | RT2, SCHRACK | Bulk | Active | Through Hole | 6VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 14.2 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | Class F | 4.2 VDC | - | 10 ms | 5 ms | -10°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
2027395-7RELAY GEN PURPOSE SPST 35A 12V |
473 |
|
Datasheet | T9S | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 35 A | 277VAC - Max | 9695VA | 188 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9.6 VDC | 0.8 VDC | 18 ms | 15 ms | -40°C ~ 85°C | Silver (Ag) | General Purpose | - | - |
|
PT270048RELAY GEN PURPOSE DPDT 12A 48V |
1,359 |
|
Datasheet | PT, SCHRACK | Bulk | Active | Socketable | 48VDC | DPDT (2 Form C) | 12 A | 400VAC - Max | 4800VA | 15.6 mA | Non Latching | Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.110" (2.8mm) | - | Class F | 36 VDC | 4.8 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
Frequently Asked Questions
What are Power Relays, Over 2 Amps components used for?
Power Relays, Over 2 Amps components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Relays, Over 2 Amps part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Relays, Over 2 Amps parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
