Power Relays, Over 2 Amps
Review Power Relays, Over 2 Amps Relays components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
K10P-11A15-12RELAY GEN PURPOSE DPDT 15A 12V |
250 |
|
Datasheet | K10 | Tray | Active | Socketable | 12VAC | DPDT (2 Form C) | 15 A | 120VAC - Nom | - | 100 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 10.2 VAC | 1.2 VAC | 13 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
KUP-11D55-48RELAY GEN PURPOSE DPDT 10A 48V |
122 |
|
Datasheet | KUP | Bulk | Active | Chassis Mount | 48VDC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 26.7 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 36 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

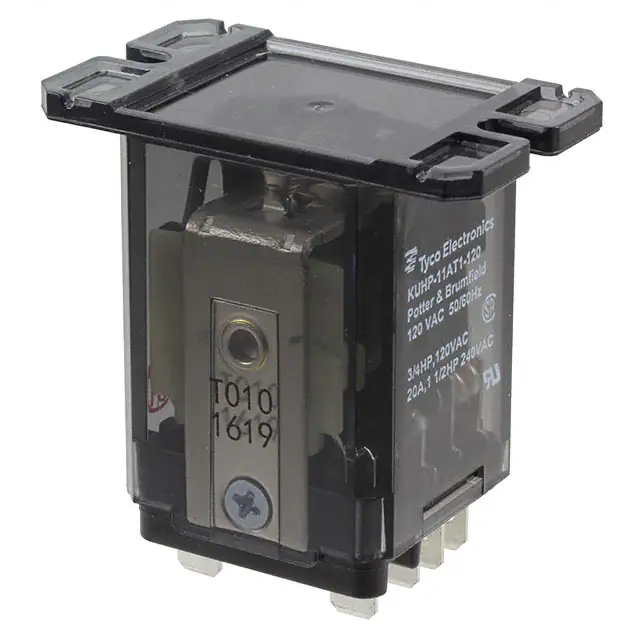

KUHP-11AT1-120RELAY GEN PURPOSE DPDT 20A 120V |
4,071 |
|
Datasheet | KUHP | Bulk | Active | Chassis Mount | 120VAC | DPDT (2 Form C) | 20 A | 240VAC - Max | 4800VA | 24 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 102 VAC | - | 20 ms | 20 ms | -45°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

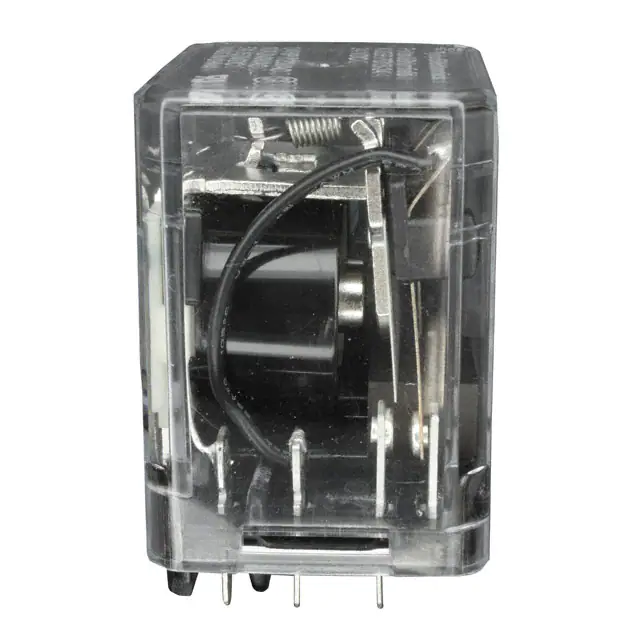

KUEP-7D15-24RELAY GEN PURPOSE DPST 10A 24V |
109 |
|
Datasheet | KUEP | Bulk | Active | Socketable | 24VDC | DPST-NO (2 Form A) | 10 A | 150VDC - Max | 1500VA | 75 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 18 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
T92S11D12-110BRIDGE 1PH KBPC8-PB10 1000V 150C |
121 |
|
Datasheet | T92 | Bulk | Active | Through Hole | 110VDC | DPDT (2 Form C) | 30 A | 600VAC - Max | 18000VA | 15.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 82.5 VDC | 11 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
KRPA-14DG-48RELAY GEN PURPOSE 3PDT 10A 48V |
185 |
|
Datasheet | KRPA | Bulk | Active | Socketable | 48VDC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 26.7 mA | Non Latching | - | Plug In, 11 Pin (Octal) | - | Class B | 36 VDC | - | - | - | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
R10-E1Y2-V185RELAY GEN PURPOSE DPDT 3A 12V |
228 |
|
Datasheet | R10 | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 3 A | 120VAC - Nom | - | 64.9 mA | Non Latching | - | Plug In | - | - | 9 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | General Purpose | - | - |
|
|
R10-E1Y2-V52RELAY GEN PURPOSE DPDT 3A 6V |
234 |
|
Datasheet | R10 | Bulk | Active | Socketable | 6VDC | DPDT (2 Form C) | 3 A | 120VAC - Nom | - | 115 mA | Non Latching | - | Plug In | - | - | 4.5 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | General Purpose | - | - |
|
KUP-11D15-48RELAY GEN PURPOSE DPDT 10A 48V |
130 |
|
Datasheet | KUP | Bulk | Active | Socketable | 48VDC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 26.7 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 36 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
R10-E1X4-V185RELAY GEN PURPOSE 4PDT 5A 12V |
735 |
|
Datasheet | R10 | Bulk | Active | Socketable | 12VDC | 4PDT (4 Form C) | 5 A | 120VAC - Nom | - | 64.9 mA | Non Latching | - | Plug In | - | - | 9 VDC | - | - | - | -55°C ~ 75°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
Frequently Asked Questions
What are Power Relays, Over 2 Amps components used for?
Power Relays, Over 2 Amps components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Relays, Over 2 Amps part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Relays, Over 2 Amps parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
