Power Relays, Over 2 Amps
Review Power Relays, Over 2 Amps Relays components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT571012RELAY GEN PURPOSE 4PDT 6A 12V |
702 |
|
Datasheet | PT, SCHRACK | Bulk | Active | Through Hole | 12VDC | 4PDT (4 Form C) | 6 A | 240VAC - Max | 1440VA | 62.5 mA | Non Latching | Mechanical Indicator, Test Button | PC Pin | - | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
T9AS1D22-48RELAY GEN PURPOSE SPST 30A 48V |
196 |
|
Datasheet | T9A | Bulk | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 8310VA | 21 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 36 VDC | 4.8 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

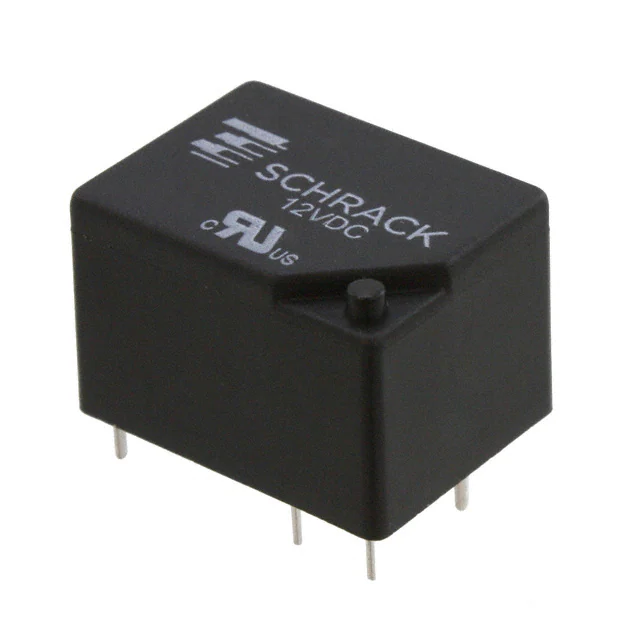

V23148A1105A101RELAY GEN PURPOSE SPDT 5A 12V |
264 |
|
Datasheet | V23148, SCHRACK | Tray | Active | Through Hole | 12VDC | SPDT (1 Form C) | 5 A | 400VAC - Max | 2000VA | 16.7 mA | Non Latching | - | PC Pin | - | - | 8.8 VDC | 1.2 VDC | 7 ms | 3 ms | -25°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
2-1393240-8RELAY GEN PURPOSE SPST 16A 12V |
7,813 |
|
Datasheet | RT1, Inrush, SCHRACK | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 50 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | - | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
RT424A12RELAY GEN PURPOSE DPDT 8A 12V |
17,294 |
|
Datasheet | RT2, SCHRACK | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 14.2 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | - | 10 ms | 5 ms | -10°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
RT424A05RELAY GEN PURPOSE DPDT 8A 5V |
1,318 |
|
Datasheet | RT2, SCHRACK | Box | Active | Through Hole | 5VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 14.2 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | Class F | 3.5 VDC | - | 10 ms | 5 ms | -10°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
PT271730RELAY GEN PURPOSE DPDT 12A 230V |
139 |
|
Datasheet | PT, SCHRACK | Bulk | Active | Through Hole | 230VAC | DPDT (2 Form C) | 12 A | 400VAC - Max | 4800VA | 11.8 mA | Non Latching | Mechanical Indicator, Test Button | PC Pin | - | Class F | 184 VAC | 69 VAC | - | - | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
7-1415072-1RELAY GEN PURPOSE DPDT 8A 12V |
3,172 |
|
Datasheet | RT2, SCHRACK | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 50 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | Class F | 8.4 VDC | 6.6 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

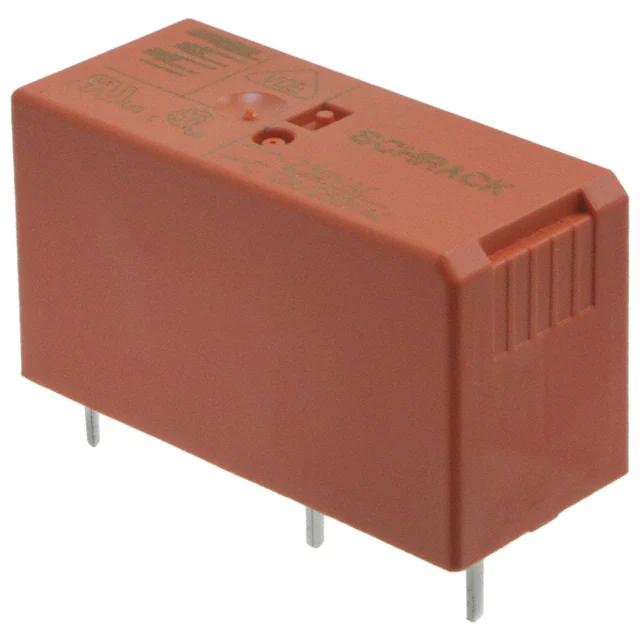

RT214730RELAY GEN PURPOSE SPDT 12A 230V |
680 |
|
Datasheet | RT1, SCHRACK | Tube | Active | Through Hole | 230VAC | SPDT (1 Form C) | 12 A | 400VAC - Max | 4800VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 172.5 VAC | 34.5 VAC | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
V23092A1012A801RELAY GEN PURPOSE SPDT 6A 12V |
3,035 |
|
Datasheet | SNR, SCHRACK | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 0.6 VDC | 12 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
Frequently Asked Questions
What are Power Relays, Over 2 Amps components used for?
Power Relays, Over 2 Amps components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Relays, Over 2 Amps part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Relays, Over 2 Amps parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
