Power Relays, Over 2 Amps
Review Power Relays, Over 2 Amps Relays components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MT231024RELAY GEN PURPOSE DPDT 10A 24V |
3,657 |
|
Datasheet | MT, SCHRACK | Tray | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 400VAC - Max | 2500VA | 50.5 mA | Non Latching | Test Button | Plug In, 8 Pin (Octal) | - | Class B | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
15733T300RELAY GEN PURPOSE 3PDT 120V |
3,423 |
|
Datasheet | 157, CII | Bulk | Active | Socketable | 120VAC | 3PDT (3 Form C) | 15 A | 277VAC, 28 VDC - Nom | 3.1VA | 53.3 mA | Non Latching | - | PC Pin, Quick Connect - 0.187" (4.7mm) | - | - | 102 VAC | - | 20 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
5-1415546-3RELAY GEN PURPOSE DPDT 25A 24V |
3,396 |
|
Datasheet | RM, SCHRACK | Bulk | Obsolete | DIN Rail | 24VDC | DPDT (2 Form C) | 25 A | 400VAC - Max | 10000VA | 50 mA | Non Latching | Mechanical Indicator, Test Button | Quick Connect - 0.250" (6.3mm) | - | - | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -45°C ~ 65°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
5-1415546-4RELAY GEN PURPOSE DPDT 25A 24V |
3,983 |
|
Datasheet | RM, SCHRACK | Bulk | Obsolete | DIN Rail | 24VDC | DPDT (2 Form C) | 25 A | 400VAC - Max | 10000VA | 50 mA | Non Latching | Mechanical Indicator, Test Button | Quick Connect - 0.250" (6.3mm) | - | - | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -45°C ~ 65°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
S89R5ABD1-24RELAY IMPULSE SPDT 15A 24V |
2,167 |
|
Datasheet | S89R | Bulk | Obsolete | Chassis Mount | 24VAC | SPDT (1 Form C) | 15 A | 277VAC - Max | 4155VA | 375 mA | Latching, Single Coil | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 20.4 VAC | - | - | - | -10°C ~ 60°C | - | Impulse | - | - |
|
|
S89R5ABD1-120RELAY IMPULSE SPDT 15A 120V |
3,103 |
|
Datasheet | S89R | Bulk | Obsolete | Chassis Mount | 120VAC | SPDT (1 Form C) | 15 A | 277VAC - Max | 4155VA | 75 mA | Latching, Single Coil | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 102 VAC | - | - | - | -10°C ~ 60°C | - | Impulse | - | - |
|
RM702L24RELAY GEN PURPOSE 3PDT 16A 24V |
3,124 |
|
Datasheet | RM, SCHRACK | Tray | Obsolete | Socketable | 24VDC | 3PDT (3 Form C) | 16 A | 440VAC - Max | 7040VA | 70.8 mA | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
KUHP-11D17-48RELAY GEN PURPOSE DPDT 20A 48V |
1,818 |
|
Datasheet | KUHP | Bulk | Obsolete | Through Hole | 48VDC | DPDT (2 Form C) | 20 A | 240VAC - Max | 4800VA | 26.7 mA | Non Latching | - | PC Pin | - | Class B | 36 VDC | - | 20 ms | 20 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
T92P7A52-24RELAY GEN PURPOSE DPST 30A 24V |
3,022 |
|
Datasheet | T92 | Bulk | Active | Chassis Mount | 24VAC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 655.7 mA | Non Latching | - | Screw Terminal | - | Class F | 19.2 VAC | 2.4 VAC | 25 ms | 25 ms | -55°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

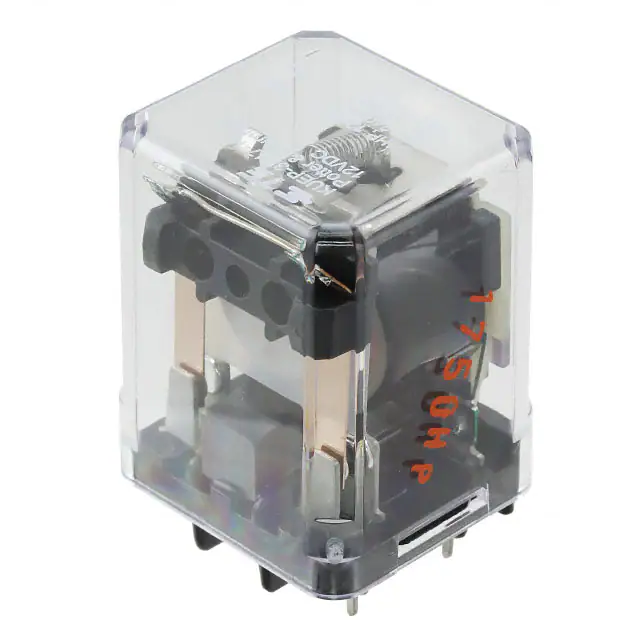

KUEP-3D17-12RELAY GEN PURPOSE SPST 10A 12V |
3,955 |
|
Datasheet | KUEP | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (DM) (1 Form X) | 10 A | 150VDC - Max | 1500VA | 100 mA | Non Latching | - | PC Pin | - | Class B | 9 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
Frequently Asked Questions
What are Power Relays, Over 2 Amps components used for?
Power Relays, Over 2 Amps components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Relays, Over 2 Amps part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Relays, Over 2 Amps parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
