Power Relays, Over 2 Amps
Review Power Relays, Over 2 Amps Relays components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MT226115RELAY GEN PURPOSE DPDT 10A 115V |
909 |
|
Datasheet | MT, SCHRACK | Tray | Obsolete | Socketable | 115VAC | DPDT (2 Form C) | 10 A | 400VAC - Max | 2500VA | 57.5 mA | Non Latching | Test Button | Plug In, 8 Pin (Octal) | - | Class B | 92 VAC | 46 VAC | 15 ms | 10 ms | -40°C ~ 50°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
PT571615RELAY GEN PURPOSE 4PDT 6A 115V |
3,471 |
|
Datasheet | PT, SCHRACK | Tube | Active | Through Hole | 115VAC | 4PDT (4 Form C) | 6 A | 400VAC - Max | 2400VA | 23.7 mA | Non Latching | Mechanical Indicator, Test Button | PC Pin | - | Class F | 92 VAC | 34.5 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
1393231-2RELAY GEN PURP |
4,803 |
|
Datasheet | RP II/1, SCHRACK | Bulk | Active | Through Hole | - | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | - | Non Latching | - | PC Pin | - | - | - | - | 8 ms | 2 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
V23057A0006A101RELAY GEN PURPOSE SPDT 5A 24V |
290 |
|
Datasheet | V23057, SCHRACK | Tray | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 5 A | 400VAC - Max | 2000VA | 20 mA | Non Latching | - | PC Pin | - | - | 16 VDC | 2.4 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

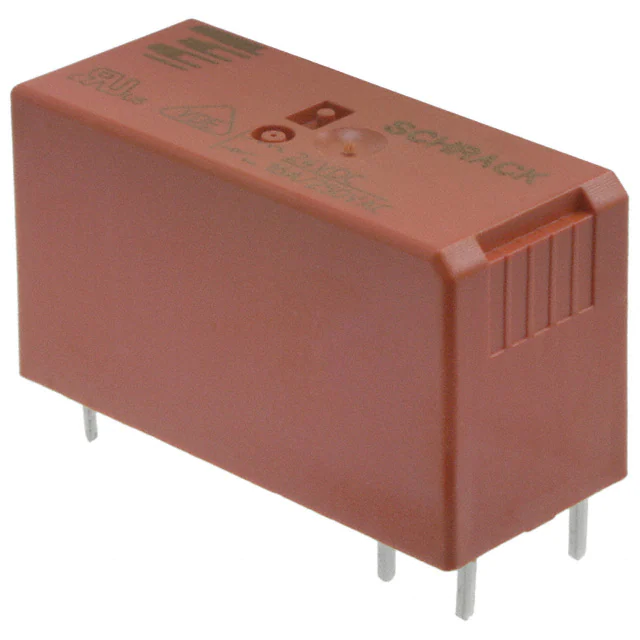

RTX3-1AT-B024RELAY GEN PURPOSE SPST 16A 24V |
4,603 |
|
Datasheet | RTX, SCHRACK | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 250VAC - Nom | - | 27 mA | Latching, Single Coil | - | PC Pin | - | Class F | 18 VDC | - | - | - | -40°C ~ 70°C | Silver Tin Oxide (AgSnO), Tungsten (W) | General Purpose | - | - |
|
|
MT326024RELAY GEN PURPOSE 3PDT 10A 24V |
122 |
|
Datasheet | MT, SCHRACK | Bulk | Obsolete | Socketable | 24VAC | 3PDT (3 Form C) | 10 A | 400VAC - Max | 2500VA | 279 mA | Non Latching | Test Button | Plug In, 11 Pin (Octal) | - | Class B | 19.2 VAC | 9.6 VAC | 15 ms | 10 ms | -40°C ~ 50°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
1432791-1RELAY GEN PURPOSE SPDT 30A 12V |
6,605 |
|
Datasheet | VF4 | Bulk | Obsolete | Chassis Mount | 12VDC | SPDT (1 Form C) | 30 A | 14VDC - Nom | - | 133 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 7.8 VDC | 1.2 VDC | 8 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
1432866-1RELAY GEN PURPOSE SPST 40A 12V |
4,569 |
|
Datasheet | VF4 | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | - | 133 mA | Non Latching | - | PC Pin | - | - | 7.8 VDC | 1.2 VDC | 8 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
18732B200RELAY GEN PURPOSE DPDT 20A 12V |
3,608 |
|
Datasheet | 187 | Bulk | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 20 A | 240VAC, 28VDC - Max | 4800VA, 560W | 100 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 9 VDC | - | 20 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
RMD05730RELAY GEN PURPOSE SPST 30A 230V |
3,230 |
|
Datasheet | RMC/D, SCHRACK | Bulk | Obsolete | Chassis Mount | 230VAC | SPST-NO (DM) (1 Form X) | 30 A | 440VAC - Max | 13200VA | 30.7 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 184 VAC | 69 VAC | 20 ms | 20 ms | -45°C ~ 40°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
Frequently Asked Questions
What are Power Relays, Over 2 Amps components used for?
Power Relays, Over 2 Amps components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Relays, Over 2 Amps part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Relays, Over 2 Amps parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
