Power Relays, Over 2 Amps
Review Power Relays, Over 2 Amps Relays components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

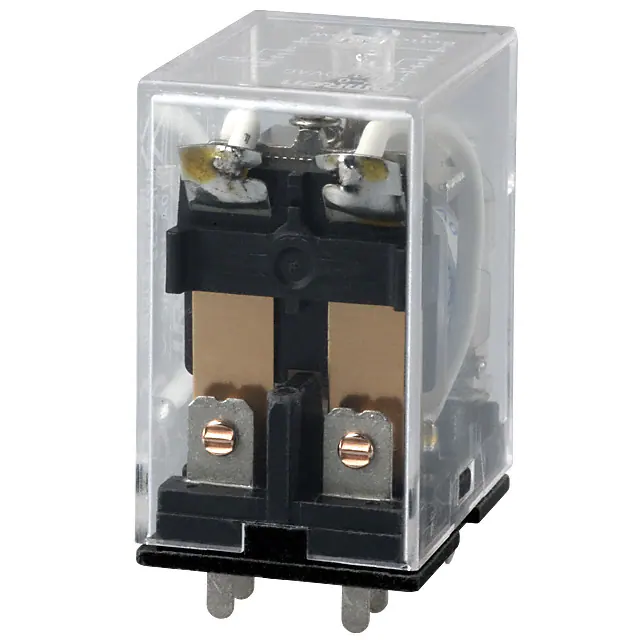

LY1-0-AC110/120RELAY GEN PURPOSE SPDT 15A 120V |
121 |
|
Datasheet | LY | Bulk | Active | Through Hole | 120VAC | SPDT (1 Form C) | 15 A | 250VAC, 125VDC - Max | 3750VA, 1875W | 9.2 mA | Non Latching | - | PC Pin | - | - | 96 VAC | 36 VAC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|
LY1F-AC100/110RELAY GEN PURPOSE SPDT 15A 110V |
142 |
|
Datasheet | LY | Bulk | Active | Chassis Mount | 110VAC | SPDT (1 Form C) | 15 A | 250VAC, 125VDC - Max | 3750VA, 1875W | 11 mA | Non Latching | - | Plug In | - | - | 88 VAC | 33 VAC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Alloy | General Purpose | - | - |
.jpg "G2R-1-SN DC48(S)")
|

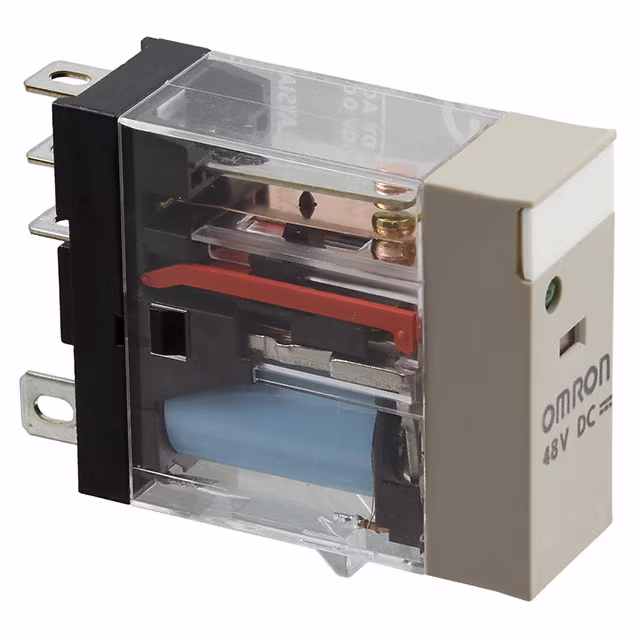

G2R-1-SN DC48(S)RELAY GEN PURPOSE SPDT 10A 48V |
463 |
|
Datasheet | G2RS | Bulk | Active | Socketable | 48VDC | SPDT (1 Form C) | 10 A | 440VAC, 125VDC - Max | 4400VA, 1250W | 11.4 mA | Non Latching | Lighted Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 33.6 VDC | 7.2 VDC | 15 ms | 10 ms | -40°C ~ 70°C | - | General Purpose | - | - |
|
G2R-1-T AC110RELAY GEN PURPOSE SPDT 10A 110V |
107 |
|
Datasheet | G2R | Tray | Active | Chassis Mount | 110VAC | SPDT (1 Form C) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 10.6 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | Sealed - Flux Protection | - | 88 VAC | 33 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
LY2-D-DC12RELAY GEN PURPOSE DPDT 10A 12V |
859 |
|
Datasheet | LY | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 75 mA | Non Latching | Diode | Plug In | - | - | 9.6 VDC | 1.2 VDC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|
MJN2C-AC24RELAY GEN PURPOSE DPDT 10A 24V |
331 |
|
Datasheet | MJN | Bulk | Active | Socketable | 24VAC | DPDT (2 Form C) | 10 A | 600VAC, 28VDC - Max | 6000VA, 280W | 70.8 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 20.4 VAC | - | 20 ms | 10 ms | -45°C ~ 60°C | Silver Alloy | General Purpose | - | - |
|

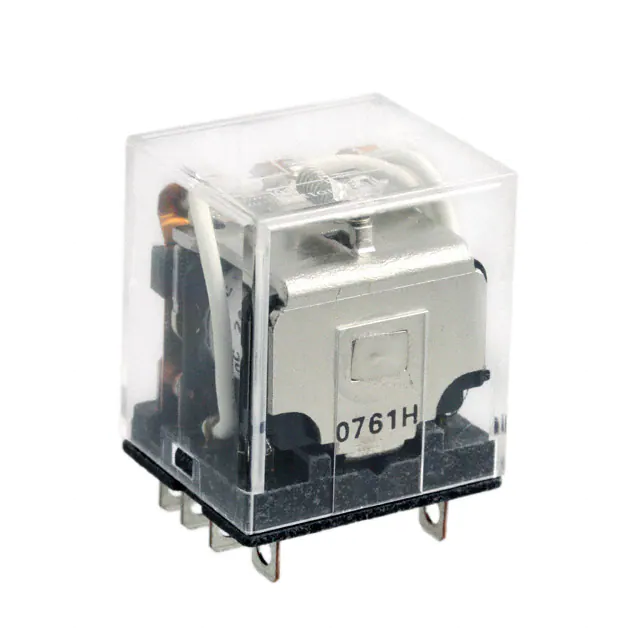

LY3-0-DC12RELAY GEN PURPOSE 3PDT 10A 12V |
125 |
|
Datasheet | LY | Bulk | Active | Through Hole | 12VDC | 3PDT (3 Form C) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 112 mA | Non Latching | - | PC Pin | - | - | 9.6 VDC | 1.2 VDC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Alloy | General Purpose | - | - |
, G2R-1-S-DC12S, G2R-1-S-DC24S, G2R-1-S-DC48(S).jpg "G2R-1-SN AC200/(220)(S) BY OMB")
|
G2R-1-SN AC200/(220)(S) BY OMBRELAY GEN PURPOSE SPDT 10A 220V |
295 |
|
Datasheet | G2RS | Bulk | Active | Socketable | 220VAC | SPDT (1 Form C) | 10 A | 440VAC, 125VDC - Max | 4400VA, 1250W | 5.3 mA | Non Latching | Lighted Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 176 VAC | 66 VAC | 15 ms | 10 ms | -40°C ~ 70°C | - | General Purpose | - | - |
|

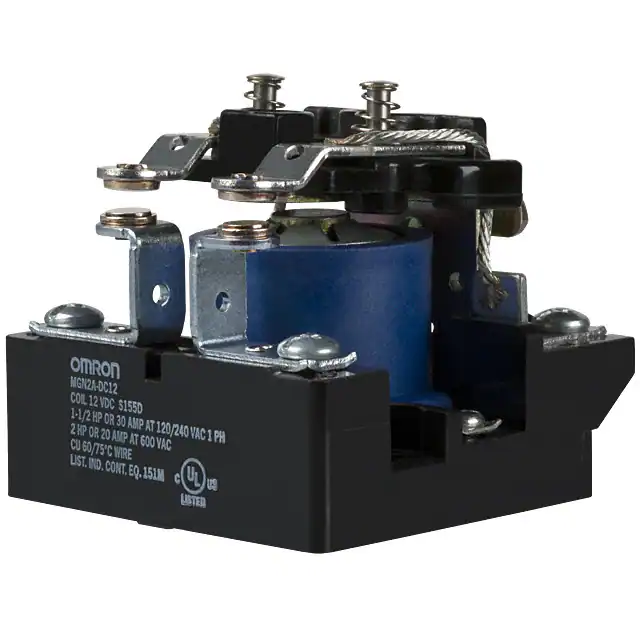

MGN2A-AC120RELAY GEN PURPOSE DPST 30A 120V |
135 |
|
Datasheet | MGN | Bulk | Active | Chassis Mount | 120VAC | DPST-NO (2 Form A) | 30 A | 600VAC, 28VDC - Max | 18000VA, 840W | 79 mA | Non Latching | - | Screw Terminal | - | Class F | 102 VAC | - | 30 ms | 30 ms | -45°C ~ 80°C | - | General Purpose | - | - |
|

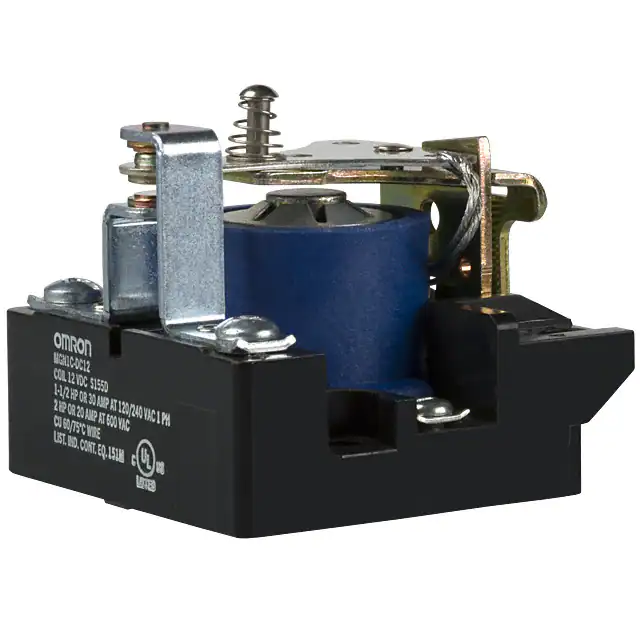

MGN1C-DC12RELAY GEN PURPOSE SPDT 30A 12V |
143 |
|
Datasheet | MGN | Bulk | Active | Chassis Mount | 12VDC | SPDT (1 Form C) | 30 A | 600VAC, 28VDC - Max | 18000VA, 840W | 167 mA | Non Latching | - | Screw Terminal | - | Class F | 9 VDC | - | 30 ms | 30 ms | -40°C ~ 115°C | - | General Purpose | - | - |
Frequently Asked Questions
What are Power Relays, Over 2 Amps components used for?
Power Relays, Over 2 Amps components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Relays, Over 2 Amps part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Relays, Over 2 Amps parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
