Power Relays, Over 2 Amps
Explore Power Relays, Over 2 Amps parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7-1415537-2SR6B6K05 |
3,880 |
|
Datasheet | SR6, SCHRACK | Bulk | Active | Through Hole | 5VDC | 6PST-4NO/2NC (4 Form A, 2 Form B) | 8 A | 400VAC - Max | 3200VA | 161.3 mA | Non Latching | - | PC Pin | - | - | 3.75 VDC | 0.5 VDC | - | - | -25°C ~ 70°C | Silver Tin Oxide (AgSnO), Gold (Au) | General Purpose | - | - |
|
PT2L7RC4RELAY GEN PURPOSE DPDT 12A 24V |
3,422 |
|
Datasheet | PT, SCHRACK | Bulk | Active | DIN Rail | 24VAC | DPDT (2 Form C) | 12 A | 400VAC - Max | 4800VA | 125 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Socket Included, Test Button | Screw Terminal | - | Class F | 19.2 VAC | 7.2 VAC | - | - | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
6-1415544-0RELAY GEN PURPOSE SPST 30A 230V |
4,470 |
|
Datasheet | RMC/D, SCHRACK | Tray | Obsolete | Chassis Mount | 230VAC | SPST-NO (DM) (1 Form X) | 30 A | 440VAC - Max | 13200VA | 30.7 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 184 VAC | 69 VAC | 20 ms | 20 ms | -40°C ~ 40°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
KRPA-14AGP-120KRPA-14AGP-120=KRPA |
1,330 |
|
Datasheet | KRPA | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
R10-E3627-5RELAY DRY CIR 8A PCB |
176 |
|
Datasheet | R10 | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
1219790000RELAY GEN PURPOSE 3PDT 16A 24V |
781 |
|
Datasheet | DRW | Bulk | Obsolete | Socketable | 24VDC | 3PDT (3 Form C) | 16 A | 400VAC, 250VDC - Max | 6400VA, 4000W | 60 mA | Non Latching | Lighted Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 18 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
55.13.9.048.5001IND. PCB RELAY, 3PDT 10A, 48V DC |
3,085 |
|
Datasheet | 55 | Bulk | Active | Through Hole | 48VDC | 3PDT (3 Form C) | 10 A | 400VAC - Max | 4000VA | 20 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 38.4 VDC | 9.6 VDC | 9 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
KHAU-11D11-24RELAY GEN PURPOSE DPDT 3A 24V |
230 |
|
Datasheet | KHA | Bulk | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 3 A | 240VAC - Nom | - | 37.5 mA | Non Latching | - | Plug In | - | Class B | 18 VDC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver (Ag) | General Purpose | - | - |
|
|
1-1393845-0RELAY GEN PURPOSE DPDT 8A 12V |
1,014 |
|
Datasheet | RP II/2, SCHRACK | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 114.3 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 9 VDC | - | 9 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
KUP-17D55-12RELAY GEN PURPOSE 4PDT 10A 12V |
171 |
|
Datasheet | KUP | Bulk | Obsolete | Chassis Mount | 12VDC | 4PDT (4 Form C) | 10 A | 240VAC - Max | 2400VA | 150 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 9 VDC | - | 15 ms | 10 ms | -45°C ~ 50°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
KUMP-14A18-240RELAY GEN PURPOSE 3PDT 15A 240V |
142 |
|
Datasheet | KUMP | Bulk | Obsolete | Socketable | 240VAC | 3PDT (3 Form C) | 15 A | 277VAC - Max | 4155VA | 12 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 204 VAC | - | 15 ms | 10 ms | -45°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
PRD-3AJ0-120RELAY GEN PURPOSE SPST 20A 120V |
2,817 |
|
Datasheet | PRD | Bulk | Active | Chassis Mount | 120VAC | SPST-NO (DM) (1 Form X) | 20 A | 600VAC, 125VDC - Nom | - | 85 mA | Non Latching | - | Screw Terminal | - | Class B | 102 VAC | 12 VAC | 40 ms | 20 ms | -55°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
KRPA-4007RELAY OPEN |
113 |
|
Datasheet | KRPA | Tray | Discontinued at Digi-Key | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PRD-3AJ3-24RELAY GEN PURPOSE SPST 20A 24V |
2,042 |
|
Datasheet | PRD | Bulk | Obsolete | Chassis Mount | 24VAC | SPST-NO (DM) (1 Form X) | 20 A | 600VAC, 125VDC - Nom | - | 410 mA | Non Latching | - | Screw Terminal, Quick Connect - 0.250" (6.3mm) | - | Class B | 20.4 VAC | 2.4 VAC | 40 ms | 20 ms | -55°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
KUMP-14A48-120RELAY GEN PURPOSE 3PDT 15A 120V |
116 |
|
Datasheet | KUMP | Bulk | Obsolete | Socketable | 120VAC | 3PDT (3 Form C) | 15 A | 277VAC - Max | 4155VA | 24 mA | Non Latching | Lighted Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 102 VAC | - | 15 ms | 10 ms | -45°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

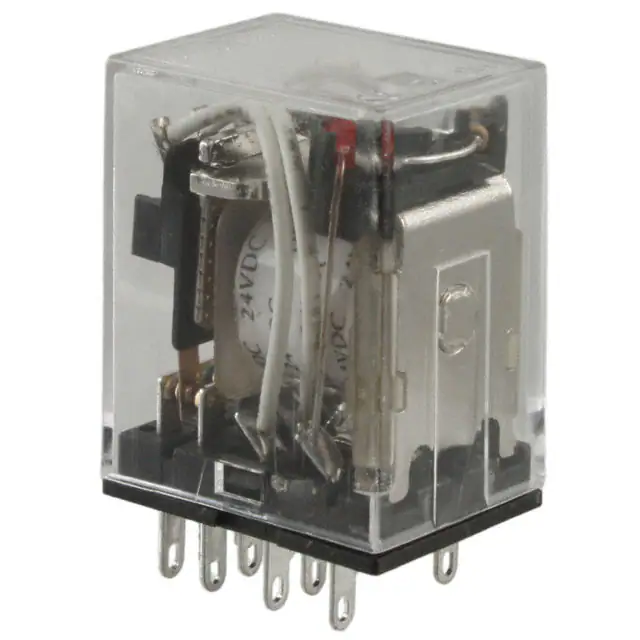

SZR-MY4-N1-DC24VRELAY GEN PURPOSE 4PDT 3A 24V |
118 |
|
Datasheet | SZR-MY | Bulk | Active | Socketable | 24VDC | 4PDT (4 Form C) | 3 A | 250VAC, 125VDC - Max | 750VA, 375W | 40.9 mA | Non Latching | Lighted Indicator | Plug In | - | - | 18 VDC | 2.4 VDC | 20 ms | 20 ms | - | Silver (Ag) | General Purpose | - | - |
|
|
1-1393215-9RELAY |
4,761 |
|
Datasheet | V23057, SCHRACK | Bulk | Obsolete | Through Hole | - | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | - | Non Latching | - | PC Pin | - | - | - | - | 7 ms | 3 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
K10P-4085RELAY GEN PURPOSE 15A |
149 |
|
Datasheet | K10 | Tray | Obsolete | - | - | - | 15 A | 120VAC - Nom | - | - | Non Latching | - | - | - | Class B | - | - | 13 ms | 10 ms | -45°C ~ 70°C | - | General Purpose | - | - |
|
R10-T1Y2-J1.0KRELAY GEN PURPOSE DPDT 3A 12V |
362 |
|
Datasheet | R10 | Tray | Obsolete | Socketable | 12VDC | DPDT (2 Form C) | 3 A | 120VAC - Nom | - | 45 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | - | 8.5 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | General Purpose | - | - |
|
KHAU-17D12N-110RELAY GEN PURPOSE 4PDT 5A 110V |
181 |
|
Datasheet | KHA | Bulk | Obsolete | Socketable | 110VDC | 4PDT (4 Form C) | 5 A | 240VAC - Nom | - | 8.2 mA | Non Latching | Lighted Indicator | Plug In | - | Class B | 82.5 VDC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
Frequently Asked Questions
What are Power Relays, Over 2 Amps components used for?
Power Relays, Over 2 Amps components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Relays, Over 2 Amps part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Relays, Over 2 Amps parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
