Power Relays, Over 2 Amps
Explore Power Relays, Over 2 Amps parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T9GS2L14-15RELAY GEN PURPOSE SPST 20A 15V |
326 |
|
Datasheet | T9G | Bulk | Active | Through Hole | 15VDC | SPST-NC (1 Form B) | 20 A | 480VAC - Max | 9600VA | 60 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 11.25 VDC | 1.5 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
RTB34012RELAY GEN PURPOSE SPST 12A 12V |
992 |
|
Datasheet | RT1, SCHRACK | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 12 A | 400VAC - Max | 4800VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 8.4 VDC | 1.2 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
J1511CF120VAC1.2RELAY GEN PURPOSE SPDT 20A 120V |
395 |
|
Datasheet | J151 | Tray | Active | Chassis Mount | 120VAC | SPDT (1 Form C) | 12 A | 300VAC - Max | 6000VA | 26.4 mA | Non Latching | - | Plug In | - | - | 96 VAC | 36 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
T9GS2L14-24RELAY GEN PURPOSE SPST 20A 24V |
982 |
|
Datasheet | T9G | Bulk | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 20 A | 480VAC - Max | 9600VA | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
G5RL-U1-E DC24RELAY GEN PURPOSE SPDT 16A 24V |
224 |
|
Datasheet | G5RL-U | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 250VAC, 24VDC - Max | 4000VA, 384W | 25 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|

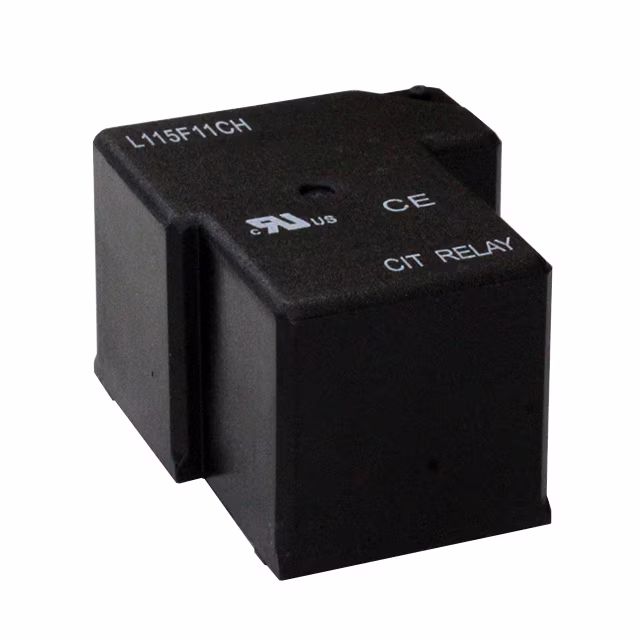

L115F11CH24VDCS1.5URELAY GEN PURPOSE SPDT 50A 24V |
298 |
|
Datasheet | L115F1 | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 62.5 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | Class F | 19.2 VDC | - | 15 ms | 15 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | General Purpose | - | - |
|
RTD14048RELAY GEN PURPOSE SPDT 16A 48V |
6,784 |
|
Datasheet | RT1, SCHRACK | Tube | Active | Through Hole | 48VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 33.6 VDC | 4.8 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
1393219-8RELAY GEN PURPOSE SPDT 5A 18V |
490 |
|
Datasheet | PE, SCHRACK | Bulk | Active | Through Hole | 18VDC | SPDT (1 Form C) | 5 A | 400VAC - Max | 2000VA | 11.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | - | - | 8 ms | 8 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
T9GV2L24-5RELAY GEN PURPOSE SPST 20A 5V |
393 |
|
Datasheet | T9G | Bulk | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 20 A | 480VAC - Max | 9600VA | 180 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Flux Protection | Class B | 3.75 VDC | 0.5 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
G6B-1114P-US DC9RELAY GEN PURPOSE SPST 5A 9V |
944 |
|
Datasheet | G6B | Bulk | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 22.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.3 VDC | 0.9 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
RY613012RELAY GEN PURPOSE SPDT 8A 12V |
515 |
|
Datasheet | RY, SCHRACK | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 19.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
T9GS2L24-18RELAY GEN PURPOSE SPST 20A 18V |
418 |
|
Datasheet | T9G | Bulk | Active | Through Hole | 18VDC | SPST-NC (1 Form B) | 20 A | 480VAC - Max | 9600VA | 50 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 13.5 VDC | 1.8 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
T9GS2L24-5RELAY GEN PURPOSE SPST 20A 5V |
281 |
|
Datasheet | T9G | Bulk | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 20 A | 480VAC - Max | 9600VA | 180 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
J1511CT12VDC.9DRELAY GEN PURPOSE SPDT 20A 12V |
237 |
|
Datasheet | J151 | Tray | Active | Socketable | 12VDC | SPDT (1 Form C) | 12 A | 300VAC - Max | 6000VA | 75 mA | Non Latching | Lighted Indicator | Plug In | - | - | 9 VDC | 1.2 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
RT114018RELAY GEN PURPOSE SPDT 12A 18V |
689 |
|
Datasheet | RT1, SCHRACK | Bulk | Active | Through Hole | 18VDC | SPDT (1 Form C) | 12 A | 400VAC - Max | 4800VA | 23.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 12.6 VDC | 1.8 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
J1511CT48VDC.9RELAY GEN PURPOSE SPDT 20A 48V |
246 |
|
Datasheet | J151 | Tray | Active | Socketable | 48VDC | SPDT (1 Form C) | 12 A | 300VAC - Max | 6000VA | 18.5 mA | Non Latching | - | Plug In | - | - | 36 VDC | 4.8 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
J1511CF48VDC.9RELAY GEN PURPOSE SPDT 20A 48V |
179 |
|
Datasheet | J151 | Tray | Active | Chassis Mount | 48VDC | SPDT (1 Form C) | 12 A | 300VAC - Max | 6000VA | 18.5 mA | Non Latching | - | Plug In | - | - | 36 VDC | 4.8 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
G5RL-1A4-E-TV8 DC12RELAY GEN PURPOSE SPST 16A 12V |
173 |
|
Datasheet | G5RL | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 250VAC, 24VDC - Max | 4000VA, 384W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | General Purpose | - | - |
|
|
AM2C05PCLD02400GRELAY GEN PURPOSE DPDT 5A 24V |
973 |
|
Datasheet | AM | Box | Active | Socketable | 24VDC | DPDT (2 Form C) | 5 A | 277VAC, 28VDC - Max | 1385VA, 140W | 36.9 mA | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 18 VDC | 2.4 VDC | 20 ms | 20 ms | -25°C ~ 50°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
J1511CT240VAC1.2RELAY GEN PURPOSE SPDT 20A 240V |
250 |
|
Datasheet | J151 | Tray | Active | Socketable | 240VAC | SPDT (1 Form C) | 12 A | 300VAC - Max | 6000VA | 12.6 mA | Non Latching | - | Plug In | - | - | 192 VAC | 72 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
Frequently Asked Questions
What are Power Relays, Over 2 Amps components used for?
Power Relays, Over 2 Amps components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Relays, Over 2 Amps part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Relays, Over 2 Amps parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
