Power Relays, Over 2 Amps
Explore Power Relays, Over 2 Amps parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T7NS1D1-24BRIDGE 1-PH KBPC8-PB10 600V 150C |
3,363 |
|
Datasheet | T7N | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 400VAC - Max | 4000VA | 15 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 16.8 VDC | 2.4 VDC | 9 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
G2RV-SL700 AC110RELAY GEN PURPOSE SPDT 6A 110V |
1,742 |
|
Datasheet | G2RV | Bulk | Obsolete | DIN Rail | 110VAC | SPDT (1 Form C) | 6 A | 440VAC, 125VDC - Max | 2640VA, 750W | 7.1 mA | Non Latching | Socket Included | Screw Terminal | - | - | 88 VAC | 11 VAC | 20 ms | 40 ms | -40°C ~ 55°C | - | General Purpose | - | - |
|
G2RV-SL700 AC230RELAY GEN PURPOSE SPDT 6A 230V |
1,620 |
|
Datasheet | G2RV | Bulk | Obsolete | DIN Rail | 230VAC | SPDT (1 Form C) | 6 A | 440VAC, 125VDC - Max | 2640VA, 750W | 7.3 mA | Non Latching | Socket Included | Screw Terminal | - | - | 184 VAC | 23 VAC | 20 ms | 40 ms | -40°C ~ 55°C | - | General Purpose | - | - |
|
G2RV-SL700 AC/DC48RELAY GEN PURPOSE SPDT 6A 48V |
1,877 |
|
Datasheet | G2RV | Bulk | Obsolete | DIN Rail | 48VAC/DC | SPDT (1 Form C) | 6 A | 440VAC, 125VDC - Max | 2640VA, 750W | 5.2 mA | Non Latching | Socket Included | Screw Terminal | - | - | 38.4 VAC/DC | 4.8 VAC/DC | 20 ms | 40 ms | -40°C ~ 55°C | - | General Purpose | - | - |
|
G2RV-SL700 AC/DC24RELAY GEN PURPOSE SPDT 6A 24V |
3,524 |
|
Datasheet | G2RV | Bulk | Obsolete | DIN Rail | 24VAC/DC | SPDT (1 Form C) | 6 A | 440VAC, 125VDC - Max | 2640VA, 750W | 13 mA | Non Latching | Socket Included | Screw Terminal | - | - | 19.2 VAC/DC | 2.4 VAC/DC | 20 ms | 40 ms | -40°C ~ 55°C | - | General Purpose | - | - |
|
G2RV-SL700 DC12 (DC11)RELAY GEN PURPOSE SPDT 6A 12V |
2,989 |
|
Datasheet | G2RV | Bulk | Obsolete | DIN Rail | 12VDC | SPDT (1 Form C) | 6 A | 440VAC, 125VDC - Max | 2640VA, 750W | 27.2 mA | Non Latching | Socket Included | Screw Terminal | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 40 ms | -40°C ~ 55°C | - | General Purpose | - | - |
|

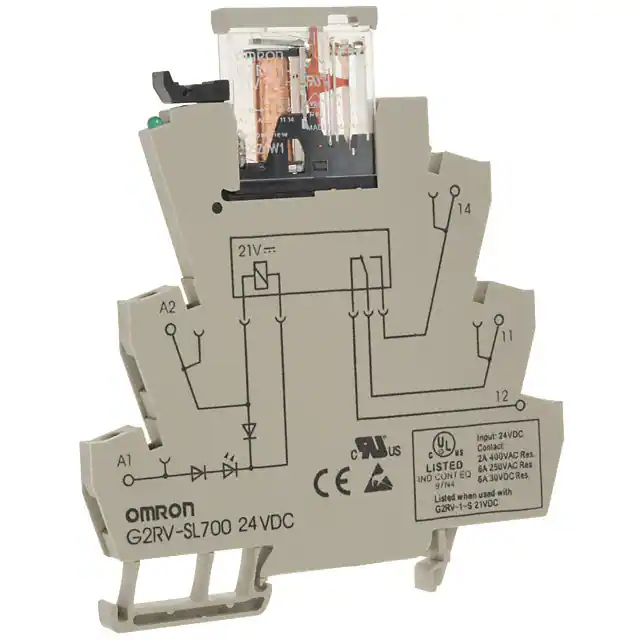

G2RV-SL700 DC24 (DC21)RELAY GEN PURPOSE SPDT 6A 24V |
3,375 |
|
Datasheet | G2RV | Bulk | Obsolete | DIN Rail | 24VDC | SPDT (1 Form C) | 6 A | 440VAC, 125VDC - Max | 2640VA, 750W | 13.3 mA | Non Latching | Socket Included | Screw Terminal | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 40 ms | -40°C ~ 55°C | - | General Purpose | - | - |
|
KBP-17DG-24RELAY GEN PURPOSE 4PDT 10A 24V |
2,907 |
|
Datasheet | KBP | Bulk | Obsolete | Socketable | 24VDC | 4PDT (4 Form C) | 10 A | 120VAC - Nom | - | 104 mA | Latching, Dual Coil | - | Plug In, 20 Pin (Octal) | - | - | 18 VDC | - | - | - | -45°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
KBP-20DG-110RELAY GEN PURPOSE 5PDT 10A 110V |
3,410 |
|
Datasheet | KBP | Bulk | Obsolete | Socketable | 110VDC | 5PDT (5 Form C) | 10 A | 120VAC - Nom | - | 24 mA | Latching, Dual Coil | - | Plug In, 20 Pin (Octal) | - | - | 82.5 VDC | - | - | - | -45°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
KBP-20AG-120RELAY GEN PURPOSE 5PDT 10A 120V |
3,332 |
|
Datasheet | KBP | Bulk | Obsolete | Socketable | 120VAC | 5PDT (5 Form C) | 10 A | 120VAC - Nom | - | 68 mA | Latching, Dual Coil | - | Plug In, 20 Pin (Octal) | - | - | 102 VAC | - | - | - | -45°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
KBP-17AG-120RELAY GEN PURPOSE 4PDT 10A 120V |
1,429 |
|
Datasheet | KBP | Bulk | Obsolete | Socketable | 120VAC | 4PDT (4 Form C) | 10 A | 120VAC - Nom | - | 44 mA | Latching, Dual Coil | - | Plug In, 20 Pin (Octal) | - | - | 102 VAC | - | - | - | -45°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
KBP-17DG-110RELAY GEN PURPOSE 4PDT 10A 110V |
4,148 |
|
Datasheet | KBP | Bulk | Obsolete | Socketable | 110VDC | 4PDT (4 Form C) | 10 A | 120VAC - Nom | - | 24 mA | Latching, Dual Coil | - | Plug In, 20 Pin (Octal) | - | - | 82.5 VDC | - | - | - | -45°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
CSL-38-30010RELAY GEN PURPOSE DPDT 10A 24V |
3,456 |
|
Datasheet | CS | Bulk | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 120VAC, 28VDC - Max | 1200VA, 280W | - | Non Latching | - | Plug In, 8 Pin (Octal) | - | - | Adjustable | Adjustable | 25 ms | - | -10°C ~ 55°C | - | General Purpose | - | - |
|
|
KBP-11DG-24RELAY GEN PURPOSE DPDT 10A 24V |
3,834 |
|
Datasheet | KBP | Bulk | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 120VAC - Nom | - | 104 mA | Latching, Dual Coil | - | Plug In, 11 Pin (Octal) | - | - | 18 VDC | - | - | - | -45°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
KBP-11DG-110RELAY GEN PURPOSE DPDT 10A 110V |
3,802 |
|
Datasheet | KBP | Bulk | Obsolete | Socketable | 110VDC | DPDT (2 Form C) | 10 A | 120VAC - Nom | - | 24 mA | Latching, Dual Coil | - | Plug In, 11 Pin (Octal) | - | - | 82.5 VDC | - | - | - | -45°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
CSL-38-40010RELAY GEN PURPOSE DPDT 10A 48V |
2,508 |
|
Datasheet | CS | Bulk | Obsolete | Socketable | 48VDC | DPDT (2 Form C) | 10 A | 120VAC, 28VDC - Max | 1200VA, 280W | - | Non Latching | - | Plug In, 8 Pin (Octal) | - | - | Adjustable | Adjustable | 25 ms | - | -10°C ~ 55°C | - | General Purpose | - | - |
|
CSJ-38-71010RELAY GEN PURPOSE DPDT 10A 120V |
4,134 |
|
Datasheet | CS | Bulk | Obsolete | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 120VAC, 28VDC - Max | 1200VA, 280W | - | Non Latching | - | Plug In, 8 Pin (Octal) | - | - | 105 VAC | Adjustable | 25 ms | - | -10°C ~ 55°C | - | General Purpose | - | - |
|
|
V23057A 13A401RELAY GEN PURPOSE SPDT 8A 48V |
4,148 |
|
Datasheet | V23057, SCHRACK | Tube | Obsolete | Through Hole | 48VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 10.2 mA | Non Latching | - | PC Pin | - | - | 32 VDC | 4.8 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
V23061B1010A401RELAY GEN PURPOSE SPDT 8A 60V |
3,339 |
|
Datasheet | MSR, SCHRACK | Tube | Obsolete | Through Hole | 60VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 40.8 VDC | 6 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
V23061B1005A401RELAY GEN PURPOSE SPDT 8A 12V |
3,250 |
|
Datasheet | MSR, SCHRACK | Tube | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 18.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 8.2 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
Frequently Asked Questions
What are Power Relays, Over 2 Amps components used for?
Power Relays, Over 2 Amps components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Relays, Over 2 Amps part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Relays, Over 2 Amps parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
