Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM2930-5KCIC REG LINEAR FIXED LDO REG |
5,437 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TPS79118DBVTIC REG LINEAR 1.8V 100MA SOT23-5 |
3,404 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | - | 100mA | 250 µA | - | 80dB ~ 45dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
NCV8570BMN300R2GIC REG LINEAR 3V 200MA 6DFN |
2,982 |
|
Datasheet | - | 6-VDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3V | - | 0.19V @ 200mA | 200mA | 110 µA | 130 µA | 82dB ~ 63dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-DFN (2x2.2) |
|
REG102GA-5/2K5IC REG LINEAR 5V 250MA SOT223-6 |
2,191 |
|
Datasheet | - | SOT-223-6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 10V | 5V | - | 0.27V @ 250mA | 250mA | 500 µA | 800 µA | 65dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-223-6 |
|
LD1084VIC REG LINEAR POS ADJ 5A TO220 |
2,081 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Adjustable | 1 | 30V | 1.25V | 28.5V | 1.5V @ 5A | 5A | 10 mA | - | 72dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220 |
|

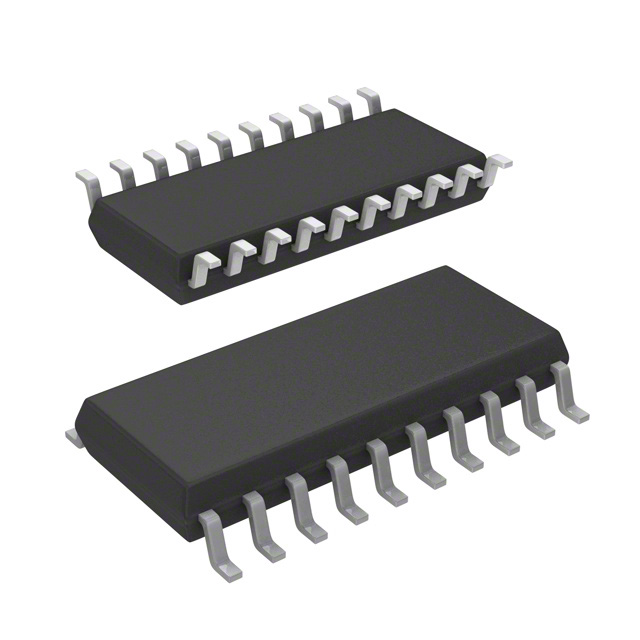

L4949EPTR-EIC REG LINEAR 5V 100MA 20SO |
1,883 |
|
Datasheet | - | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 28V | 5V | - | 0.5V @ 100mA | 100mA | 300 µA | 5 mA | - | Reset | Over Temperature, Short Circuit | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 20-SO |
|
|
TPS79230DBVTIC REG LINEAR 3V 100MA SOT23-5 |
1,856 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3V | - | 0.1V @ 100mA | 100mA | 250 µA | - | 70dB ~ 47dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
TPS79101DBVTIC REG LIN POS ADJ 100MA SOT23-6 |
935 |
|
Datasheet | - | SOT-23-6 | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 5.5V | 1.2V | 5.5V | - | 100mA | 250 µA | - | - | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-6 |
|
|
TPS79201DBVTIC REG LIN POS ADJ 100MA SOT23-6 |
537 |
|
Datasheet | - | SOT-23-6 | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 5.5V | 1.2V | 5.5V | - | 100mA | 250 µA | - | 70dB ~ 47dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-6 |
|
CS5258-1GT5IC REG LINEAR POS ADJ 8A TO220-5 |
1,179 |
|
Datasheet | - | TO-220-5 | Tube | Obsolete | Positive | Adjustable | 1 | 13V | 1.25V | 5V | 1.3V @ 8A | 8A | 10 mA | - | 80dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 70°C | - | - | Through Hole | TO-220-5 |
|
S-13A1B12-A6T1U3IC REG LINEAR 1.2V 1A HSNT-6A |
4,950 |
|
Datasheet | S-13A1 | 6-SMD, Flat Leads Exposed Pad | Tape & Reel (TR) | Not For New Designs | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.38V @ 300mA | 1A | 1 µA | 90 µA | 65dB (1kHz) | Enable | Inrush Current Limit, Over Current, Thermal Shutdown | -40°C ~ 85°C (TA) | - | - | Surface Mount | HSNT-6A |
|
S-13A1A18-E6T1U3IC REG LINEAR 1.8V 1A 6HSOP |
4,000 |
|
Datasheet | S-13A1 | 6-SOIC Variation (0.154", 3.90mm Width), 4 Leads + 2 Fins | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.15V @ 300mA | 1A | 1 µA | 90 µA | 65dB (1kHz) | Enable | Inrush Current Limit, Over Current, Thermal Shutdown | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-HSOP |
|
S-1324D33-M5T1UIC REG LINEAR 3.3V 200MA SOT23-5 |
2,948 |
|
Datasheet | S-1324 | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.32V @ 100mA | 200mA | 12 µA | - | 65dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
TPS76650DIC REG LINEAR 5V 250MA 8SOIC |
2,622 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Positive | Fixed | 1 | 10V | 5V | - | 0.25V @ 250mA | 250mA | 50 µA | - | 63dB (1kHz) | Enable, Power Good | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
MAX1818EUT18#TG16IC REG LIN POS ADJ 500MA SOT6 |
2,323 |
|
Datasheet | - | SOT-23-6 | Tape & Reel (TR) | Obsolete | Positive | Adjustable (Fixed) | 1 | 5.5V | 1.25V (1.8V) | 5V | - | 500mA | 250 µA | - | - | Enable, Power Good | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-6 |
|
|
TPS76633DIC REG LINEAR 3.3V 250MA 8SOIC |
1,271 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Positive | Fixed | 1 | 10V | 3.3V | - | 0.4V @ 250mA | 250mA | 50 µA | - | 63dB (1kHz) | Enable, Power Good | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
TL780-12KCSIC REG LINEAR 12V 1.5A TO220-3 |
5,704 |
|
Datasheet | - | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 30V | 12V | - | 2V @ 1A | 1.5A | - | - | 85dB (120Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
|
TPS73215DCQRIC REG LIN 1.5V 250MA SOT223-6 |
3,081 |
|
Datasheet | TPS732xx | SOT-223-6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.5V | - | 0.15V @ 250mA | 250mA | 550 µA | 950 µA | 58dB ~ 37dB (100Hz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-6 |
|
MIC47150WD-TRIC REG LIN POS ADJ 1.5A TO252-5 |
1,110 |
|
Datasheet | - | TO-252-6, DPAK (5 Leads + Tab) | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6.5V | 0.9V | 6V | 0.5V @ 1.5A | 1.5A | - | - | - | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TO-252-5 |
|
|
SI-3033KS-TLIC REG LINEAR 3.3V 1A 8SOP |
833 |
|
Datasheet | - | 8-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 17V | 3.3V | - | 0.6V @ 1A | 1A | 350 µA | - | 55dB (100Hz ~ 120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-SOP |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
