Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MIC29301-12BTIC REG LINEAR HIGH CURRENT LDO |
8,025 |
|
Datasheet | - | TO-220-5 | Bulk | Active | Positive | Fixed | 1 | 26V | 12V | - | 0.6V @ 3A | 3A | 35 mA | - | - | Enable, Error Flag | Load Dump, Over Current, Over Temperature, Reverse Polarity, Transient Voltage | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220-5 |
|
CS8311YDR8IC REG LINEAR 10V 100MA 8SOIC |
2,046 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 38V | 10V | - | 0.6V @ 100mA | 100mA | 250 µA | 20 mA | 75dB (120Hz) | Enable, Reset | Over Temperature, Over Voltage, Reverse Polarity, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
CS8129YTVA5IC REG LIN 5V 750MA TO220-5 |
2,758 |
|
Datasheet | - | TO-220-5 Formed Leads | Tube | Obsolete | Positive | Fixed | 1 | 26V | 5V | - | 0.6V @ 500mA | 750mA | 70 mA | 100 mA | 75dB (120Hz) | Reset | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 Vertical |
|
TPS77518QPWPRQ1IC REG LIN 1.8V 500MA 20HTSSOP |
2,655 |
|
Datasheet | - | 20-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 10V | 1.8V | - | - | 500mA | 125 µA | - | 60dB (100Hz) | Enable, Reset | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 20-HTSSOP |
|
UC350TIC REG LINEAR 1 OUTPUT BIPOLAR |
657 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

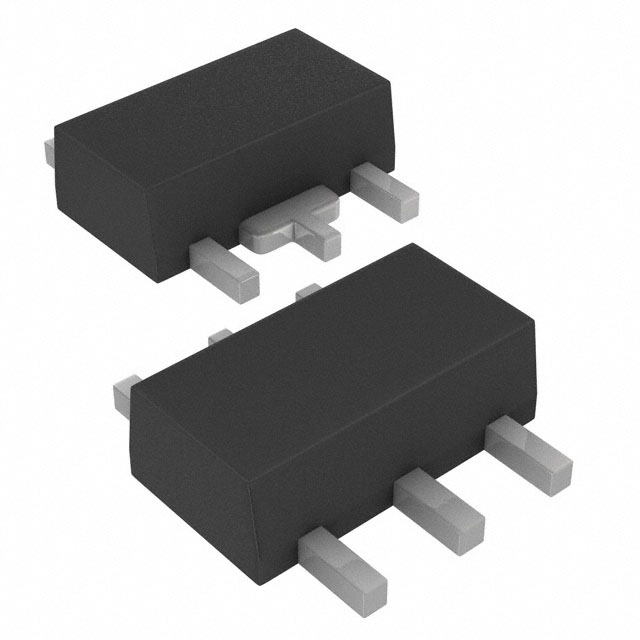

SI-3012LU-TLIC REG LIN POS ADJ 250MA SOT89-5 |
266 |
|
Datasheet | - | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 17V | 1.5V | 15V | 0.5V @ 250mA | 250mA | 150 µA | - | 55dB (100Hz ~ 120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-89-5 |
|
ADP1712AUJZ-1.3-R7IC REG LINEAR 1.3V 300MA TSOT5 |
4,003 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.3V | - | 0.23V @ 300mA | 300mA | 70 µA | 420 µA | 65dB (1kHz) | Enable, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TSOT-23-5 |
|
|
ADP1712AUJZ-0.8-R7IC REG LINEAR 0.8V 300MA TSOT5 |
3,048 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 0.8V | - | 0.23V @ 300mA | 300mA | 70 µA | 420 µA | 65dB (1kHz) | Enable, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TSOT-23-5 |
|
NCP5661MN25T2GIC REG LINEAR 2.5V 1A 6DFN |
2,232 |
|
Datasheet | - | 6-VDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 9V | 2.5V | - | 1.3V @ 1A | 1A | 3 mA | - | 70dB ~ 65dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 6-DFN (3x3.3) |
|
|
ADP1712AUJZ-1.1-R7IC REG LINEAR 1.1V 300MA TSOT5 |
1,015 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.1V | - | 0.23V @ 300mA | 300mA | 70 µA | 420 µA | 65dB (1kHz) | Enable, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TSOT-23-5 |
|
REG113EA-3/250IC REG LINEAR 3V 400MA 8VSSOP |
1,380 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 10V | 3V | - | 0.41V @ 400mA | 400mA | 500 µA | 1 mA | 65dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 8-VSSOP |
|
|
NCP5661MN12T2GIC REG LINEAR 1.2V 1A 6DFN |
2,856 |
|
Datasheet | - | 6-VDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 9V | 1.2V | - | 1.3V @ 1A | 1A | 3 mA | - | 70dB ~ 65dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 6-DFN (3x3.3) |
|
|
ADP1712AUJZ-0.9-R7IC REG LINEAR 0.9V 300MA TSOT5 |
1,142 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 0.9V | - | 0.23V @ 300mA | 300mA | 70 µA | 420 µA | 65dB (1kHz) | Enable, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TSOT-23-5 |
|
|
ADP1712AUJZ-1.05R7IC REG LINEAR 1.05V 300MA TSOT5 |
4,143 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.05V | - | 0.23V @ 300mA | 300mA | 70 µA | 420 µA | 65dB (1kHz) | Enable, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TSOT-23-5 |
|
|
TPS77515PWPRIC REG LIN 1.5V 500MA 20HTSSOP |
4,289 |
|
Datasheet | - | 20-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 10V | 1.5V | - | - | 500mA | 125 µA | - | 60dB (100Hz) | Enable, Reset | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 20-HTSSOP |
|
|
TPS77518PWPRIC REG LIN 1.8V 500MA 20HTSSOP |
4,017 |
|
Datasheet | - | 20-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 10V | 1.8V | - | - | 500mA | 125 µA | - | 60dB (100Hz) | Enable, Reset | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 20-HTSSOP |
|
TL760M33QKVURQ1IC REG LINEAR 3.3V 500MA TO252-3 |
4,787 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 26V | 3.3V | - | 0.5V @ 500mA | 500mA | 15 mA | 30 mA | 62dB (100Hz) | - | Over Current, Over Temperature, Over Voltage | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | TO-252-3 |
|
|
MIC29151-5.0BTIC REG LINEAR 5V 1.5A TO220-5 |
5,506 |
|
Datasheet | - | TO-220-5 | Tube | Obsolete | Positive | Fixed | 1 | 26V | 5V | - | 0.6V @ 1.5A | 1.5A | - | - | - | Enable | Over Current, Over Temperature, Reverse Polarity, Transient Voltage | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
MAX8704EUB+IC REG LINEAR POS ADJ 5A 10UMAX |
2,218 |
|
Datasheet | - | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Bulk | Obsolete | Positive | Adjustable (Fixed) | 1 | 5.5V | 0.5V (1.2V, 1.5V) | 5.5V | - | 5A | 10 µA | 3 mA | - | Enable, Power Good, Power Limit, Soft Start | Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-uMAX/uSOP |
|
REG1117A-2.5IC REG LINEAR 2.5V 1A SOT223-4 |
2,038 |
|
Datasheet | - | TO-261-4, TO-261AA | Bulk | Active | Positive | Fixed | 1 | 15V | 2.5V | - | 1.55V @ 1A | 1A | 10 mA | - | 62dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-4 |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
