Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS73250QDCQRQ1IC REG LINEAR 5V 250MA SOT223-6 |
1,619 |
|
Datasheet | TPS732xx | SOT-223-6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 5V | - | 0.6V @ 500mA | 250mA | 550 µA | 950 µA | 53dB (120Hz) | Enable, Reset | Over Current, Over Temperature, Short Circuit, Reverse Polarity | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-223-6 |
|
UA78L08ACDIC REG LINEAR 8V 100MA 8SOIC |
1,532 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Positive | Fixed | 1 | 23V | 8V | - | 1.7V @ 40mA | 100mA | - | - | 46dB (120Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
MAX1819EBL20+IC REG LIN POS ADJ 500MA 6UCSP |
2,547 |
|
Datasheet | - | 6-UFBGA, CSPBGA | Bulk | Obsolete | Positive | Adjustable (Fixed) | 1 | 5.5V | 1.25V (2V) | 5V | - | 500mA | 250 µA | - | - | Enable, Power Good | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-UCSP (1.52x1.52) |
|
MAX1819EBL20IC REG LINEAR 6UCSP |
1,000 |
|
Datasheet | - | 6-UFBGA, CSPBGA | Bulk | Active | Positive | Adjustable (Fixed) | 1 | 5.5V | 1.25V (2V) | 5V | - | 500mA | 250 µA | - | - | Enable, Power Good | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-UCSP (1.52x1.52) |
|
S-1315D33-M5T1U3IC REG LINEAR 3.3V 200MA SOT23-5 |
644 |
|
Datasheet | S-1315 | SC-74A, SOT-753 | Tape & Reel (TR) | Last Time Buy | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.28V @ 200mA | 200mA | 1 µA | 13 µA | 55dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
LP3876ET-2.5IC REG LINEAR 2.5V 3A TO220-5 |
450 |
|
Datasheet | - | TO-220-5 Formed Leads | Bulk | Active | Positive | Fixed | 1 | 7V | 2.5V | - | 1.2V @ 3A | 3A | 10 mA | 15 mA | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220-5 |
,TO-226_straightlead.jpg "UA78L08ACLP")
|
UA78L08ACLPIC REG LINEAR 8V 100MA TO92-3 |
2,231 |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Active | Positive | Fixed | 1 | 23V | 8V | - | 1.7V @ 40mA | 100mA | - | - | 46dB (120Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-92-3 |
|
|
UA78L05CLPIC REG LINEAR 5V 100MA TO92-3 |
6,017 |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Active | Positive | Fixed | 1 | 20V | 5V | - | 1.7V @ 40mA | 100mA | - | - | 49dB (120Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-92-3 |
|
TPS7201QPWIC REG LIN POS ADJ 250MA 8TSSOP |
2,877 |
|
Datasheet | - | 8-TSSOP (0.173", 4.40mm Width) | Bulk | Active | Positive | Adjustable | 1 | 10V | 1.2V | 9.75V | 0.2V @ 350mA | 250mA | 80 µA | - | 85dB ~ 50dB (10Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 8-TSSOP |
|
MC78M24CTGIC REG LINEAR 24V 500MA TO220AB |
1,745 |
|
Datasheet | - | TO-220-3 | Bulk | Obsolete | Positive | Fixed | 1 | 40V | 24V | - | - | 500mA | - | - | 70dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220 |
|

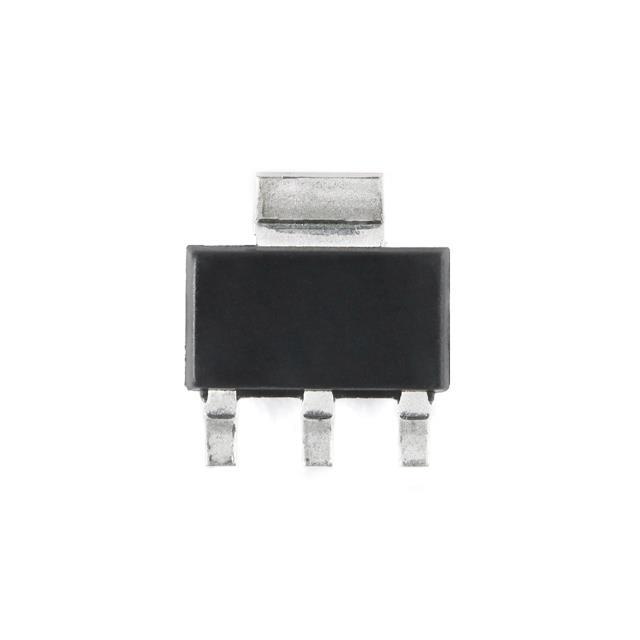

LM317GLINEAR VOLTAGE REGULATORS LOW CU |
4,992 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 40V | 1.2V | 37V | - | 1.5A | 12 mA | - | 75dB ~ 60dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-223 |
|
UPC7924AHF-AZIC REG LINEAR 1 OUTPUT BIPOLAR |
4,032 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
UPC78M24AHF-1-AZIC REG LINEAR POSITIVE VOLTAGE |
3,089 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
UA78L08ACLPE3IC REG LINEAR 8V 100MA TO92-3 |
2,612 |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Active | Positive | Fixed | 1 | 23V | 8V | - | 1.7V @ 40mA | 100mA | - | - | 46dB (120Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-92-3 |
|
L7812CV1.2A FIXED 12V~12V POSITIVE 1 35 |
681 |
|
Datasheet | L78xx | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 35V | 12V | - | - | 1.2A | 6 mA | - | - | - | Over Temperature, Short Circuit | -40°C ~ 105°C | - | - | Through Hole | TO-220 |
|
LP5900SD-2.5IC REG LINEAR 2.5V 150MA 6WSON |
537 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.15V @ 150mA | 150mA | 50 µA | 230 µA | 85dB ~ 40dB (100Hz ~ 100kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 6-WSON (2.2x2.5) |
|
|
TPS77628DIC REG LINEAR 2.8V 500MA 8SOIC |
3,094 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | Positive | Fixed | 1 | 10V | 2.8V | - | 0.41V @ 500mA | 500mA | 125 µA | - | 60dB (100Hz) | Enable, Power Good | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
NCP4620DSN15T1GIC REG LINEAR 1.5V 150MA SOT23-5 |
1,234 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 10V | 1.5V | - | 1.1V @ 150mA | 150mA | 40 µA | - | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
NCP566ST12T3GIC REG LINEAR 1.2V 1.5A SOT223 |
3,892 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 9V | 1.2V | - | 1.3V @ 1.5A | 1.5A | 3 mA | - | 85dB ~ 75db (120Hz ~ 1kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-223 (TO-261) |
|
NCV571SN12T1GIC REG LINEAR 1.2V 150MA 5TSOP |
2,757 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 12V | 1.2V | - | 0.45V @ 10mA | 150mA | 1 µA | 8 µA | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 5-TSOP |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
