Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LT1763CDE-3.3#PBFIC REG LINEAR 3.3V 500MA 12DFN |
3,074 |
|
Datasheet | - | 12-WFDFN Exposed Pad | Tube | Active | Positive | Fixed | 1 | 20V | 3.3V | - | 0.45V @ 500mA | 500mA | - | - | 65dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 12-DFN (4x3) |
|
LTC3026IDD#TRPBFIC REG LINEAR POS ADJ 1.5A 10DFN |
4,886 |
|
Datasheet | - | 10-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 3.5V, 5.5V | 0.4V | 2.6V | 0.25V @ 1.5A | 1.5A | - | - | - | Enable, Power Good | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 10-DFN (3x3) |
|

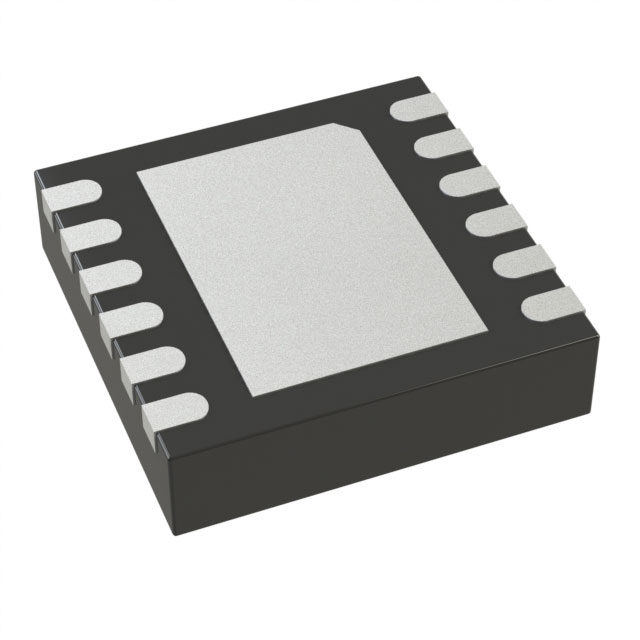

LT3046ATC+LT3046ATC+ |
320 |
|
Datasheet | - | 12-WFDFN Exposed Pad | Tray | Active | Positive | Adjustable | 1 | 20V | 0.2V | 19V | 0.47V @ 200mA | 200mA | - | 15 mA | 102dB ~ 60dB (120Hz ~ 10MHz) | - | Over Current, Over Temperature, Reverse Current, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 12-DFN (3x3) |
|
TPS7A8500ARGRTIC REG LINEAR POS ADJ 4A 20VQFN |
566 |
|
Datasheet | - | 20-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable/Programmable | 1 | 6.5V | 0.8V | 5.1V | 0.5V @ 4A | 4A | 4 mA | 6 mA | 42dB ~ 25dB (10kHz ~ 500kHz) | Enable, Power Good, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 20-VQFN (3.5x3.5) |
|
LT3093IDD#PBFIC REG LIN NEG ADJ 200MA 12DFN |
179 |
|
Datasheet | - | 12-WFDFN Exposed Pad | Tube | Active | Negative | Adjustable | 1 | -20V | 0V | -19.5V | 0.3V @ 200mA | 200mA | 10 µA | 80 mA | 73dB (1MHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | - | - | Surface Mount | 12-DFN (3x3) |
|
LT1963AET#PBFIC REG LIN POS ADJ 1.5A TO220-5 |
382 |
|
Datasheet | - | TO-220-5 | Tube | Active | Positive | Adjustable | 1 | 20V | 1.21V | 20V | 0.55V @ 1.5A | 1.5A | 1.5 mA | 120 mA | 63dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
LT1121IS8#TRPBFIC REG LINEAR POS ADJ 150MA 8SO |
1,594 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 30V | 3.75V | 30V | 0.7V @ 150mA | 150mA | 50 µA | 14 mA | 58dB (120Hz) | Enable | Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-SO |
|
LT3013EFE#TRPBFIC REG LIN POS ADJ 250MA 16TSSOP |
891 |
|
Datasheet | - | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 80V | 1.24V | 60V | 0.62V @ 250mA | 250mA | 120 µA | 18 mA | 75dB (120Hz) | Enable, Frequency Control, Power Good | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 16-TSSOP-EP |
|
LT3042IMSE#TRPBFIC REG LIN POS ADJ 200MA 10MSOP |
8,775 |
|
Datasheet | - | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 20V | 0V | 15V | 0.35V @ 200mA (Typ) | 200mA | - | - | 117dB ~ 56dB (120Hz ~ 10MHz) | Current Limit, Enable, Power Good | Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 10-MSOP-EP |
|
|
LT3042IDD#TRPBFIC REG LIN POS ADJ 200MA 10DFN |
6,635 |
|
Datasheet | - | 10-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 20V | 0V | 15V | 0.35V @ 200mA (Typ) | 200mA | - | - | 117dB ~ 56dB (120Hz ~ 10MHz) | Current Limit, Enable, Power Good | Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
LT3090IDD#TRPBFIC REG LIN NEG ADJ 600MA 10DFN |
2,710 |
|
Datasheet | - | 10-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Negative | Adjustable | 1 | -36V | 0V | -32V | 0.45V @ 600mA | 600mA | 50.5 µA | - | 85dB ~ 20dB (120Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
LT3090IDD#PBFIC REG LIN NEG ADJ 600MA 10DFN |
1,844 |
|
Datasheet | - | 10-WFDFN Exposed Pad | Tube | Active | Negative | Adjustable | 1 | -36V | 0V | -32V | 0.45V @ 600mA | 600mA | 50.5 µA | - | 85dB ~ 20dB (120Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
LT3042IMSE#PBFIC REG LIN POS ADJ 200MA 10MSOP |
906 |
|
Datasheet | - | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Positive | Adjustable | 1 | 20V | 0V | 15V | 0.35V @ 200mA (Typ) | 200mA | - | - | 117dB ~ 56dB (120Hz ~ 10MHz) | Current Limit, Enable, Power Good | Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 10-MSOP-EP |
|
|
LT3042IDD#PBFIC REG LIN POS ADJ 200MA 10DFN |
699 |
|
Datasheet | - | 10-WFDFN Exposed Pad | Tube | Active | Positive | Adjustable | 1 | 20V | 0V | 15V | 0.35V @ 200mA (Typ) | 200mA | - | - | 117dB ~ 56dB (120Hz ~ 10MHz) | Current Limit, Enable, Power Good | Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 10-DFN (3x3) |
|
LT1086CM#PBFIC REG LIN POS ADJ 1.5A 3DDPAK |
1,820 |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tube | Active | Positive | Adjustable | 1 | 25V | 1.25V | 23.5V | 1.5V @ 1.5A | 1.5A | - | - | 75dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | DDPAK-3 |
|
|
LT1086CM-3.3#TRPBFIC REG LINEAR 3.3V 1.5A D2PAK-3 |
640 |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 20V | 3.3V | - | 1.5V @ 1.5A | 1.5A | 10 mA | - | 72dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | DDPAK-3 |
|
LT1965IQ#PBFIC REG LIN POS ADJ 1.1A 5DDPAK |
526 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Active | Positive | Adjustable | 1 | 20V | 1.2V | 19.5V | 0.49V @ 1.1A | 1.1A | 1.1 mA | 40 mA | 75dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | DDPAK-5 |
|
LT3032IDE#PBFIC REG LINEAR POS/NEG ADJ 14DFN |
4,024 |
|
Datasheet | - | 14-PowerWFDFN | Tube | Active | Positive and Negative | Adjustable | 2 | ±20V | ±1.22V | ±20V | 0.27V @ 150mA (Typ), 0.3V @ 150mA (Typ) | 150mA, 150mA | - | - | 68dB (120Hz), 54dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 14-DFN (4x3) |
|
|
LT3032IDE#TRPBFIC REG LINEAR POS/NEG ADJ 14DFN |
2,924 |
|
Datasheet | - | 14-PowerWFDFN | Tape & Reel (TR) | Active | Positive and Negative | Adjustable | 2 | ±20V | ±1.22V | ±20V | 0.27V @ 150mA (Typ), 0.3V @ 150mA (Typ) | 150mA, 150mA | - | - | 68dB (120Hz), 54dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 14-DFN (4x3) |
|
|
LT1963AEFE#TRPBFIC REG LIN POS ADJ 1.5A 16TSSOP |
3,511 |
|
Datasheet | - | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 20V | 1.21V | 20V | 0.55V @ 1.5A | 1.5A | 1.5 mA | 120 mA | 63dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 16-TSSOP-EP |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
