Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LT3015ET-3#PBFIC REG LINEAR -3V 1.5A TO220-5 |
409 |
|
Datasheet | - | TO-220-5 | Tube | Active | Negative | Fixed | 1 | -30V | -3V | - | 0.68V @ 1.5A | 1.5A | 2.4 mA | 70 mA | 62dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
LT3015IDD-3#PBFIC REG LINEAR -3V 1.5A 8DFN |
121 |
|
Datasheet | - | 8-WFDFN Exposed Pad | Tube | Active | Negative | Fixed | 1 | -30V | -3V | - | 0.5V @ 1.5A | 1.5A | 2.4 mA | 70 mA | 62dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-DFN (3x3) |
|
LT1963ET#30PBFIC REG LIN POS ADJ 1.5A TO220-5 |
148 |
|
Datasheet | - | TO-220-5 Formed Leads | Tube | Active | Positive | Adjustable | 1 | 20V | 1.21V | 20V | 0.55V @ 1.5A | 1.5A | 1.5 mA | 120 mA | 63dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 Flow 30 |
|
LT3086IR#TRPBFIC REG LIN POS ADJ 2.1A 7DDPAK |
616 |
|
Datasheet | - | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 40V | 0.4V | 32V | 0.54V @ 2.1A | 2.1A | 2.4 mA | 88 mA | 80dB (120Hz) | Current Limit, Enable, Power Good, Tracking | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | DDPAK-7 |
|
LT1529IT#06PBFIC REG LIN POS ADJ 3A TO220-5 |
148 |
|
Datasheet | - | TO-220-5 | Tube | Active | Positive | Adjustable | 1 | 15V | 3.75V | 14V | 0.95V @ 3A | 3A | 100 µA | 160 mA | 62dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -45°C ~ 125°C | - | - | Through Hole | TO-220-5 Flow 6 |
|
|
LT1764AET-1.8#PBFIC REG LINEAR 1.8V 3A TO220-5 |
235 |
|
Datasheet | - | TO-220-5 | Tube | Active | Positive | Fixed | 1 | 20V | 1.8V | - | 0.66V @ 3A | 3A | 1.5 mA | 200 mA | 63dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220-5 |
|
LT3030IFE#TRPBFIC REG LINEAR POS ADJ 20TSSOP |
914 |
|
Datasheet | - | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 2 | 20V | 1.22V | 19.5V | 0.48V @ 250mA, 0.48V @ 750mA | 250mA, 750mA | - | - | 60dB ~ 50dB (120Hz ~ 1MHz) | Enable, Power Good | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 20-TSSOP-EP |
|
|
LT1764ET-1.5#PBFIC REG LINEAR 1.5V 3A TO220-5 |
3,016 |
|
Datasheet | - | TO-220-5 | Tube | Active | Positive | Fixed | 1 | 20V | 1.5V | - | 0.66V @ 3A | 3A | 1.5 mA | 200 mA | 63dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220-5 |
|

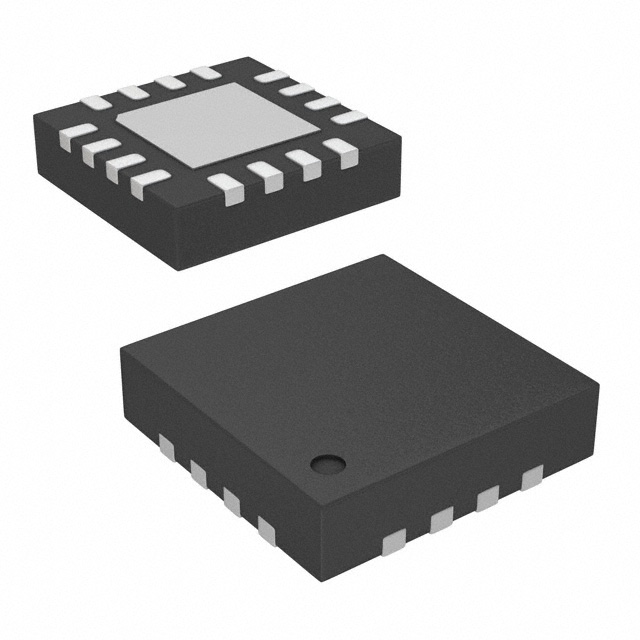

ADP1762WACPZ-R72ALOWVIN, VERYLOW DO LOW NOISE,H |
3,000 |
|
Datasheet | - | 16-WFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 1.98V | 0.5V | 1.5V | 0.095V @ 2A | 2A | 8 mA | 14 mA | 63dB ~ 34dB (10kHz ~ 1MHz) | Enable, Power Good, Soft Start | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 16-LFCSP (3x3) |
|
|
LT1764AET-1.8#30PBFIC REG LIN 1.8V 3A TO220-5 |
2,607 |
|
Datasheet | - | TO-220-5 Formed Leads | Tube | Active | Positive | Fixed | 1 | 20V | 1.8V | - | 0.66V @ 3A | 3A | 1.5 mA | 200 mA | 63dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 Flow 30 |
|
LT3050MPMSE-5#PBFIC REG LINEAR 5V 100MA 12MSOP |
116 |
|
Datasheet | - | 12-TSSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Positive | Fixed | 1 | 45V | 5V | - | 0.55V @ 100mA | 100mA | 90 µA | 5.2 mA | 66dB (120Hz) | Current Limit, Enable, Soft Start | Over Current, Over Temperature, Reverse Polarity | -55°C ~ 125°C | - | - | Surface Mount | 12-MSOP-EP |
|
ADP1763ACPZ0.95-R7IC REG LINEAR 0.95V 3A 16LFCSP |
1,434 |
|
Datasheet | - | 16-WFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 1.98V | 0.95V | - | 0.145V @ 3A | 3A | 8 mA | 16 mA | 62dB ~ 33dB (10kHz ~ 1MHz) | Enable, Power Good, Soft Start | Current Limit, Thermal Overload | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-LFCSP (3x3) |
|
|
ADP1763ACPZ1.25-R7IC REG LINEAR 1.25V 3A 16LFCSP |
1,421 |
|
Datasheet | - | 16-WFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 1.98V | 1.25V | - | 0.145V @ 3A | 3A | 8 mA | 16 mA | 62dB ~ 33dB (10kHz ~ 1MHz) | Enable, Power Good, Soft Start | Current Limit, Thermal Overload | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-LFCSP (3x3) |
|
LT1587CT-3.6#PBFIC REG LINEAR 3.6V 3A TO220-3 |
142 |
|
Datasheet | - | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 7V | 3.6V | - | 1.3V @ 3A | 3A | - | - | 72dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
|
LT3065MPMSE-1.8#PBFIC REG LINEAR 1.8V 500MA 12MSOP |
122 |
|
Datasheet | - | 12-TSSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Positive | Fixed | 1 | 45V | 1.8V | - | 0.51V @ 500mA | 500mA | 110 µA | 25 mA | 74dB (120Hz) | Current Limit, Enable, Power Good, Soft Start | Over Current, Over Temperature, Reverse Polarity | -55°C ~ 150°C | - | - | Surface Mount | 12-MSOP-EP |
|
LT3055MPMSE-5#PBFIC REG LINEAR 5V 500MA 16MSOP |
1,705 |
|
Datasheet | - | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Positive | Fixed | 1 | 45V | 5V | - | 0.59V @ 500mA | 500mA | 130 µA | 25 mA | 66dB (120Hz) | Current Limit, Enable, Power Good, Soft Start | Over Current, Over Temperature, Reverse Polarity | -55°C ~ 150°C | - | - | Surface Mount | 16-MSOP-EP |
|
LT1763MPDE-5#TRPBFIC REG LINEAR 5V 500MA 12DFN |
2,368 |
|
Datasheet | - | 12-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 20V | 5V | - | 0.45V @ 500mA | 500mA | - | - | 65dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -55°C ~ 125°C | - | - | Surface Mount | 12-DFN (4x3) |
|
|
LT3015MPMSE#TRPBFIC REG LIN NEG ADJ 1.5A 12MSOP |
1,965 |
|
Datasheet | - | 12-TSSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Negative | Adjustable | 1 | -30V | -1.22V | -29.5V | 0.5V @ 1.5A | 1.5A | 2.4 mA | 70 mA | 65dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -55°C ~ 125°C | - | - | Surface Mount | 12-MSOP-EP |
|
|
LT3015MPMSE-3#PBFIC REG LINEAR -3V 1.5A 12MSOP |
145 |
|
Datasheet | - | 12-TSSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Negative | Fixed | 1 | -30V | -3V | - | 0.5V @ 1.5A | 1.5A | 2.4 mA | 70 mA | 62dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -55°C ~ 125°C | - | - | Surface Mount | 12-MSOP-EP |
|
LM317HVHIC REG LINEAR POS ADJ 1.5A TO3 |
477 |
|
Datasheet | - | TO-205AD, TO-39-3 Metal Can | Bulk | Active | Positive | Adjustable | 1 | 60V | 1.25V | 57V | - | 1.5A | 12 mA | - | 80dB ~ 65dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-3 |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
