Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS7A14105PDRVR1-A, LOW INPUT AND OUTPUT VOLTAG |
2,984 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 2.2V | 1.05V | - | 0.099V @ 1A | 1A | 43 µA | - | 90dB ~ 24dB (100Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WSON (2x2) |
|
|
TPS7A1412PDRVR1-A, LOW INPUT AND OUTPUT VOLTAG |
2,859 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 2.2V | 1.2V | - | 0.099V @ 1A | 1A | 43 µA | - | 90dB ~ 24dB (100Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WSON (2x2) |
|
|
TPS7A1410PDRVR1-A, LOW INPUT AND OUTPUT VOLTAG |
2,847 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 2.2V | 1V | - | 0.099V @ 1A | 1A | 43 µA | - | 90dB ~ 24dB (100Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WSON (2x2) |
|
|
TPS7A1409PDRVR1-A, LOW INPUT AND OUTPUT VOLTAG |
2,794 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 2.2V | 0.9V | - | 0.099V @ 1A | 1A | 43 µA | - | 90dB ~ 24dB (100Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WSON (2x2) |
|
|
TPS7A1418PDRVR1-A, LOW INPUT AND OUTPUT VOLTAG |
2,772 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 2.2V | 1.8V | - | 0.099V @ 1A | 1A | 43 µA | - | 90dB ~ 24dB (100Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WSON (2x2) |
|
XC6501D331GR-GIC REG LINEAR 3.3V 200MA 4USP |
2,550 |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.35V @ 200mA | 200mA | 21 µA | - | 50dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-USP (1.2x1.6) |
|
LP2985IM5-3.3/NOM3150-MA, 16-V, LOW-DROPOUT VOLTAG |
2,515 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 3.3V | - | 0.575V @ 150mA | 150mA | 95 µA | 2 mA | 70dB ~ 40dB (1kHz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
TPS7A1408PDRVR1-A, LOW INPUT AND OUTPUT VOLTAG |
2,450 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 2.2V | 0.8V | - | 0.099V @ 1A | 1A | 43 µA | - | 90dB ~ 24dB (100Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WSON (2x2) |
|
LM79L05ACTL/NOPBIC REG LINEAR -5V 100MA 6DSBGA |
366 |
|
Datasheet | - | 6-WFBGA, DSBGA | Tape & Reel (TR) | Active | Negative | Fixed | 1 | -35V | -5V | - | - | 100mA | 6 mA | - | 50dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 70°C | - | - | Surface Mount | 6-DSBGA (1.5x1.3) |
|
LP5996SD-1018/NOPBIC REG LINEAR 1V/1.8V 10SON |
933 |
|
Datasheet | - | 10-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 6V | 1V, 1.8V | - | -, 0.55V @ 300mA | 150mA, 300mA | 110 µA | 170 µA | 58dB ~ 45dB, 70dB ~ 60dB (1kHz ~ 20kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 10-SON (3x3) |
|
AP7387-30FDCR-7LDO CMOS LowCurr U-DFN2020-6 T&R |
5,985 |
|
Datasheet | - | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 60V | 3V | - | 1.35V @ 150mA | 150mA | 4 µA | - | - | Current Limit | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | U-DFN2020-6 (Type C) |
|
|
AP7387-36FDC-7LDO CMOS LowCurr U-DFN2020-6 T&R |
5,970 |
|
Datasheet | - | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 60V | 3.6V | - | 1.35V @ 150mA | 150mA | 4 µA | - | - | Current Limit | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | U-DFN2020-6 (Type C) |
|
|
AP7387-36FDCR-7LDO CMOS LowCurr U-DFN2020-6 T&R |
5,800 |
|
Datasheet | - | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 60V | 3.6V | - | 1.35V @ 150mA | 150mA | 4 µA | - | - | Current Limit | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | U-DFN2020-6 (Type C) |
|

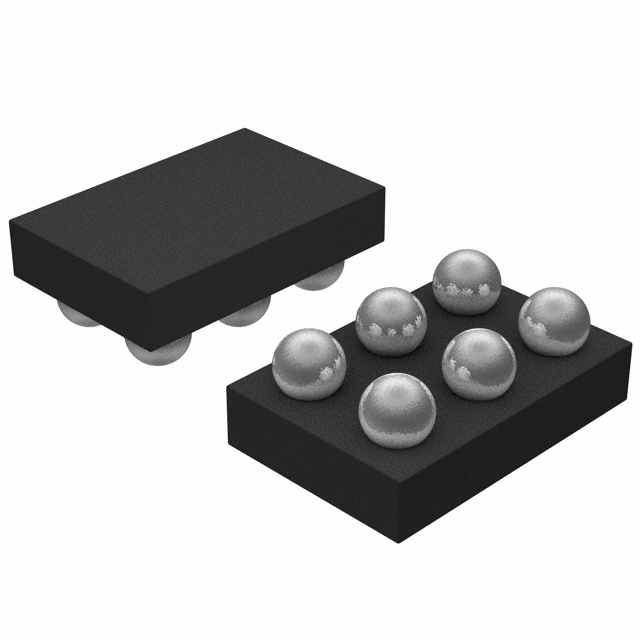

NCP156BBFCT120180T2GDUAL 500 MA / 250 MA LDO FOR CAM |
4,975 |
|
Datasheet | - | 6-XFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 5.5V | 1.2V, 1.8V | - | 0.15V @ 500mA | 500mA, 250mA | 130 µA | - | 70dB ~ 92dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature | 125°C (TJ) | - | - | Surface Mount | 6-WLCSP (1.2x0.8) |
|
|
AP7387-30FDC-7LDO CMOS LowCurr U-DFN2020-6 T&R |
4,830 |
|
Datasheet | - | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 60V | 3V | - | 1.35V @ 150mA | 150mA | 4 µA | - | - | Current Limit | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | U-DFN2020-6 (Type C) |
|
NCV8164AMTWADJTAGLDO 300 MA AD 1.2V, ULTRA-LOW NO |
3,000 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 1.2V | 5V | 0.295V @ 300mA | 300mA | 40 µA | - | 83dB ~ 61dB (100Hz ~ 100kHz) | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount, Wettable Flank | 6-WDFNW (2x2) |
|

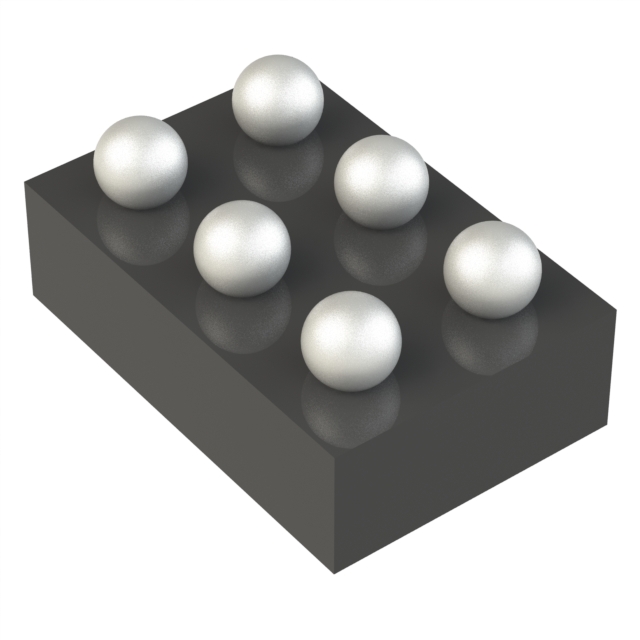

MT6680P/AGENIO 1200, GENIO 700< GENIO 510 |
3,000 |
|
Datasheet | - | 6-UFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.5V | 3V | 0.075V @ 1A | 1A | 50 µA | - | 70dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-WLCSP (.80x1.2) |
|
RT9013-18GQWIC LDO 0.5A LOW DROPOUT WDFN-6 |
2,500 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.4V @ 500mA | 500mA | 50 µA | - | 50dB (10kHz) | Current Limit, Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-WDFN (2x2) |
|
AP7361-33D-13IC REG LINEAR 3.3V 1A TO252 |
1,626 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.7V @ 1A | 1A | 90 µA | - | 65dB ~ 45dB (1kHz ~ 10kHz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | TO-252 (DPAK) |
|
TLV702475DBVTIC REG LIN 4.75V 300MA SOT23-5 |
617 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 4.75V | - | 0.38V @ 300mA | 300mA | 55 µA | 370 µA | 68dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
