Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCR2LE09,LM(CTPB-F WCSP4 CMOS LDO DDRULATOR |
4,000 |
|
Datasheet | TCR2LE | SOT-553 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 0.9V | - | 1.48V @ 150mA | 200mA | 2 µA | - | - | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | ESV |
|
|
TCR2LE115,LM(CTLOW DROPOUT (LDO) IOUT: 200MA PD |
4,000 |
|
Datasheet | TCR2LE | SOT-553 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.15V | - | 1.3V @ 150mA | 200mA | 2 µA | - | - | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | ESV |
|
|
TCR2LE095,LM(CTLOW DROPOUT (LDO) IOUT: 200MA PD |
4,000 |
|
Datasheet | TCR2LE | SOT-553 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 0.95V | - | 1.48V @ 150mA | 200mA | 2 µA | - | - | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | ESV |
|
|
TCR2LE085,LM(CTLOW DROPOUT (LDO) IOUT: 200MA PD |
3,990 |
|
Datasheet | TCR2LE | SOT-553 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 0.85V | - | 1.58V @ 150mA | 200mA | 2 µA | - | - | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | ESV |
|
TCR2LF15,LM(CTIC REG LINEAR 1.5V 200MA SMV |
3,000 |
|
Datasheet | TCR2LF | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.5V | - | 1.13V @ 150mA | 200mA | 2 µA | - | - | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | SMV |
|
TLV71310PQDBVRQ1IC REG LINEAR 1V 150MA SOT23-5 |
2,905 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1V | - | 1.02V @ 150mA | 150mA | 75 µA | - | 70dB ~ 55dB (100Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SOT-23-5 |
|
|
TLV71312PQDBVRQ1IC REG LINEAR 1.2V 150MA SOT23-5 |
2,584 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.2V | - | 1.02V @ 150mA | 150mA | 75 µA | - | 70dB ~ 55dB (100Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SOT-23-5 |
|
MIC5378YMT-TRIC REG LIN POS ADJ 150MA 8TMLF |
5,000 |
|
Datasheet | - | 8-UFDFN Exposed Pad, 8-TMLF® | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 1V | 5.3V | 0.2V @ 150mA | 150mA | 45 µA | - | 60dB ~ 50dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-TMLF® (1.2x1.2) |
|
|
TLV71325PQDBVRQ1IC REG LINEAR 2.5V 150MA SOT23-5 |
4,892 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.57V @ 150mA | 150mA | 75 µA | - | 70dB ~ 55dB (100Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SOT-23-5 |
|
TPS7A0312PDQNR200-MA, NANOPOWER-IQ (200 NA), L |
4,094 |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.2V | - | 0.79V @ 200mA | 200mA | 300 nA | - | 55dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-X2SON (1x1) |
|
TCR2LE10,LM(CTIC REG LINEAR 1V 200MA ESV |
4,000 |
|
Datasheet | TCR2LE | SOT-553 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1V | - | 1.4V @ 150mA | 200mA | 2 µA | - | - | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | ESV |
|
|
TCR2LE20,LM(CTIC REG LINEAR 2V 200MA ESV |
4,000 |
|
Datasheet | TCR2LE | SOT-553 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2V | - | 0.56V @ 150mA | 200mA | 2 µA | - | - | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | ESV |
|

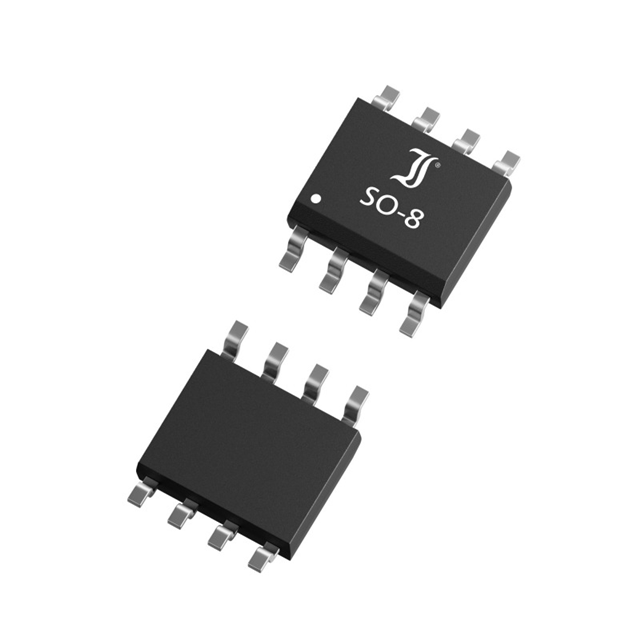

DI78L3.3DABVR SO8 30V 3.168V 3.432V 125C |
4,000 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 30V | 3.3V | - | - | 100mA | 6 mA | - | 49dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
DI78L06DABVR SO-8 30V 5.76V 6.24V 125DEG |
4,000 |
|
Datasheet | DI78LxxDAB | 8-SOIC (0.154", 3.90mm Width) | Cut Tape (CT) | Active | Positive | Fixed | 1 | 30V | 6V | - | - | 100mA | 6 mA | - | 46dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
DI78L15DABVR SO-8 35V 14.4V 15.6V 125DEG |
4,000 |
|
Datasheet | DI78LxxDAB | 8-SOIC (0.154", 3.90mm Width) | Cut Tape (CT) | Active | Positive | Fixed | 1 | 35V | 15V | - | - | 100mA | 6.5 mA | - | 39dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
TCR2LE27,LM(CTIC REG LINEAR 2.7V 200MA ESV |
3,990 |
|
Datasheet | TCR2LE | SOT-553 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.7V | - | 0.38V @ 150mA | 200mA | 2 µA | - | - | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | ESV |
|
|
TCR2LE36,LM(CTIC REG LINEAR 3.6V 200MA ESV |
3,780 |
|
Datasheet | TCR2LE | SOT-553 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.6V | - | 0.3V @ 150mA | 200mA | 2 µA | - | - | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | ESV |
|
|
DI78L05DABVR SO-8 30V 4.8V 5.2V 125C 6MA |
3,648 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 30V | 5V | - | - | 100mA | 6 mA | - | 49dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
DI78L18DABVR SO-8 40V 17.3V 18.7V 125DEG |
3,231 |
|
Datasheet | DI78LxxDAB | 8-SOIC (0.154", 3.90mm Width) | Cut Tape (CT) | Active | Positive | Fixed | 1 | 40V | 18V | - | - | 100mA | 6.5 mA | - | 38dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
DI62063.6S2VR SOT23 7V 3.528V 3.672V |
3,000 |
|
Datasheet | DI6206xxS2 | TO-236-3, SC-59, SOT-23-3 | Cut Tape (CT) | Active | Positive | Fixed | 1 | 6V | 3.6V | - | 0.68V @ 100mA | 200mA | - | - | - | Current Limit | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | SOT-23-3 (TO-236) |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
