Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX1735EUK50+TIC REG LIN NEG ADJ 200MA SOT23-5 |
4,794 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Negative | Adjustable (Fixed) | 1 | -6.5V | -1.25V (-5V) | -5.5V | 0.24V @ 200mA | 200mA | 85 µA | 125 µA | 60dB (100Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|

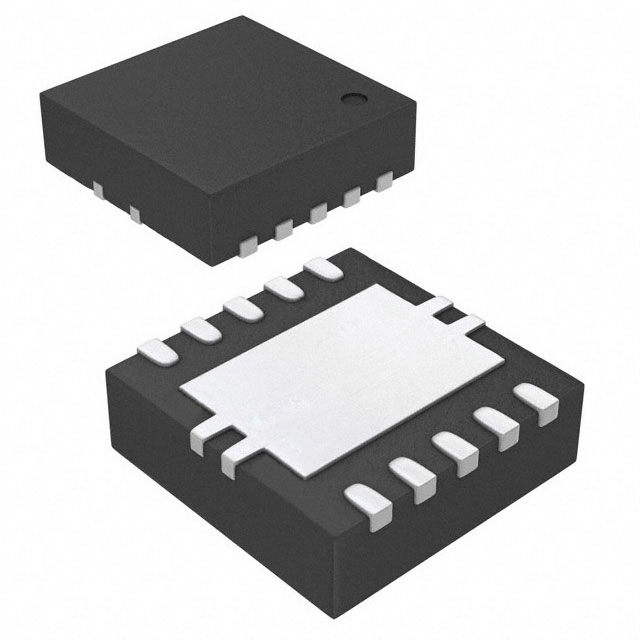

TPS7A3901DSCRIC REG LINEAR POS/NEG ADJ 10WSON |
2,909 |
|
Datasheet | - | 10-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive and Negative | Adjustable | 2 | ±33V | 1.2V, 0V | 30V, -30V | 0.5V @ 150mA | 150mA | 150 µA | 904 µA | 69dB (120Hz) | Current Limit, Enable, Soft Start | Over Temperature, Under Voltage Lockout (UVLO) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 10-WSON (3x3) |
|
ADP1755ACPZ-R7IC REG LIN POS ADJ 1.2A 16LFCSP |
5,492 |
|
Datasheet | - | 16-WQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 3.6V | 0.75V | 3.3V | 0.2V @ 1.2A | 1.2A | 800 µA | 1.4 mA | 65dB ~ 51dB (1kHz ~ 100kHz) | Enable, Power Good, Soft Start | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 16-LFCSP (4x4) |
|
LT3009IDC-5#TRMPBFIC REG LINEAR 5V 20MA 6DFN |
1,813 |
|
Datasheet | - | 6-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 20V | 5V | - | 0.45V @ 20mA | 20mA | 6 µA | 1 mA | 56dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 6-DFN (2x2) |
|
TPS7A8300ARGRTIC REG LINEAR POS ADJ 2A 20VQFN |
501 |
|
Datasheet | - | 20-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable/Programmable | 1 | 6.5V | 0.8V | 5.2V | 0.3V @ 2A | 2A | 4 mA | 5 mA | 42dB ~ 25dB (10kHz ~ 500kHz) | Enable, Power Good, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 20-VQFN (3.5x3.5) |
|
ADP7142ACPZN3.3-R7IC REG LINEAR 3.3V 200MA 6LFCSP |
6,418 |
|
Datasheet | - | 6-UDFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 3.3V | - | 0.42V @ 200mA | 200mA | 140 µA | 320 µA | - | Enable, Soft Start | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 6-LFCSP-UD (2x2) |
|
|
ADP7142ACPZN1.8-R7IC REG LINEAR 1.8V 200MA 6LFCSP |
2,054 |
|
Datasheet | - | 6-UDFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 1.8V | - | - | 200mA | 140 µA | 320 µA | - | Enable, Soft Start | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 6-LFCSP-UD (2x2) |
|
|
ADP7142ACPZN-R7IC REG LIN POS ADJ 200MA 6LFCSP |
2,038 |
|
Datasheet | - | 6-UDFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 40V | 1.2V | 39.58V | 0.42V @ 200mA | 200mA | 140 µA | 320 µA | 88dB ~ 50dB (10kHz ~ 1MHz) | Enable, Soft Start | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 6-LFCSP-UD (2x2) |
|
|
ADP7142ACPZN5.0-R7IC REG LINEAR 5V 200MA 6LFCSP |
503 |
|
Datasheet | - | 6-UDFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 5V | - | 0.42V @ 200mA | 200mA | 140 µA | 320 µA | 88dB ~ 50dB (10kHz ~ 1MHz) | Enable, Soft Start | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 6-LFCSP-UD (2x2) |
|
ADP1708ACPZ-R7IC REG LINEAR POS ADJ 1A 8LFCSP |
9,230 |
|
Datasheet | - | 8-WFDFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.8V | 5V | 0.6V @ 1A | 1A | 390 µA | 1.55 mA | 70dB ~ 56dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-LFCSP (3x3) |
|
ADP7142ARDZ-R7IC REG LIN POS ADJ 200MA 8SOIC |
7,602 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 40V | 1.2V | 39.58V | 0.42V @ 200mA | 200mA | 140 µA | 320 µA | 88dB ~ 50dB (10kHz ~ 1MHz) | Enable, Soft Start | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC-EP |
|
ADP1708ARDZ-R7IC REG LINEAR POS ADJ 1A 8SOIC |
5,583 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.8V | 5V | 0.6V @ 1A | 1A | 390 µA | 1.55 mA | 70dB ~ 56dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC-EP |
|
ADP3330ARTZ3.3-RL7IC REG LINEAR 3.3V 200MA SOT23-6 |
7,585 |
|
Datasheet | anyCAP® | SOT-23-6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 12V | 3.3V | - | 0.23V @ 200mA | 200mA | 50 µA | 4 mA | - | Error Flag, Shutdown | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
|
ADP3330ARTZ-5-RL7IC REG LINEAR 5V 200MA SOT23-6 |
301 |
|
Datasheet | anyCAP® | SOT-23-6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 12V | 5V | - | 0.23V @ 200mA | 200mA | 50 µA | 4 mA | - | Error Flag, Shutdown | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
MIC29152WU-TRIC REG LIN POS ADJ 1.5A TO263-5 |
3,931 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 26V | 1.25V | 25V | 0.6V @ 1.5A | 1.5A | - | - | - | Enable | Over Current, Over Temperature, Reverse Polarity, Transient Voltage | -40°C ~ 125°C | - | - | Surface Mount | TO-263-5 |
|
|
MIC29152WUIC REG LIN POS ADJ 1.5A TO263-5 |
323 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Active | Positive | Adjustable | 1 | 26V | 1.25V | 25V | 0.6V @ 1.5A | 1.5A | - | - | - | Enable | Over Current, Over Temperature, Reverse Polarity, Transient Voltage | -40°C ~ 125°C | - | - | Surface Mount | TO-263-5 |
|
|
TPS7A4700RGWRIC REG LINEAR POS ADJ 1A 20VQFN |
10,732 |
|
Datasheet | - | 20-VQFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 35V | 1.4V | 20.5V | 0.45V @ 1A | 1A | 1 mA | 6.1 mA | 78dB (1kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 20-VQFN (5x5) |
|

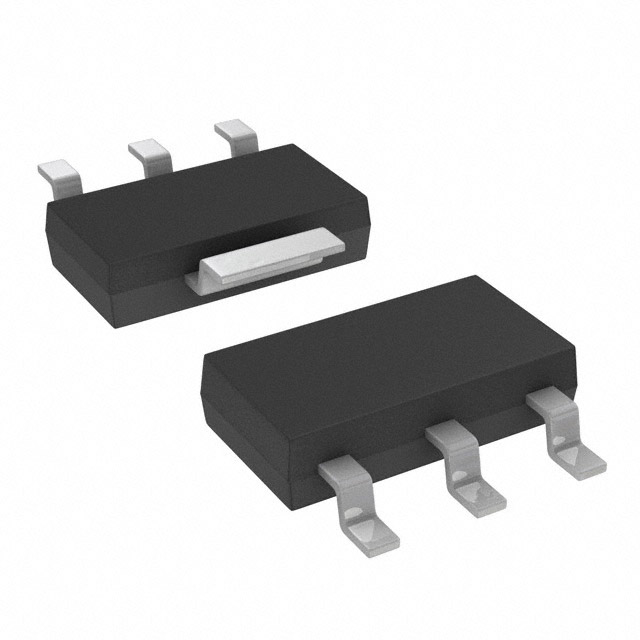

ADP3338AKCZ-3.3RL7IC REG LINEAR 3.3V 1A SOT223-3 |
3,474 |
|
Datasheet | anyCAP® | TO-261-4, TO-261AA | Tape & Reel (TR) | Not For New Designs | Positive | Fixed | 1 | 8V | 3.3V | - | 0.4V @ 1A | 1A | 190 µA | 30 mA | - | - | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-223-3 |
|
|
ADP3338AKCZ-3.3-RLIC REG LINEAR 3.3V 1A SOT223-3 |
1,995 |
|
Datasheet | anyCAP® | TO-261-4, TO-261AA | Tape & Reel (TR) | Not For New Designs | Positive | Fixed | 1 | 8V | 3.3V | - | 0.4V @ 1A | 1A | 190 µA | 30 mA | - | - | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-223-3 |
|
|
TPS7A4701RGWRIC REG LINEAR POS ADJ 1A 20VQFN |
661 |
|
Datasheet | - | 20-VQFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 35V | 1.4V | 34V | 0.45V @ 1A | 1A | 1 mA | 6.1 mA | 78dB (1kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 20-VQFN (5x5) |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
