Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BD433U2EFJ-CE2200MA 3.3V OUTPUT LDO REGULATORS |
1,722 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 42V | 3.3V | - | 0.35V @ 150mA | 200mA | 90 µA | 150 µA | 65dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-HTSOP-J |
|
LP2966IMM-2525/NOPBIC REG LINEAR 2.5V 150MA 8VSSOP |
420 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 7V | 2.5V | - | 0.27V @ 150mA | 150mA | 300 µA | 600 µA | 60dB ~ 40dB (120Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-VSSOP |
|
ADP162ACBZ-2.1-R7IC REG LINEAR 2.1V 150MA 4WLCSP |
7,265 |
|
Datasheet | - | 4-WFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.1V | - | - | 150mA | 1.25 µA | 65 µA | - | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 4-WLCSP (0.96x0.96) |
|
ADP170AUJZ-1.5-R7IC REG LINEAR 1.5V 300MA TSOT5 |
5,501 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 3.6V | 1.5V | - | - | 300mA | 60 µA | 260 µA | 73dB ~ 47dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | TSOT-23-5 |
|
S-19243E00A-E8T1UIC REG LIN POS ADJ 500MA 8HSOPA |
3,530 |
|
Datasheet | S-19243xxxA | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 10V | 1V | 9V | - | 500mA | 150 µA | - | - | Soft Start | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-HSOPA |
|
|
ADP162ACBZ-3.0-R7IC REG LINEAR 3V 150MA 4WLCSP |
2,899 |
|
Datasheet | - | 4-WFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | - | 150mA | 1.25 µA | 65 µA | - | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 4-WLCSP (0.96x0.96) |
|
|
ADP162ACBZ-3.2-R7IC REG LINEAR 3.2V 150MA 4WLCSP |
2,695 |
|
Datasheet | - | 4-WFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.2V | - | - | 150mA | 1.25 µA | 65 µA | - | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 4-WLCSP (0.96x0.96) |
|
|
ADP160ACBZ-4.2-R7IC REG LINEAR 4.2V 150MA 4WLCSP |
1,952 |
|
Datasheet | - | 4-WFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 4.2V | - | - | 150mA | 1.25 µA | 65 µA | - | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 4-WLCSP (0.96x0.96) |
|
|
ADP162ACBZ-2.3-R7IC REG LINEAR 2.3V 150MA 4WLCSP |
1,392 |
|
Datasheet | - | 4-WFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.3V | - | - | 150mA | 1.25 µA | 65 µA | - | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 4-WLCSP (0.96x0.96) |
|
|
ADP160ACBZ-1.2-R7IC REG LINEAR 1.2V 150MA 4WLCSP |
370 |
|
Datasheet | - | 4-WFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.2V | - | - | 150mA | 1.25 µA | 65 µA | 72dB ~ 62dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 4-WLCSP (0.96x0.96) |
|
TPS77418DGKIC REG LINEAR 1.8V 250MA 8VSSOP |
299 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Bulk | Active | Positive | Fixed | 1 | 10V | 1.8V | - | - | 250mA | 125 µA | - | 55dB (1kHz) | Enable, Power Good | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-VSSOP |
|
RT9013-28GBIC REG LINEAR 2.8V 500MA SOT23-5 |
5,980 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.4V @ 500mA | 500mA | 50 µA | - | 50dB (10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
NCV33375ST1.8T3GIC REG LINEAR 1.8V 300MA SOT223 |
3,965 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 13V | 1.8V | - | 0.5V @ 300mA | 300mA | 200 µA | - | 75dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-223 (TO-261) |
|

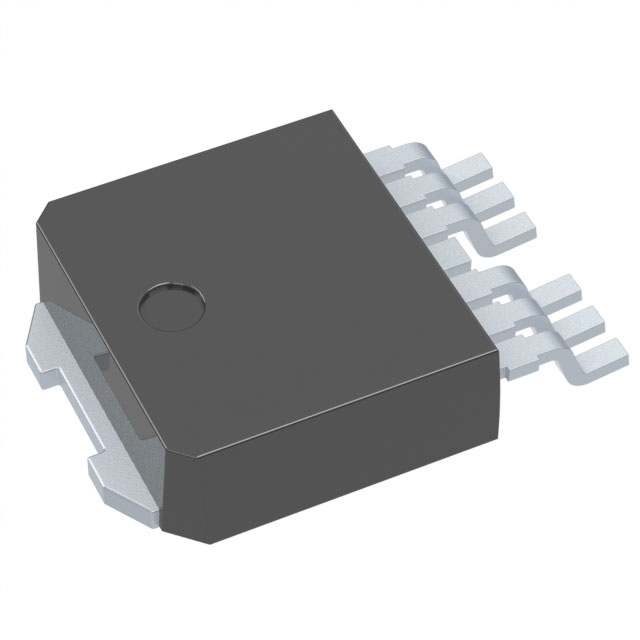

L5300AH7TRIC REG LINEAR 5V 300MA 6HPAK |
2,228 |
|
Datasheet | - | TO-252-7, DPAK (6 Leads + Tab) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 5V | - | 0.5V @ 300mA | 300mA | 80 µA | 4.2 mA | 60dB (100Hz) | Enable, Reset | Over Temperature, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | 6-HPAK |
|
R1514S033B-E2-JEIC REG LINEAR 3.3V 150MA 6HSOP |
1,863 |
|
Datasheet | R1514x | 6-SOIC Variation (0.154", 3.90mm Width), 4 Leads + 2 Fins | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 3.3V | - | 0.7V @ 120mA | 150mA | 20 µA | - | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C (TA) | Automotive | AEC-Q100 | Surface Mount | 6-HSOP-J |
|
LP38851SX-ADJ/NOPBIC REG LIN POS ADJ 800MA DDPAK |
956 |
|
Datasheet | - | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.8V | 1.8V | 0.2V @ 800mA | 800mA | 300 µA | 9 mA | 72dB ~ 61dB (120Hz ~ 1kHz) | Enable, Soft Start | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-7) |
|
LP38841T-0.8/NOPBIC REG LINEAR 0.8V 800MA TO220-5 |
353 |
|
Datasheet | - | TO-220-5 | Tube | Active | Positive | Fixed | 1 | 5.5V | 0.8V | - | 0.21V @ 800mA | 800mA | 30 µA | 40 mA | 80dB ~ 65dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
LP38851T-ADJ/NOPBIC REG LIN POS ADJ 800MA TO220-7 |
331 |
|
Datasheet | - | TO-220-7 Formed Leads | Tube | Active | Positive | Adjustable | 1 | 5.5V | 0.8V | 1.8V | 0.2V @ 800mA | 800mA | 300 µA | 9 mA | 72dB ~ 61dB (120Hz ~ 1kHz) | Enable, Soft Start | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Through Hole | TO-220-7 |
|
|
LP38841T-1.5/NOPBIC REG LINEAR 1.5V 800MA TO220-5 |
326 |
|
Datasheet | - | TO-220-5 | Tube | Active | Positive | Fixed | 1 | 5.5V | 1.5V | - | 0.21V @ 800mA | 800mA | 30 µA | 40 mA | 80dB ~ 65dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
BD15KA5WFP-E2IC REG LINEAR 1.5V 500MA TO252-5 |
1,999 |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.5V | - | 0.2V @ 200mA | 500mA | 550 µA | 550 µA | 50dB (120Hz) | Enable | Over Current, Over Temperature, Soft Start | -40°C ~ 105°C | - | - | Surface Mount | TO-252-5 |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
