Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LD39020DTPU30RIC REG LINEAR 3V 200MA 4DFN |
9,860 |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | 0.35V @ 200mA | 200mA | 40 µA | - | 80dB ~ 55dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-DFN (1x1) |
|
TLV70029DSERIC REG LINEAR 2.9V 200MA 6WSON |
5,858 |
|
Datasheet | - | 6-WFDFN | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.9V | - | 0.25V @ 200mA | 200mA | 55 µA | 270 µA | 68dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WSON (1.5x1.5) |
|
TPS7A2040PDQNR300-MA, ULTRA-LOW-NOISE, LOW-IQ, |
1,771 |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 4V | - | 0.14V @ 300mA | 300mA | 15 µA | - | 65dB ~ 40dB (100Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-X2SON (1x1) |
|
MIC5370-PGYMT-TRIC REG LINEAR 1.8V/3V 6TMLF |
8,276 |
|
Datasheet | - | 6-UFDFN Exposed Pad, 6-TMLF® | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 5.5V | 1.8V, 3V | - | 0.31V @ 150mA, 0.31V @ 150mA | 150mA, 150mA | 45 µA | 85 µA | 60dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 6-TMLF® (1.6x1.6) |
|
|
MIC5370-SSYMT-TRIC REG LINEAR 3.3V/3.3V 6TMLF |
4,980 |
|
Datasheet | - | 6-UFDFN Exposed Pad, 6-TMLF® | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 5.5V | 3.3V, 3.3V | - | 0.31V @ 150mA, 0.31V @ 150mA | 150mA, 150mA | 45 µA | 85 µA | 60dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 6-TMLF® (1.6x1.6) |
|

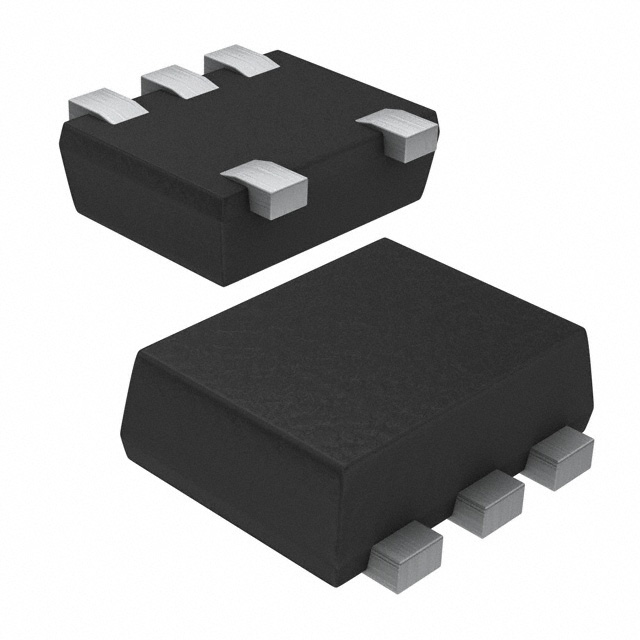

TCR2EE45,LM(CTIC REG LINEAR 4.5V 200MA ESV |
8,241 |
|
Datasheet | TCR2EE | SOT-553 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 4.5V | - | 0.2V @ 150mA | 200mA | 60 µA | - | 73dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | ESV |
|
TCR2EE34,LM(CTIC REG LINEAR 3.4V 200MA ESV |
7,995 |
|
Datasheet | TCR2EE | SOT-553 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.4V | - | 0.2V @ 150mA | 200mA | 60 µA | - | 73dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | ESV |
|
TCR2EE20,LM(CTIC REG LINEAR 2V 200MA ESV |
4,800 |
|
Datasheet | TCR2EE | SOT-553 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2V | - | 0.31V @ 150mA | 200mA | 60 µA | - | 73dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | ESV |
|
TCR2LF085,LM(CTIC REG LINEAR 0.85V 200MA SMV |
2,942 |
|
Datasheet | TCR2LF | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 0.85V | - | 1.58V @ 150mA | 200mA | 2 µA | - | - | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | SMV |
|
|
TCR2LF09,LM(CTIC REG LINEAR 0.9V 200MA SMV |
1,240 |
|
Datasheet | TCR2LF | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 0.9V | - | 1.48V @ 150mA | 200mA | 2 µA | - | - | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | SMV |
|
MIC5249-3.0YMMIC REG LINEAR 3V 300MA 8MSOP |
527 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | Positive | Fixed | 1 | 6V | 3V | - | 0.6V @ 300mA | 300mA | 200 µA | - | 65dB (120Hz) | Enable, Reset | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 8-MSOP |
|
MIC5381-MGYFT-TRIC REG LINEAR 1.8V/2.8V 6TMLF |
4,925 |
|
Datasheet | - | 6-UFQFN, 6-TMLF® | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 5.5V | 1.8V, 2.8V | - | 0.31V @ 150mA, 0.31V @ 150mA | 150mA, 150mA | 45 µA | 85 µA | 60dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 6-TMLF® (1x1) |
|
|
LD39020DTPU18RIC REG LINEAR 1.8V 200MA 4DFN |
9,985 |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.35V @ 200mA | 200mA | 40 µA | - | 80dB ~ 55dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-DFN (1x1) |
|
LD39020DTPU33RIC REG LINEAR 3.3V 200MA 4DFN |
7,975 |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.35V @ 200mA | 200mA | 40 µA | - | 80dB ~ 55dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-DFN (1x1) |
|
|
TCR2LE13,LM(CTIC REG LINEAR 1.3V 200MA ESV |
7,974 |
|
Datasheet | TCR2LE | SOT-553 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.3V | - | 1.13V @ 150mA | 200mA | 2 µA | - | - | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | ESV |
|
|
LD39030DTPU33RIC REG LINEAR 3.3V 300MA 4DFN |
29,393 |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.33V @ 300mA | 300mA | 40 µA | - | 80dB ~ 55dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature, Soft Start | -40°C ~ 125°C | - | - | Surface Mount | 4-DFN (1x1) |
|
BU19TD3WG-TRIC REG LINEAR 1.9V 200MA 5SSOP |
2,895 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.9V | - | 0.6V @ 200mA | 200mA | 60 µA | - | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 5-SSOP |
|
|
TCR2LE31,LMIC REG LINEAR 3.1V 200MA ESV |
3,990 |
|
Datasheet | TCR2LE | SOT-553 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.1V | - | 0.3V @ 150mA | 200mA | 2 µA | - | - | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | ESV |
|
LDLN025PU32RIC REG LINEAR 3.2V 250MA 4DFN |
11,990 |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.2V | - | 0.25V @ 250mA | 250mA | 25 µA | 425 µA | 80dB ~ 60dB (100Hz ~ 100KHz) | Enable | Over Current, Over Temperature, Short Circuit, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-DFN (1x1) |
|
RP130K301D-TRIC REG LINEAR 3V 150MA DFN1010-4 |
9,855 |
|
Datasheet | RP130x | 4-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 3V | - | 0.51V @ 150mA | 150mA | 58 µA | - | 80dB (1kHz) | Enable | Over Current | -40°C ~ 105°C (TA) | - | - | Surface Mount | DFN(PL)1010-4 |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
