Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM2936DT-3.3/NOPBIC REG LINEAR 3.3V 50MA TO252-3 |
416 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Active | Positive | Fixed | 1 | 40V | 3.3V | - | 0.4V @ 50mA | 50mA | 15 µA | 2.5 mA | 60dB (120Hz) | - | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-252-3 |
|
NCV8535MNADJR2GIC REG LIN POS ADJ 500MA 10DFN |
10,692 |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 12V | 1.25V | 10V | 0.34V @ 500mA | 500mA | 190 µA | 14 mA | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Automotive | AEC-Q100 | Surface Mount | 10-DFN (3x3) |
|
|
NCV8535MN180R2GIC REG LINEAR 1.8V 500MA 10DFN |
5,997 |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 12V | 1.8V | - | 1.13V @ 500mA | 500mA | 190 µA | 14 mA | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Automotive | AEC-Q100 | Surface Mount | 10-DFN (3x3) |
|
NCV8605MNADJT2GIC REG LINEAR POS ADJ 500MA 6DFN |
900 |
|
Datasheet | - | 6-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6V | 1.25V | 5V | 0.47V @ 500mA | 500mA | 180 µA | - | 62dB ~ 40dB (120Hz ~ 10kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-DFN (3x3.3) |
|
MP2013GG-PIC REG LINEAR POS ADJ 150MA 6QFN |
688 |
|
Datasheet | - | 6-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 40V | 1.215V | 15V | 0.9V @ 150mA | 150mA | 7.2 µA | 50 µA | 58dB ~ 41dB (100Hz ~ 1kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-QFN (2x2) |
-Exposed-Pad.jpg "TQL850CSV50 RLG")
|
TQL850CSV50 RLG500MA, LOW-IQ 40A LOW-DROPOUT LI |
3,470 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 50V | 5V | - | 0.425V @ 250mA | 500mA | 77 µA | - | 59dB (100Hz) | Current Limit, Enable, Reset, Watchdog | Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-SOP-EP |
|
BA178M06CP-E2IC REG LINEAR 6V 500MA TO220-3 |
481 |
|
Datasheet | - | TO-220-3 Cropped Leads | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 21V | 6V | - | 2V @ 500mA (Typ) | 500mA | 4.5 mA | 6 mA | 74dB (120Hz) | - | - | -40°C ~ 85°C | - | - | Through Hole | TO-220-3 |
|
S-19212D33A-M5T1UIC REG LINEAR 3.3V 250MA SOT23-5 |
2,479 |
|
Datasheet | S-19212B/DxxA | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 3.3V | - | 0.8V @ 250mA | 250mA | 8.5 µA | - | 45dB (100Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-23-5 |
|
LP2986AIMM-5.0/NOPBIC REG LINEAR 5V 200MA 8VSSOP |
1,524 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 5V | - | 0.35V @ 200mA | 200mA | 120 µA | 3.7 mA | 65dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-VSSOP |
|

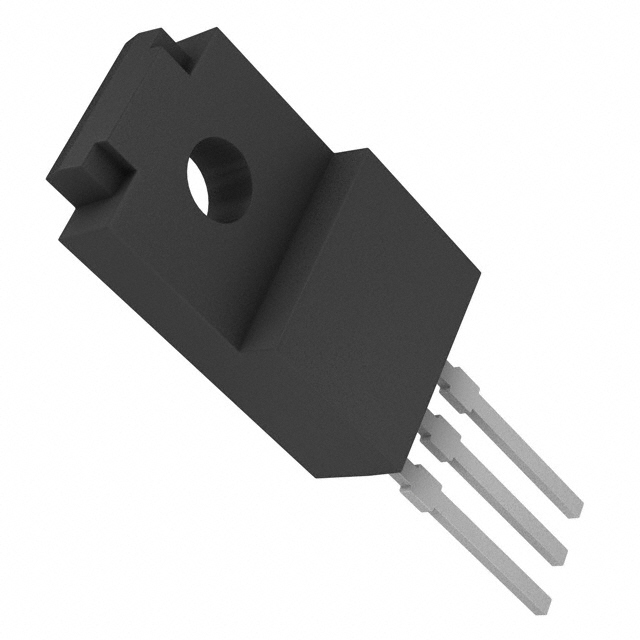

BA17810TIC REG LINEAR 10V 1A TO220FP |
286 |
|
Datasheet | - | TO-220-3 Full Pack | Bulk | Not For New Designs | Positive | Fixed | 1 | 25V | 10V | - | 2V @ 1A (Typ) | 1A | 4.5 mA | 6 mA | 64dB (120Hz) | - | - | -40°C ~ 85°C | - | - | Through Hole | TO-220FP |
|
TPS79650DRBRIC REG LINEAR 5V 1A 8SON |
2,579 |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 5V | - | 0.3V @ 1A | 1A | 385 µA | - | 59dB ~ 42dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 8-SON (3x3) |
|
NCV47721PAAJR2GIC REG LIN POS ADJ 200MA 14TSSOP |
2,498 |
|
Datasheet | - | 14-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 40V | 3.3V | 20V | 0.5V @ 200mA | 200mA | 1 mA | 15 mA | 80dB (100Hz) | Enable, Error Flag | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 14-TSSOP-EP |
|
ADP124ACPZ-2.8-R7IC REG LINEAR 2.8V 500MA 8LFCSP |
2,437 |
|
Datasheet | - | 8-UFDFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.23V @ 500mA | 500mA | 105 µA | 280 µA | 60dB (10kHz ~ 100kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 8-LFCSP-UD (2x2) |
|
BD50C0AWHFP-CTRIC REG LINEAR 5V 1A HRP-5 |
884 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 26.5V | 5V | - | 0.5V @ 500mA | 1A | 2.5 mA | 2.5 mA | 55dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | HRP-5 |
|
MP20051DQ-LF-PIC REG LINEAR POS ADJ 1A 8QFN |
453 |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.8V | 5V | 0.28V @ 1A | 1A | 600 µA | - | 65dB ~ 33dB (100Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 8-QFN (3x3) |
|
|
BD00C0AWHFP-CTRIC REG LINEAR POS ADJ 1A HRP-5 |
329 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 26.5V | 1V | 15V | 0.5V @ 500mA | 1A | 2.5 mA | 2.5 mA | 55dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | HRP-5 |
|
TPS7B8750QKVURQ1AUTOMOTIVE 500-MA, 40-V, LOW DRO |
6,954 |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 5V | - | 0.575V @ 500mA | 500mA | 26 µA | - | 70dB (1kHz) | Power Good | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | TO-252-5 |
|
TPS7B8233EPWPRQ1AUTOMOTIVE 300-MA, OFF-BATTERY ( |
6,829 |
|
Datasheet | - | 14-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 3.3V | - | 1.35V @ 300mA | 300mA | 5 µA | 6.5 µA | 60dB (100Hz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 150°C (TA) | Automotive | AEC-Q100 | Surface Mount | 14-HTSSOP |
__2.jpg "LD29080DT50R")
|
LD29080DT50RIC REG LINEAR 5V 800MA DPAK |
4,438 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 13V | 5V | - | 0.7V @ 800mA | 800mA | 180 µA | 35 mA | 64dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | DPAK |
|
|
TPS7B8250EPWPRQ1AUTOMOTIVE 300-MA, OFF-BATTERY ( |
2,059 |
|
Datasheet | - | 14-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 5V | - | 1.17V @ 300mA | 300mA | 5 µA | 6.5 µA | 60dB (100Hz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 150°C (TA) | Automotive | AEC-Q100 | Surface Mount | 14-HTSSOP |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
