Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SG117AHVT-DESCIC REG LINEAR POS ADJ 1.5A TO39 |
2,929 |
|
Datasheet | - | TO-205AD, TO-39-3 Metal Can | Tube | Active | Positive | Adjustable | 1 | 37V | 1.25V | 37V | - | 1.5A | - | - | 65dB ~ 80dB (120Hz) | - | Over Current | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-39 |
|
SG7818KIC REG LINEAR TO204AD |
3,451 |
|
Datasheet | - | TO-204AA, TO-3 | Tube | Active | Positive | - | 1 | - | - | - | - | - | - | - | - | - | - | - | Military | MIL-STD-883 | Through Hole | TO-204AA (TO-3) |
|
SG7818L-883BIC REG LINEAR 20CLCC |
3,466 |
|
Datasheet | - | 20-CLCC | Tube | Active | Positive | - | 1 | - | - | - | - | - | - | - | - | - | - | - | Military | MIL-STD-883 | Surface Mount | 20-CLCC (8.89x8.89) |
|
|
SG7818AKIC REG LINEAR TO204AD |
1,980 |
|
Datasheet | - | TO-204AA, TO-3 | Tube | Active | Positive | - | 1 | - | - | - | - | - | - | - | - | - | - | - | Military | MIL-STD-883 | Through Hole | TO-204AA (TO-3) |
|
|
SGR117AKIC REG LIN POS ADJ 1.5A TO204AD |
2,500 |
|
Datasheet | - | TO-204AA, TO-3 | Tube | Active | Positive | Adjustable | 1 | 37V | 1.25V | 37V | - | 1.5A | - | - | - | - | - | -55°C ~ 150°C (TJ) | Military | MIL-STD-883 | Through Hole | TO-204AA (TO-3) |
|
|
SG117IG-883BIC REG LINEAR POS ADJ 1.5A TO257 |
1,562 |
|
Datasheet | - | TO-257-3 | Tray | Active | Positive | Adjustable | 1 | 37V | 1.25V | 37V | - | 1.5A | - | - | 65dB ~ 80dB (120Hz) | - | Over Current | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-257 |
|
TLF2931GV50IC REG LINEAR FIXED LDO REG |
3,311 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | Positive | Fixed | 1 | 28V | 5V | - | 0.6V @ 100mA | 100mA | 1 mA | 15 mA | 80dB (120Hz) | - | Mirror-Image Insertion, Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-DSO-8 |
|
MIC5213-3.3BC5IC REG LINEAR MICROCAP LDO REG |
2,870 |
|
Datasheet | Teeny™ | 5-TSSOP, SC-70-5, SOT-353 | Bulk | Active | Positive | Fixed | 1 | 16V | 3.3V | - | 0.6V @ 80mA | 80mA | 750 µA | 3 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SC-70-5 |
|
MC78L05ACDR2GHIC REG LINEAR 5V 100MA 8SOIC |
3,415 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 30V | 5V | - | 1.7V @ 40mA | 100mA | 6 mA | - | 49dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
UPC2905BT-E2-AZIC REG LINEAR FIXED LDO REG |
3,467 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
LP2981IM5X-2.5/NOPBIC REG LINEAR FIXED LDO REG |
2,090 |
|
Datasheet | - | SC-74A, SOT-753 | Bulk | Active | Positive | Fixed | 1 | 16V | 2.5V | - | 0.37V @ 100mA | 100mA | 95 µA | 1.7 mA | 63dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|

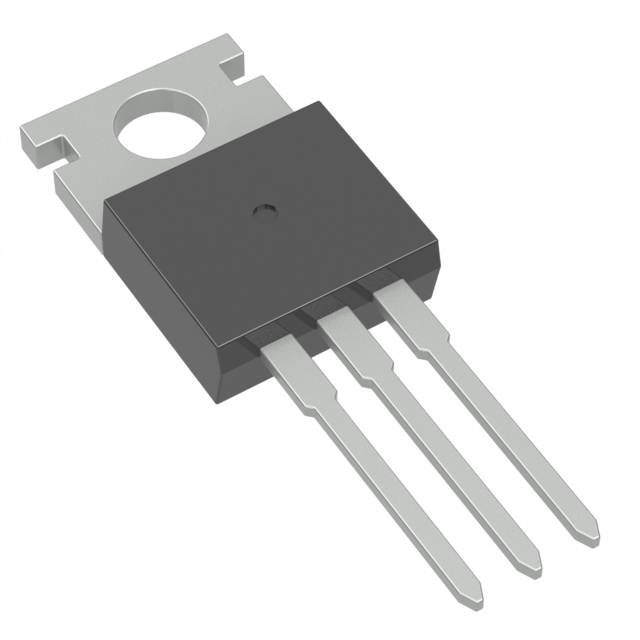

AZ1117T-1.8E1IC REG LINEAR 1.8V 1A TO220-3 |
3,051 |
|
Datasheet | AZ1117 | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 15V | 1.8V | - | 1.25V @ 1A | 1A | 10 mA | - | 75dB (120Hz) | - | Over Temperature | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220-3 |
|
|
AZ1117T-2.85E1IC REG LINEAR 2.85V 1A TO220-3 |
3,986 |
|
Datasheet | AZ1117 | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 15V | 2.85V | - | 1.25V @ 1A | 1A | 10 mA | - | 75dB (120Hz) | - | Over Temperature | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220-3 |
|
AZ2940D-1.8G1IC REG LINEAR 1.8V 1A TO252-2 |
1,777 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Positive | Fixed | 1 | 13.2V | 1.8V | - | 0.75V @ 1A | 1A | 25 mA | 18 mA | - | - | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-252-3 |
|
|
AZ2940TF-5.0G1IC REG LINEAR 5V 1A TO220F-3 |
3,926 |
|
Datasheet | - | TO-220-3 Full Pack | Tube | Obsolete | Positive | Fixed | 1 | 13.2V | 5V | - | 0.55V @ 1A | 1A | 25 mA | 18 mA | - | - | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220F-3 |
|
|
AZ2940D-3.3E1IC REG LINEAR 3.3V 1A TO252-2 |
1,300 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Positive | Fixed | 1 | 13.2V | 3.3V | - | 0.55V @ 1A | 1A | 25 mA | 18 mA | - | - | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-252-3 |
|
|
AZ2940D-3.3G1IC REG LINEAR 3.3V 1A TO252-2 |
1,724 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Positive | Fixed | 1 | 13.2V | 3.3V | - | 0.55V @ 1A | 1A | 25 mA | 18 mA | - | - | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-252-3 |
|
LP5911A033YKGRIC REG LINEAR SMD |
3,721 |
|
Datasheet | - | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EZ1085CM.TRIC REG LINEAR POS ADJ 3A TO263 |
4,431 |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 7V | 1.3V | 5.7V | 1.35V @ 3A | 3A | 10 mA | - | 72dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 70°C (TA) | - | - | Surface Mount | TO-263 |
|
|
EZ1085CM-3.3 TRIC REG LINEAR 3.3V 3A TO263 |
1,993 |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 3.3V | - | 1.35V @ 3A | 3A | 14 mA | - | 72dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 70°C (TA) | - | - | Surface Mount | TO-263 |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
