Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPQ2013GQ-AEC1-ZIC REG LINEAR POS ADJ 150MA 8QFN |
3,708 |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 40V | 1.215V | 15V | 0.9V @ 150mA | 150mA | 9 µA | 50 µA | 58dB ~ 41dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-QFN (3x3) |
|
MP2009EE-3.3-LF-PIC REG LINEAR 3.3V 120MA SC70-5 |
1,048 |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.12V @ 120mA (Typ) | 120mA | 90 µA | - | 78dB ~ 55dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature | -20°C ~ 85°C | - | - | Surface Mount | SC-70-5 |
|
MP20051DN-LFIC REG LINEAR POS ADJ 1A 8SOICE |
1,117 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tube | Active | Positive | Adjustable | 1 | 5.5V | 0.8V | 5V | 0.28V @ 1A | 1A | 600 µA | - | 65dB ~ 33dB (100Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 8-SOICE |
|

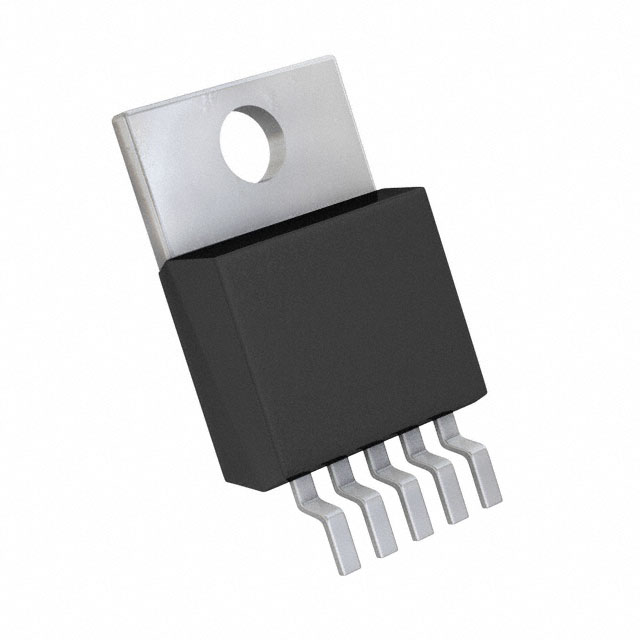

LT3015IT#40PBFIC REG LIN NEG ADJ 1.5A TO220-5 |
1,443 |
|
Datasheet | - | TO-220-5 Formed Leads | Tube | Discontinued at Digi-Key | Negative | Adjustable | 1 | -30V | -1.22V | -29.5V | 0.68V @ 1.5A | 1.5A | 2.4 mA | 70 mA | 65dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 Flow 40 |
|
AP2121AK-3.3TRG1-1IC REG LINEAR 3.3V 200MA SOT23-5 |
2,864 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.5V @ 200mA | 200mA | 50 µA | - | 70dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
AP2125AN-2.5TRG1IC REG LINEAR 2.5V 360MA SOT23-3 |
4,991 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 6V | 2.5V | - | 0.36V @ 300mA | 360mA | 90 µA | - | 70db (100Hz ~ 1kHz) | - | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
AP2125AN-3.0TRG1IC REG LINEAR 3V 300MA SOT23 |
3,366 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 6V | 3V | - | 0.3V @ 300mA | 300mA | 90 µA | 300 mA | 65dB (100Hz ~ 1kHz) | - | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
AP2125AN-3.3TRG1IC REG LINEAR 3.3V 300MA SOT23 |
4,854 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 6V | 3.3V | - | 0.3V @ 300mA | 300mA | 90 µA | 300 mA | 65dB (100Hz ~ 1kHz) | - | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
AP2125AN-4.15TRG1IC REG LINEAR 4.15V 300MA SOT23 |
1,175 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 6V | 4.15V | - | 0.3V @ 300mA | 300mA | 90 µA | 300 mA | 65dB (100Hz ~ 1kHz) | - | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
AP2125K-1.8TRE1IC REG LINEAR 1.8V 300MA SOT23-5 |
2,312 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.8V | - | 0.36V @ 300mA | 300mA | 90 µA | - | 70db (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
AP2125K-3.0TRE1IC REG LINEAR 3V 300MA SOT23-5 |
3,037 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3V | - | 0.3V @ 300mA | 300mA | 90 µA | - | 65dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
AP2125K-3.3TRE1IC REG LINEAR 3.3V 300MA SOT23-5 |
3,249 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.3V @ 300mA | 300mA | 90 µA | - | 65dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
AP2125K-4.2TRE1IC REG LINEAR 4.2V 300MA SOT23-5 |
2,136 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 4.2V | - | 0.3V @ 300mA | 300mA | 90 µA | - | 65dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
AP2125N-1.8TRE1IC REG LINEAR 1.8V 300MA SOT23-3 |
3,930 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.8V | - | 0.36V @ 300mA | 300mA | 90 µA | - | 70db (100Hz ~ 1kHz) | - | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
AP2125N-3.0TRE1IC REG LINEAR 3V 300MA SOT23-3 |
4,245 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3V | - | 0.3V @ 300mA | 300mA | 90 µA | - | 65dB (100Hz ~ 1kHz) | - | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
AP2125N-3.3TRE1IC REG LINEAR 3.3V 300MA SOT23-3 |
4,437 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.3V @ 300mA | 300mA | 90 µA | - | 65dB (100Hz ~ 1kHz) | - | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
 Exposed Pad.jpg "AP2132UMP-1.5TRG1")
|
AP2132UMP-1.5TRG1IC REG LIN POS ADJ 2A 8PSOP |
4,448 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable (Fixed) | 1 | 5.5V | 0.6V (1.5V) | 3V | 0.45V @ 2A | 2A | 300 µA | - | 60dB (100Hz ~ 1kHz) | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 8-PSOP |
|
|
AP2132UMP-1.8TRG1IC REG LIN POS ADJ 2A 8PSOP |
3,928 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable (Fixed) | 1 | 5.5V | 0.6V (1.8V) | 3V | 0.45V @ 2A | 2A | 300 µA | - | 60dB (100Hz ~ 1kHz) | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 8-PSOP |
|
|
AP2132UMP-2.5TRG1IC REG LIN POS ADJ 2A 8PSOP |
1,299 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable (Fixed) | 1 | 5.5V | 0.6V (2.5V) | 3V | 0.45V @ 2A | 2A | 300 µA | - | 60dB (100Hz ~ 1kHz) | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 8-PSOP |
|
AP2318ADN-ADJTRG1IC REG LINEAR POS ADJ 1A 8DFN |
1,712 |
|
Datasheet | - | 8-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 12V | 1.25V | 11.5V | 0.5V @ 1A (Typ) | 1A | 250 µA | - | - | Enable | Over Current, Over Temperature, Over Voltage | -40°C ~ 125°C | - | - | Surface Mount | 8-DFN (3x3) |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
